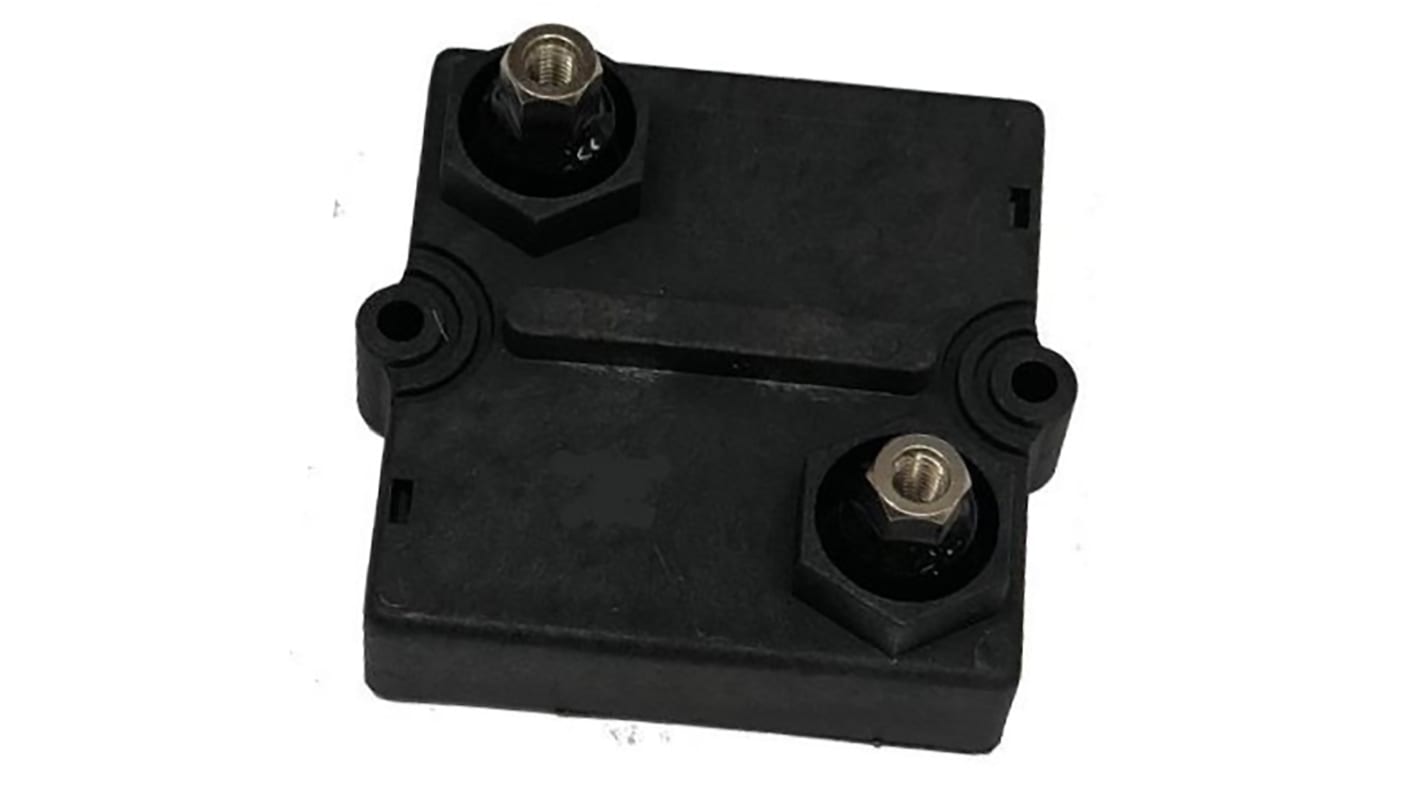

RS PRO, 2.5 Ω 2 kW Thick Film Chassis Mount Resistor ±10 %
- RS Stock No.:
- 185-3049
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£367.45
(exc. VAT)
£440.94
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 20 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 1 | £367.45 |
| 2 - 4 | £352.78 |
| 5 + | £327.04 |
*price indicative
- RS Stock No.:
- 185-3049
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Chassis Mount Resistor | |
| Resistance | 2.5Ω | |
| Power Rating | 2kW | |
| Series | RSPR2K | |
| Package/Case | Planar | |
| Temperature Coefficient | +150 ppm/°C | |
| Tolerance | ±10 % | |
| Automotive Standard | No | |
| Technology | Thick Film | |
| Termination Style | Screw | |
| Overall Length | 60mm | |
| Minimum Operating Temperature | -55°C | |
| Maximum Operating Temperature | 150°C | |
| Overall Width | 65mm | |
| Standards/Approvals | RoHS | |
| Overall Height | 15mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Chassis Mount Resistor | ||
Resistance 2.5Ω | ||
Power Rating 2kW | ||
Series RSPR2K | ||
Package/Case Planar | ||
Temperature Coefficient +150 ppm/°C | ||
Tolerance ±10 % | ||
Automotive Standard No | ||
Technology Thick Film | ||
Termination Style Screw | ||
Overall Length 60mm | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature 150°C | ||
Overall Width 65mm | ||
Standards/Approvals RoHS | ||
Overall Height 15mm | ||
- COO (Country of Origin):
- AT
RS PRO Screw Termination Thick Film Panel Mount Resistor, 2.5 Ω ±10% 2 kW
This reliable panel-mounting resistor from RS PRO has a power rating of 2 kW, so it's a good choice for high-power circuits. It works well from -55°C to +150°C, so you can use it in industrial environments that are exposed to extreme cold or heat.
The product is made using thick-film technology, so it's compact, reliable and resistant to heat, shock and corrosion. Its screw terminal makes it quick and easy to mount to your panel. You'll find resistors like this one used in power supplies, control devices and robotics.
This product meets Restriction of Hazardous Substances (RoHS) requirements, so it contains only minimal levels of any harmful substances. It also complies with electrostatic control standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007, so you can rest assured it's safe to use.
Features and Benefits
• Maximum operating temperature of +150ºC
• Maximum temperature coefficient of +150 ppm/ºC
• Minimum operating temperature of -55ºC
• Minimum temperature coefficient of -150 ppm/ºC
• Overall height of 15 mm
• Overall length of 60 mm
• Overall width of 65 mm
• Planar package/case
• Power rating of 2 kW
• Resistance of 2.5 Ω
• Thick film technology
• Screw termination style
• Tolerance of ±10%
