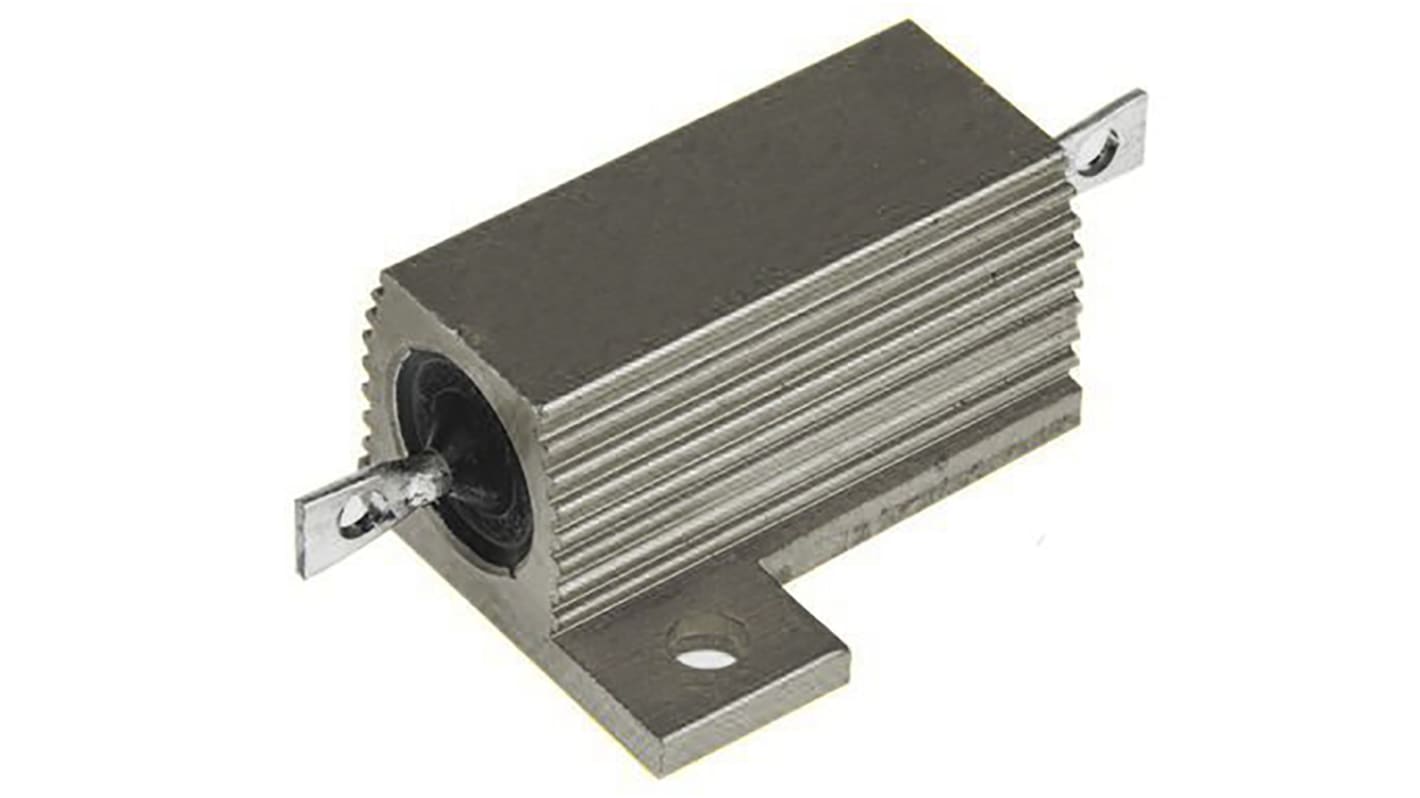

RS PRO, 220Ω 75W Aluminium Chassis Mount Resistor ±5%
- RS Stock No.:
- 175-4159
- Brand:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
£9.20
(exc. VAT)
£11.04
(inc. VAT)
FREE delivery for orders over £50.00
Being discontinued
- Final 48 unit(s), ready to ship
Units | Per unit |
|---|---|
| 1 - 24 | £9.20 |
| 25 - 49 | £8.55 |
| 50 - 99 | £7.72 |
| 100 - 249 | £7.17 |
| 250 + | £6.53 |
*price indicative
- RS Stock No.:
- 175-4159
- Brand:
- RS PRO
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Resistance | 220Ω | |
| Power Rating | 75W | |
| Package/Case | Aluminium Housed | |
| Tolerance | ±5% | |
| Technology | Aluminium | |
| Maximum Operating Temperature | +200°C | |
| Dimensions | 48.7 x 47.5 x 24.1mm | |
| Overall Width | 47.5mm | |
| Overall Height | 24.1mm | |
| Overall Length | 48.7mm | |
Select all | ||
|---|---|---|
Brand RS PRO | ||
Resistance 220Ω | ||
Power Rating 75W | ||
Package/Case Aluminium Housed | ||
Tolerance ±5% | ||
Technology Aluminium | ||
Maximum Operating Temperature +200°C | ||
Dimensions 48.7 x 47.5 x 24.1mm | ||
Overall Width 47.5mm | ||
Overall Height 24.1mm | ||
Overall Length 48.7mm | ||
- COO (Country of Origin):
- GB
Designed for direct heatsink mounting with thermal compound to achieve maximum performance.
High Power to Volume
Wound to maximize High Pulse Capability
Values from R01 to 50K
Wound to maximize High Pulse Capability
Values from R01 to 50K
