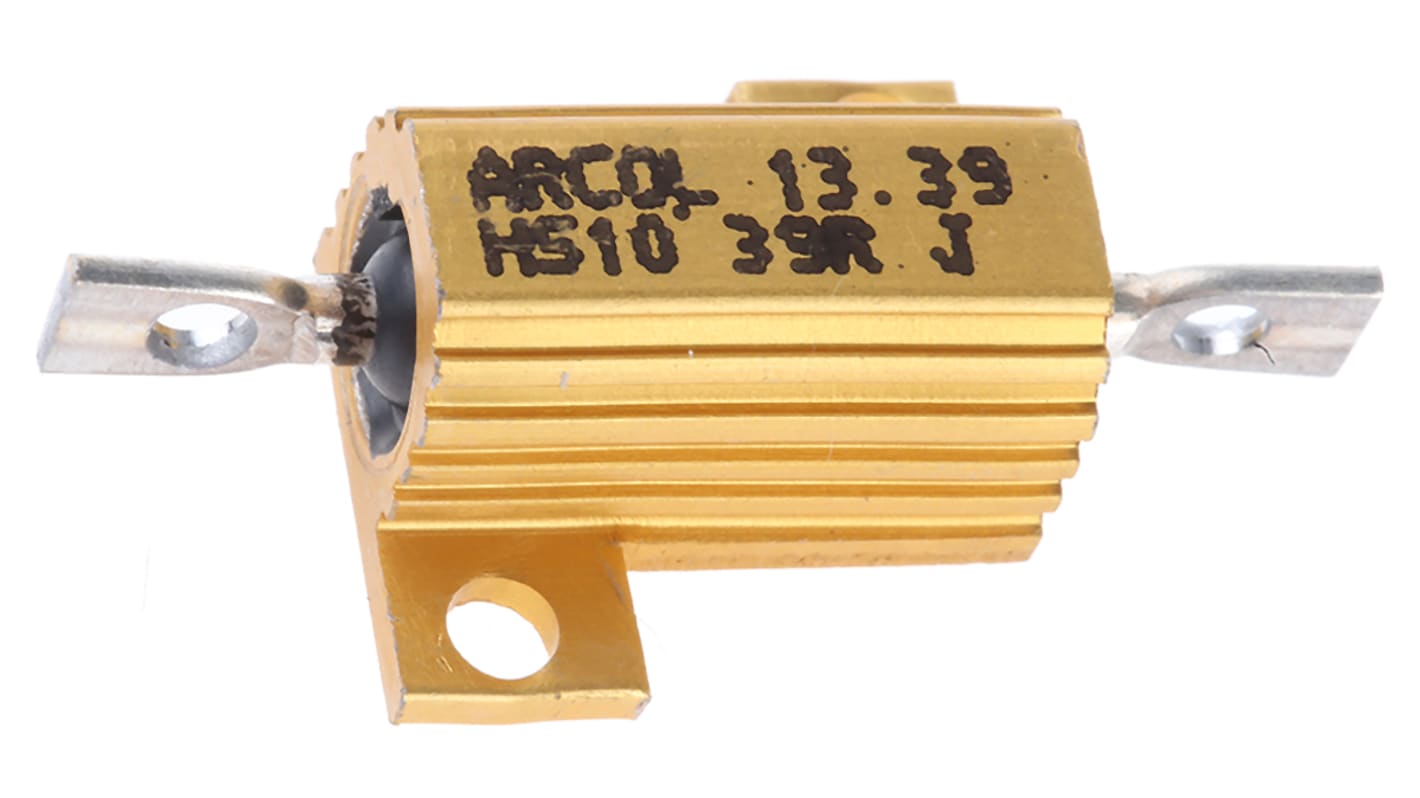

Arcol, 39Ω 10W Wire Wound Chassis Mount Resistor HS10 39R J ±5%
- RS Stock No.:
- 166-4130
- Mfr. Part No.:
- HS10 39R J
- Brand:
- Arcol
Bulk discount available
Subtotal (1 bag of 100 units)*
£266.80
(exc. VAT)
£320.20
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 100 unit(s) shipping from 10 December 2025
- Plus 400 unit(s) shipping from 31 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
---|---|---|
100 - 100 | £2.668 | £266.80 |
200 + | £2.433 | £243.30 |
*price indicative
- RS Stock No.:
- 166-4130
- Mfr. Part No.:
- HS10 39R J
- Brand:
- Arcol
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Arcol | |
Resistance | 39Ω | |
Power Rating | 10W | |
Series | HS10 | |
Package/Case | Aluminium Housed | |
Tolerance | ±5% | |
Technology | Wire Wound | |
Termination Style | Axial | |
Minimum Operating Temperature | -55°C | |
Maximum Operating Temperature | +200°C | |
Minimum Temperature Coefficient | -100ppm/°C | |
Maximum Temperature Coefficient | +100ppm/°C | |
Dimensions | 8.8 x 30 x 16.5mm | |
Overall Length | 30mm | |
Overall Height | 8.8mm | |
Overall Width | 16.5mm | |
Select all | ||
---|---|---|
Brand Arcol | ||
Resistance 39Ω | ||
Power Rating 10W | ||
Series HS10 | ||
Package/Case Aluminium Housed | ||
Tolerance ±5% | ||
Technology Wire Wound | ||
Termination Style Axial | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +200°C | ||
Minimum Temperature Coefficient -100ppm/°C | ||
Maximum Temperature Coefficient +100ppm/°C | ||
Dimensions 8.8 x 30 x 16.5mm | ||
Overall Length 30mm | ||
Overall Height 8.8mm | ||
Overall Width 16.5mm | ||
- COO (Country of Origin):
- GB
10W Aluminium housed wirewound power resistor, HS Series
10Watt Aluminium housed power resistors which are manufactured to be compliant with the requirements of a MIL 18546, IEC 115 and are RoHS compliant.
Compact size for Power rating
Winding construction maximises High Pulse Capability
Winding construction maximises High Pulse Capability
Note
To achieve the given maximum performance rating of this power resistor, it is designed to be directly mounted on an appropriately matched heatsink and mounted using a thermal compound.
