Arcol, 47Ω 50W Aluminium Chassis Mount Resistor HS50 47R F ±1%
- RS Stock No.:
- 162-3440
- Mfr. Part No.:
- HS50 47R F
- Brand:
- Arcol
Bulk discount available
Subtotal (1 bag of 20 units)*
£69.06
(exc. VAT)
£82.88
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 860 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 20 - 80 | £3.453 | £69.06 |
| 100 - 180 | £3.212 | £64.24 |
| 200 - 280 | £3.004 | £60.08 |
| 300 - 380 | £2.797 | £55.94 |
| 400 + | £2.486 | £49.72 |
*price indicative
- RS Stock No.:
- 162-3440
- Mfr. Part No.:
- HS50 47R F
- Brand:
- Arcol
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Arcol | |
| Resistance | 47Ω | |
| Power Rating | 50W | |
| Series | HS50 | |
| Package/Case | Aluminium Housed | |
| Tolerance | ±1% | |
| Technology | Aluminium | |
| Termination Style | Axial | |
| Minimum Temperature Coefficient | -100ppm/°C | |
| Maximum Temperature Coefficient | +100ppm/°C | |
| Dimensions | 49.1 x 28 x 14.8mm | |
| Overall Length | 49.1mm | |
| Overall Width | 28mm | |
| Overall Height | 14.8mm | |
Select all | ||
|---|---|---|
Brand Arcol | ||
Resistance 47Ω | ||
Power Rating 50W | ||
Series HS50 | ||
Package/Case Aluminium Housed | ||
Tolerance ±1% | ||
Technology Aluminium | ||
Termination Style Axial | ||
Minimum Temperature Coefficient -100ppm/°C | ||
Maximum Temperature Coefficient +100ppm/°C | ||
Dimensions 49.1 x 28 x 14.8mm | ||
Overall Length 49.1mm | ||
Overall Width 28mm | ||
Overall Height 14.8mm | ||
- COO (Country of Origin):
- GB

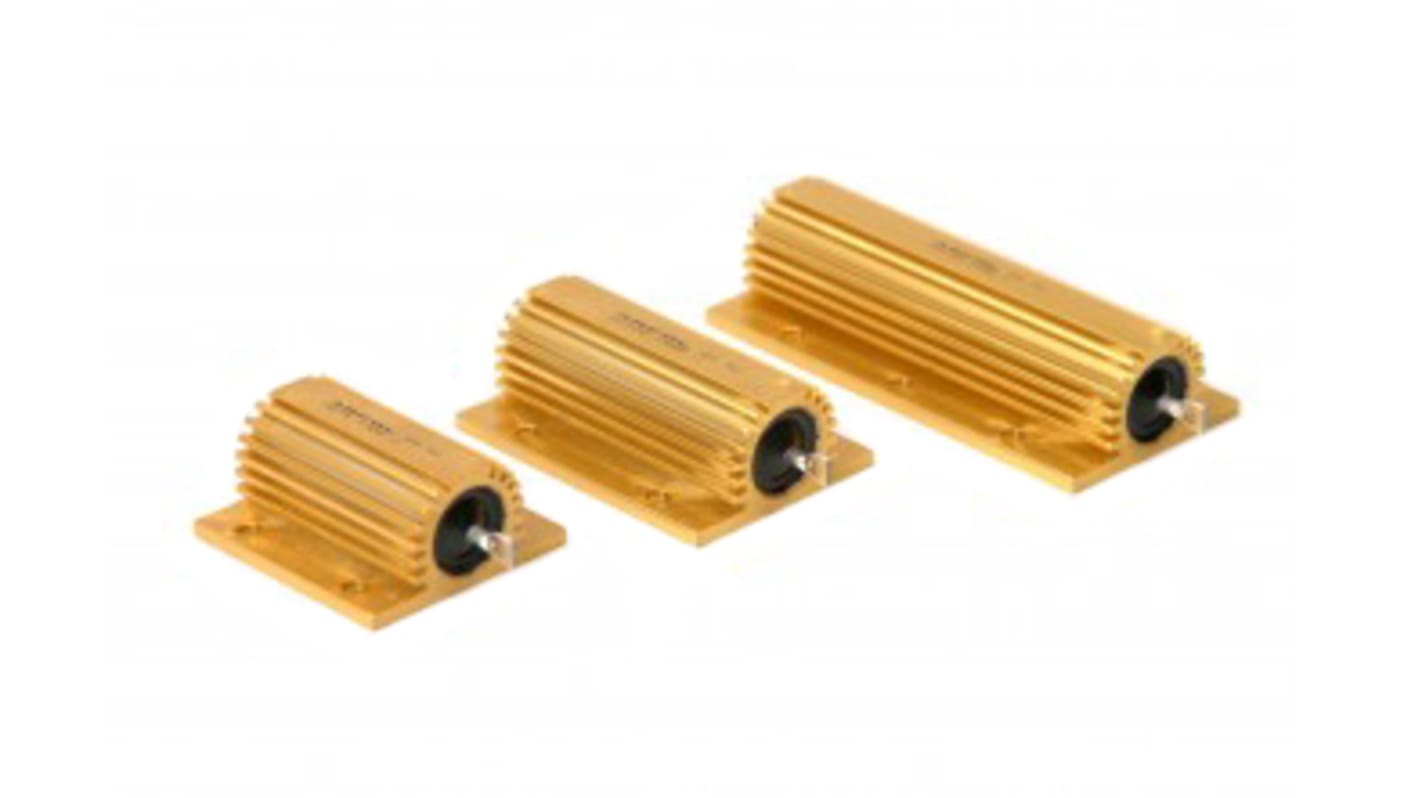

50 watt aluminium housed power resistor. Designed for direct heatsink mounting with thermal compound to achieve maximum performance.
Designed for direct heatsink mounting with thermal compound to achieve maximum performance.
High Power to volume
Wound to maximise High Pulse Capability
Values from R005 to 100K
Wound to maximise High Pulse Capability
Values from R005 to 100K
