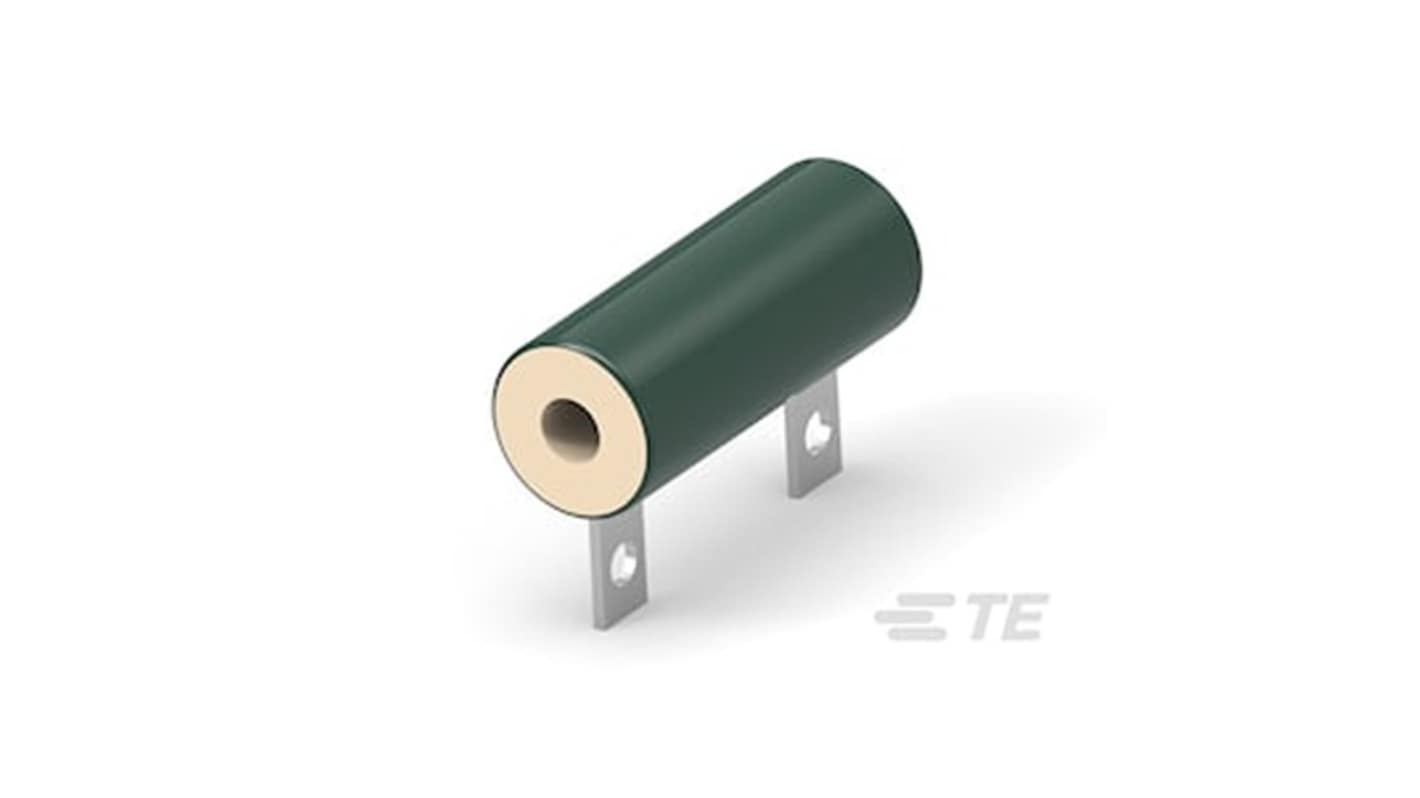

TE Connectivity 70W Wire Wound Chassis Mount Resistor 2176723-7 5%
- RS Stock No.:
- 338-848
- Mfr. Part No.:
- 2176723-7
- Brand:
- TE Connectivity
Subtotal (1 box of 25 units)*
£879.125
(exc. VAT)
£1,054.95
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 20 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
---|---|---|
25 + | £35.165 | £879.13 |
*price indicative
- RS Stock No.:
- 338-848
- Mfr. Part No.:
- 2176723-7
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | TE Connectivity | |
Power Rating | 70W | |
Series | CGS VE | |
Package/Case | Box | |
Tolerance | 5% | |
Technology | Wire Wound | |
Termination Style | Solder Lug | |
Minimum Operating Temperature | -55°C | |
Maximum Operating Temperature | +300°C | |
Minimum Temperature Coefficient | -120ppm/°C | |
Maximum Temperature Coefficient | 120ppm/°C | |
Dimensions | 76.2 x 23 x 23mm | |
Overall Width | 23mm | |
Overall Height | 23mm | |
Overall Length | 76.2mm | |
Select all | ||
---|---|---|
Brand TE Connectivity | ||
Power Rating 70W | ||
Series CGS VE | ||
Package/Case Box | ||
Tolerance 5% | ||
Technology Wire Wound | ||
Termination Style Solder Lug | ||
Minimum Operating Temperature -55°C | ||
Maximum Operating Temperature +300°C | ||
Minimum Temperature Coefficient -120ppm/°C | ||
Maximum Temperature Coefficient 120ppm/°C | ||
Dimensions 76.2 x 23 x 23mm | ||
Overall Width 23mm | ||
Overall Height 23mm | ||
Overall Length 76.2mm | ||
- COO (Country of Origin):
- IN
The TE Connectivity Power Resistor is a chassis mount resistor specifically designed for high performance and durability in a wide range of applications. It features a wire wound element type that ensures precise resistance and stable operation. With an operating temperature range of -55°C to 300°C, it is well suited for both extreme cold and high heat environments. The resistor includes two terminations with solder lug connections, allowing for secure and straightforward mounting. It offers a resistance tolerance of ±5% and a temperature coefficient of ±120 ppm/°C, ensuring reliable and consistent performance across varying thermal conditions.
70 W power rated
Solder lug termination
Mounting brackets used for mounting on panel
EU RoHS compliant
EU ELV compliant
Solder lug termination
Mounting brackets used for mounting on panel
EU RoHS compliant
EU ELV compliant
