Eaton, 3P + N 90° On-Off Cam Switch, 690V (Volts), 40A, Door Coupling Rotary Drive Actuator
- RS Stock No.:
- 273-6482
- Mfr. Part No.:
- 199911 P1-40/I2/SVB/N
- Brand:
- Eaton
Subtotal (1 unit)*
£109.78
(exc. VAT)
£131.74
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 2 unit(s) shipping from 01 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £109.78 |
*price indicative
- RS Stock No.:
- 273-6482
- Mfr. Part No.:
- 199911 P1-40/I2/SVB/N
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Pole and Throw Configuration | 3P + N | |
Cam Switch Type | On-Off Cam Switch | |
Maximum Current | 40A | |
Maximum Voltage | 690V (Volts) | |
Angle of Throw | 90° | |
Actuator Type | Door Coupling Rotary Drive | |
Select all | ||
---|---|---|
Brand Eaton | ||
Pole and Throw Configuration 3P + N | ||
Cam Switch Type On-Off Cam Switch | ||
Maximum Current 40A | ||
Maximum Voltage 690V (Volts) | ||
Angle of Throw 90° | ||
Actuator Type Door Coupling Rotary Drive | ||
- COO (Country of Origin):
- GB

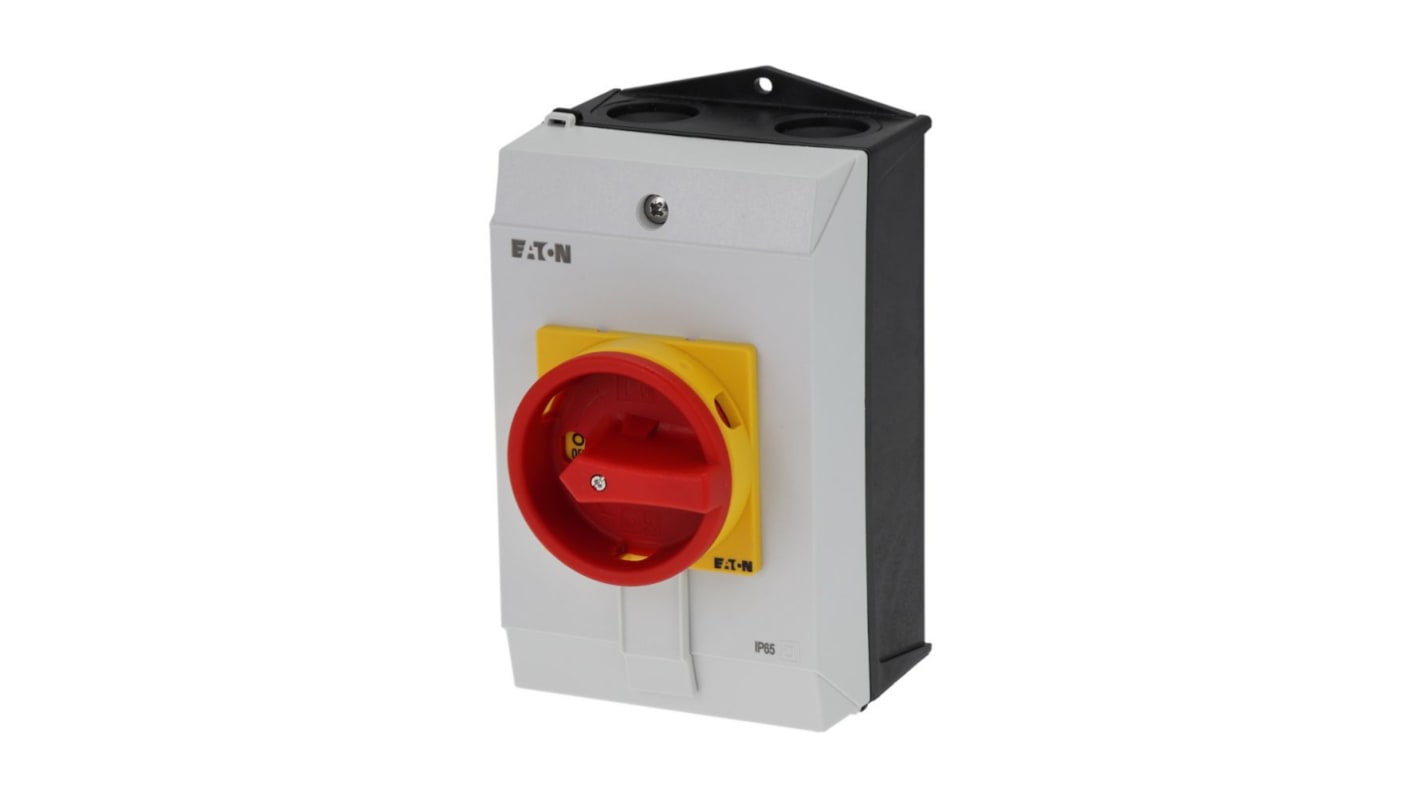

Eaton Cam Switch, 3P + N Pole and Throw Configuration, 40A Maximum Current - 199911 P1-40/I2/SVB/N
This cam switch is designed for surface mounting and functions as a robust electrical switch. With dimensions of 115mm in length, 100mm in width, and 180mm in height, it is suitable for various industrial applications. This cam switch operates at a maximum current of 40A and a maximum voltage of 690V, making it an ideal choice for demanding environments.
Features & Benefits
• Emergency switching off function enhances safety measures
• Red rotary handle with yellow locking ring for easy operation
• Surface mounting design convenient for installation purposes
• Screw terminal connection ensures secure electrical contact
• Interlockable feature supports safe operational practices
• Rated short-time withstand current of 640A for reliability
• Red rotary handle with yellow locking ring for easy operation
• Surface mounting design convenient for installation purposes
• Screw terminal connection ensures secure electrical contact
• Interlockable feature supports safe operational practices
• Rated short-time withstand current of 640A for reliability
Applications
• Used in control panels for machinery where quick shutdown is crucial
• Used in HVAC systems for switching operations
• Utilised in automation equipment for precise control
• Adopted in electrical distribution boards for safety protocols
• Used in HVAC systems for switching operations
• Utilised in automation equipment for precise control
• Adopted in electrical distribution boards for safety protocols
What type of loads can be connected to this device?
This unit can handle various loads, including motors and heating systems, with operational currents rated at 40A for AC-21 and AC-23A classifications.
How does this switch perform in adverse conditions?
It operates effectively within an ambient temperature range of -25°C to 40°C, ensuring reliability in harsh environments.
What is the degree of protection for this switch?
This product has an IP65 rating, making it resistant to dust and water ingress, which is crucial for industrial applications.
Is additional wiring required for installation?
Yes, it supports terminal capacity for flexible cables ranging from 1mm² to 10mm² and requires screw connections for secure assembly.
What is the lifespan of the switching mechanism?
The switch is rated for mechanical operation up to 300,000 times, ensuring longevity in continuous service applications.
Note
Eaton formerly known as Moeller
