Eaton, 8P 90° On-Off Cam Switch, 690V (Volts), 32A, Door Coupling Rotary Drive Actuator
- RS Stock No.:
- 271-5348
- Mfr. Part No.:
- 207212 T3-4-8344/I2/SVB
- Brand:
- Eaton
Subtotal (1 unit)*
£113.00
(exc. VAT)
£135.60
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 10 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 + | £113.00 |
*price indicative
- RS Stock No.:
- 271-5348
- Mfr. Part No.:
- 207212 T3-4-8344/I2/SVB
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Eaton | |
Pole and Throw Configuration | 8P | |
Cam Switch Type | On-Off Cam Switch | |
Maximum Current | 32A | |
Maximum Voltage | 690V (Volts) | |
Angle of Throw | 90° | |
Actuator Type | Door Coupling Rotary Drive | |
Select all | ||
---|---|---|
Brand Eaton | ||
Pole and Throw Configuration 8P | ||
Cam Switch Type On-Off Cam Switch | ||
Maximum Current 32A | ||
Maximum Voltage 690V (Volts) | ||
Angle of Throw 90° | ||
Actuator Type Door Coupling Rotary Drive | ||
- COO (Country of Origin):
- GB

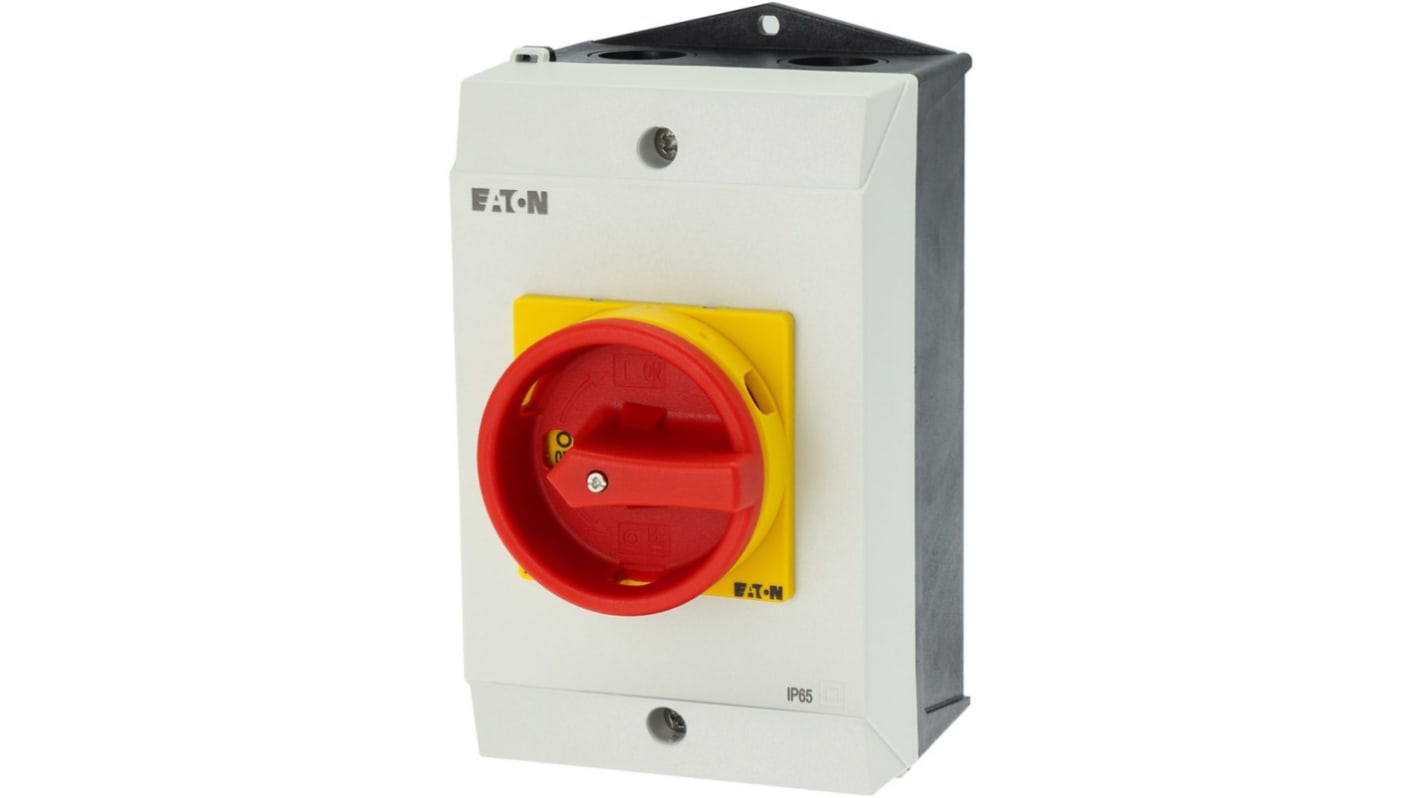

Eaton Cam Switch, 32A Maximum Current, 690V Maximum Voltage - 207212 T3-4-8344/I2/SVB
This cam switch is a robust, on-off control device designed for high-voltage applications. It accommodates a maximum current of 32A and a maximum voltage of 690V. The unit features surface mounting and compact dimensions of 206 x 106 x 135 mm, integrating seamlessly into various setups. With its easy-to-use door coupling rotary drive, this industrial cam switch ensures dependable operation in demanding environments.
Features & Benefits
• Fitted with a red rotary handle for easy operation
• Equipped with a yellow locking ring for enhanced safety
• Interlockable design prevents accidental activation
• Suitable for emergency stop installations for critical safety
• High durability with a mechanical lifespan of 500,000 operations
• Equipped with a yellow locking ring for enhanced safety
• Interlockable design prevents accidental activation
• Suitable for emergency stop installations for critical safety
• High durability with a mechanical lifespan of 500,000 operations
Applications
• Ideal for emergency shutdown systems in industrial settings
• Used for controlling machinery requiring frequent on-off switching
• Suitable for maintenance and service switching
• Can be used in factories and process control systems
• Used for controlling machinery requiring frequent on-off switching
• Suitable for maintenance and service switching
• Can be used in factories and process control systems
What is the maximum current and voltage for reliable operation?
The device operates at a maximum current of 32A and can handle voltages up to 690V, ensuring it meets the requirements for high-power applications.
How does this cam switch enhance safety during operation?
The switch is designed with a locking feature that secures it in the off position, preventing accidental activation, and it includes an emergency stop function for immediate disconnection in critical situations.
What is the recommended mounting method for installation?
This model is designed for surface mounting, allowing it to be installed easily in diverse applications and configurations as required by the users environment.
What are the temperature limits for safe operation of this device?
The cam switch can function effectively in ambient temperatures ranging from -25°C to 40°C, making it suitable for various operational conditions.
Note
Eaton formerly known as Moeller
