Eaton 90 °, Rotary Actuator 10 A
- RS Stock No.:
- 271-5574
- Mfr. Part No.:
- 045484 TM-2-8292/E/SVB
- Brand:
- Eaton
Subtotal (1 unit)*
£55.10
(exc. VAT)
£66.12
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 24 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £55.10 |
*price indicative
- RS Stock No.:
- 271-5574
- Mfr. Part No.:
- 045484 TM-2-8292/E/SVB
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Cam Switch | |
| Series | Eaton Moeller | |
| Mount Type | Flush | |
| Number of Poles | 3 | |
| Terminal Type | Screw | |
| Angle of Throw | 90 ° | |
| IP Rating | IP65 | |
| Contact Current | 10A | |
| Minimum Operating Temperature | -25°C | |
| Actuator Type | Rotary | |
| Contact Voltage | 500V | |
| Maximum Operating Temperature | 50°C | |
| Length | 89mm | |
| Standards/Approvals | VDE 0660, UL, IEC/EN 60947-3, IEC/EN 60947, CSA, CE | |
| Depth | 89mm | |
| Hazardous Area Certification | NO | |
| Width | 30mm | |
| Mechanical Life | 1000000Cycles | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Cam Switch | ||
Series Eaton Moeller | ||
Mount Type Flush | ||
Number of Poles 3 | ||
Terminal Type Screw | ||
Angle of Throw 90 ° | ||
IP Rating IP65 | ||
Contact Current 10A | ||
Minimum Operating Temperature -25°C | ||
Actuator Type Rotary | ||
Contact Voltage 500V | ||
Maximum Operating Temperature 50°C | ||
Length 89mm | ||
Standards/Approvals VDE 0660, UL, IEC/EN 60947-3, IEC/EN 60947, CSA, CE | ||
Depth 89mm | ||
Hazardous Area Certification NO | ||
Width 30mm | ||
Mechanical Life 1000000Cycles | ||

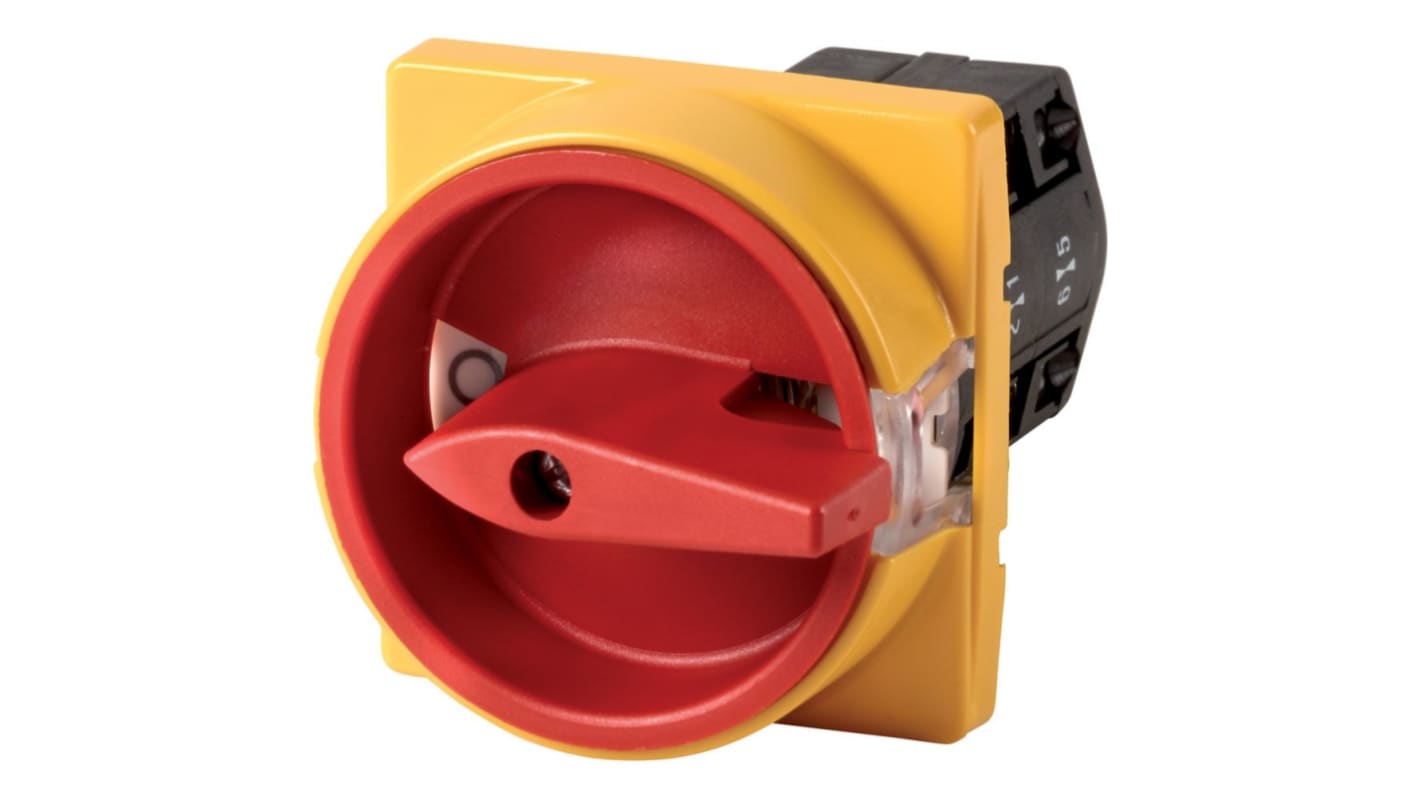

Control circuit isolator with red rotary handle and yellow locking ring, it also has STOP function.
Part group reference TM
Note
Eaton formerly known as Moeller
