Eaton 90 °, Rotary Actuator 10 A
- RS Stock No.:
- 271-5449
- Mfr. Part No.:
- 215353 TM-2-8293/E/SVB-SW
- Brand:
- Eaton
Subtotal (1 unit)*
£63.02
(exc. VAT)
£75.62
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 16 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £63.02 |
*price indicative
- RS Stock No.:
- 271-5449
- Mfr. Part No.:
- 215353 TM-2-8293/E/SVB-SW
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Cam Switch | |
| Series | Moeller | |
| Mount Type | Flush | |
| Number of Poles | 4 | |
| Terminal Type | Screw | |
| Angle of Throw | 90 ° | |
| IP Rating | IP65 | |
| Contact Current | 10A | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | 50°C | |
| Contact Voltage | 690V | |
| Actuator Type | Rotary | |
| Standards/Approvals | EN/IEC | |
| Width | 30mm | |
| Hazardous Area Certification | NO | |
| Depth | 89mm | |
| Length | 89mm | |
| Mechanical Life | 1000000Cycles | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Cam Switch | ||
Series Moeller | ||
Mount Type Flush | ||
Number of Poles 4 | ||
Terminal Type Screw | ||
Angle of Throw 90 ° | ||
IP Rating IP65 | ||
Contact Current 10A | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature 50°C | ||
Contact Voltage 690V | ||
Actuator Type Rotary | ||
Standards/Approvals EN/IEC | ||
Width 30mm | ||
Hazardous Area Certification NO | ||
Depth 89mm | ||
Length 89mm | ||
Mechanical Life 1000000Cycles | ||
- COO (Country of Origin):
- AT

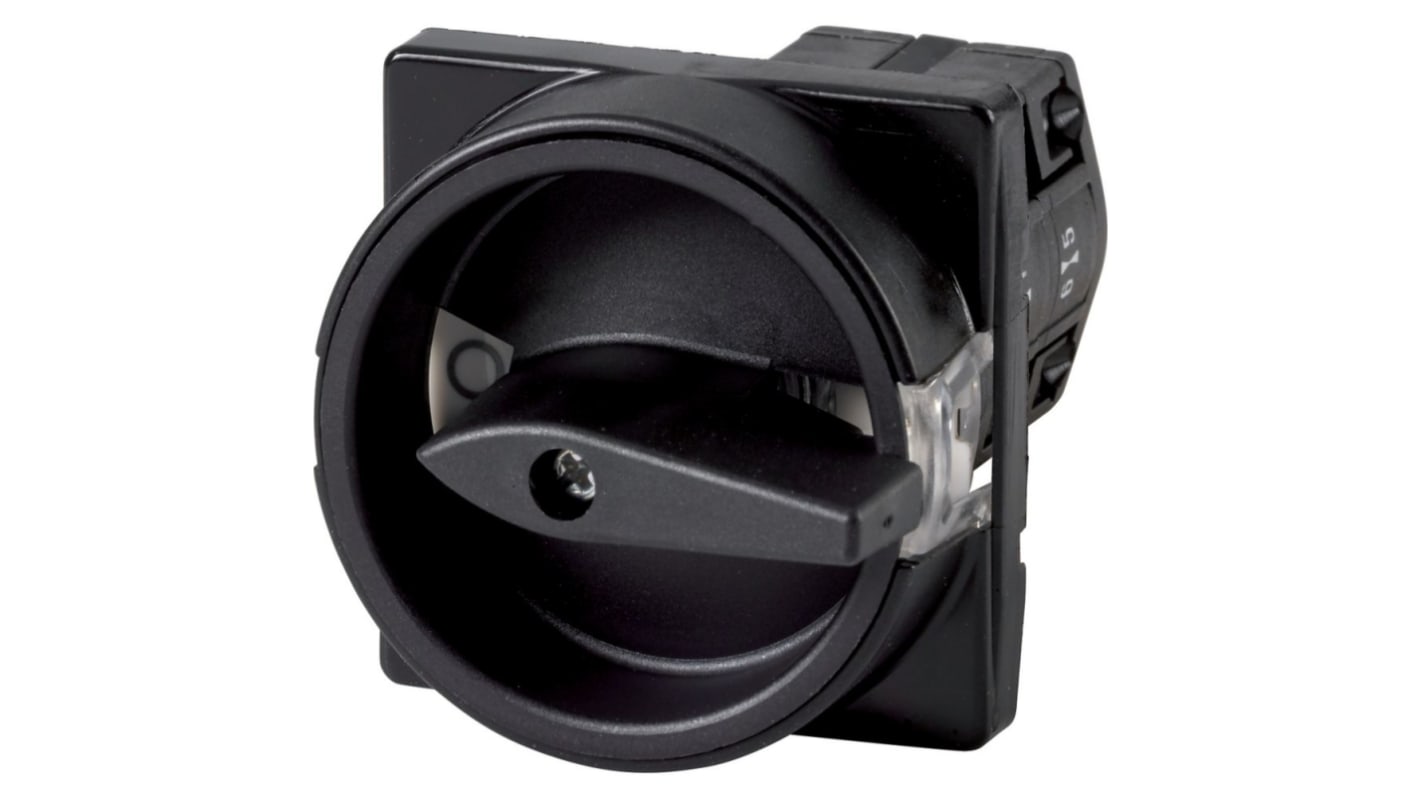

Control circuit isolator with black rotary handle and locking ring, it also has STOP function.
Part group reference TM
Note
Eaton formerly known as Moeller
