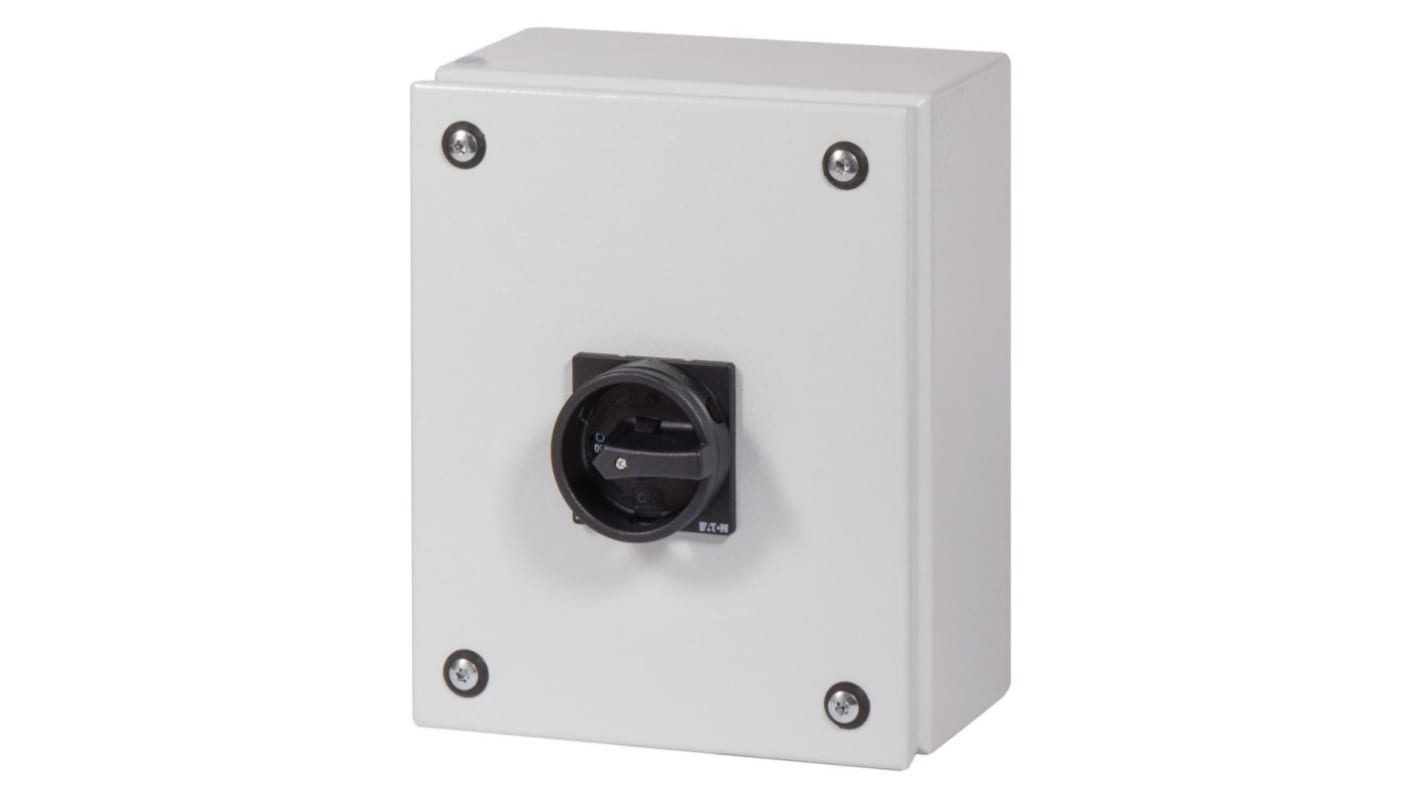

Eaton, 3P 3 Position 90° Rotary Cam Switch, 690V (Volts), 32A, Rotary Actuator
- RS Stock No.:
- 271-5231
- Mfr. Part No.:
- 197477 T3-3-15683/SE2/SVB-SW
- Brand:
- Eaton
Available to back order for despatch 10/09/2024
Price Each
£252.49
(exc. VAT)
£302.99
(inc. VAT)
Units | Per unit |
|---|---|
| 1 + | £252.49 |
- RS Stock No.:
- 271-5231
- Mfr. Part No.:
- 197477 T3-3-15683/SE2/SVB-SW
- Brand:
- Eaton
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- GB
Product Details
The Eaton Main switch can be used for many switching and control applications, for example as ON-OFF, main, main/control, or instrument switches. The device consists of a hand actuator, the switch unit and the mounting accessories.
Surface mounting
3 contact unit(s)
3 contact unit(s)
Specifications
Attribute | Value |
|---|---|
| Cam Switch Type | Rotary Cam Switch |
| Series | Eaton Moeller Series T3 |
| Pole and Throw Configuration | 3P |
| Normal State Configuration | 2NO/1NC |
| Maximum Current | 32A |
| Maximum Voltage | 690V (Volts) |
| Number of Positions | 3 |
| Angle of Throw | 90° |
| Actuator Type | Rotary |
