Lovato Electric 2 Position 60 °, Short Black Handle Actuator 16 A
- RS Stock No.:
- 248-5587
- Mfr. Part No.:
- GX1692U
- Brand:
- Lovato Electric
Subtotal (1 unit)*
£27.46
(exc. VAT)
£32.95
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 11 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £27.46 |
*price indicative
- RS Stock No.:
- 248-5587
- Mfr. Part No.:
- GX1692U
- Brand:
- Lovato Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lovato Electric | |
| Series | GX | |
| Product Type | Cam Switch | |
| Electrical Phase | 1, 3 | |
| Mount Type | Front | |
| Number of Positions | 2 | |
| Number of Poles | 3 | |
| Terminal Type | Screw | |
| Angle of Throw | 60 ° | |
| IP Rating | IP65, IP20 | |
| Contact Current | 16A | |
| Minimum Operating Temperature | -25°C | |
| Contact Voltage | 690V | |
| Actuator Type | Short Black Handle | |
| Maximum Operating Temperature | 55°C | |
| Length | 43mm | |
| Hazardous Area Certification | No | |
| Width | 26.5mm | |
| Standards/Approvals | IEC/EN/BS 60947-5-1, UL 508, IEC/EN/BS 60947-1 | |
| Depth | 26.5mm | |
| Mechanical Life | 1000000Cycles | |
| Select all | ||
|---|---|---|
Brand Lovato Electric | ||
Series GX | ||
Product Type Cam Switch | ||
Electrical Phase 1, 3 | ||
Mount Type Front | ||
Number of Positions 2 | ||
Number of Poles 3 | ||
Terminal Type Screw | ||
Angle of Throw 60 ° | ||
IP Rating IP65, IP20 | ||
Contact Current 16A | ||
Minimum Operating Temperature -25°C | ||
Contact Voltage 690V | ||
Actuator Type Short Black Handle | ||
Maximum Operating Temperature 55°C | ||
Length 43mm | ||
Hazardous Area Certification No | ||
Width 26.5mm | ||
Standards/Approvals IEC/EN/BS 60947-5-1, UL 508, IEC/EN/BS 60947-1 | ||
Depth 26.5mm | ||
Mechanical Life 1000000Cycles | ||

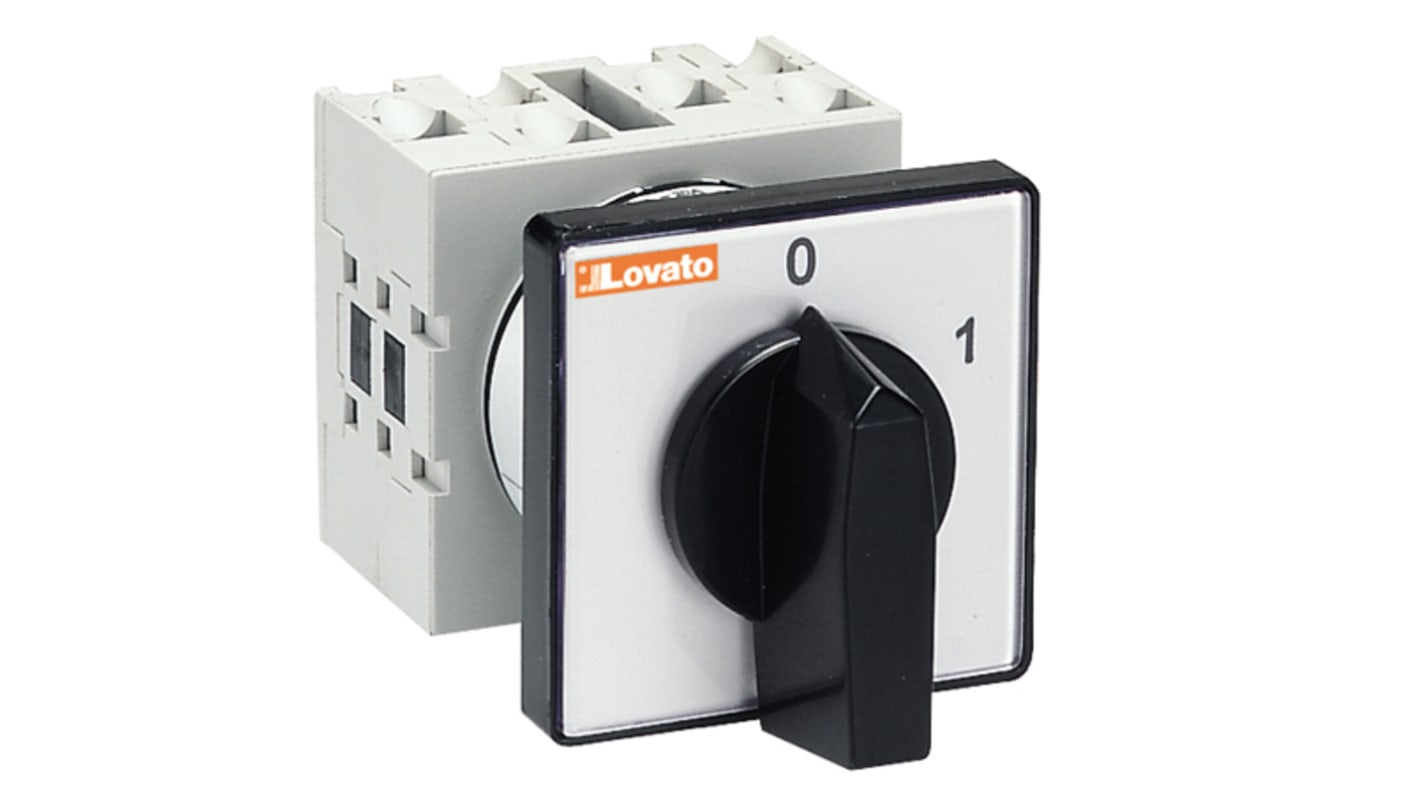

The Lovato product is a rotary cam ON OFF switch with 4 poles. It has front mounting with black handle.
Suitable for circuit connection, changeover, switching ON and OFF as well as motor starting
Square-shaped contact body
Possibility of side by side installation
IEC IP20 degree of protection of contacts
