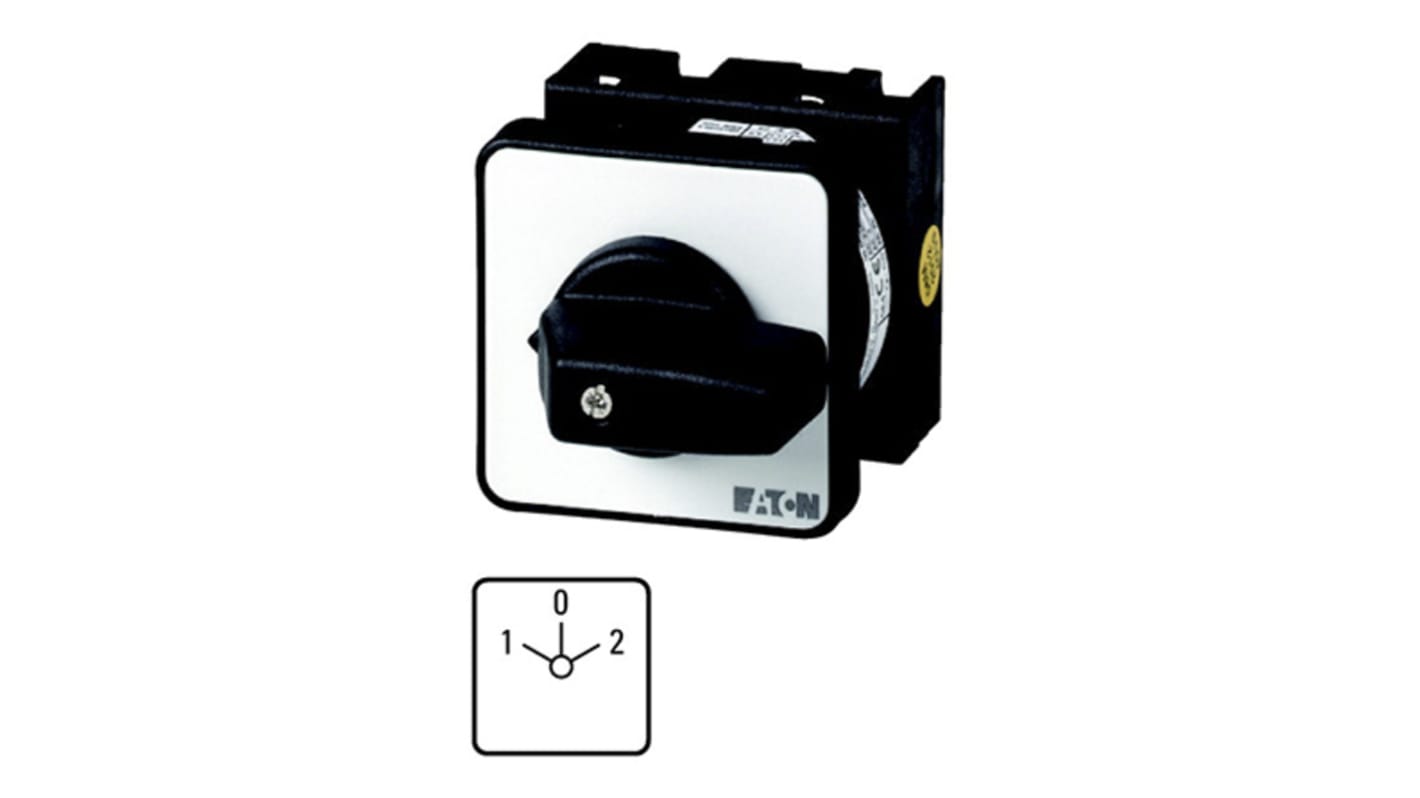

Eaton, 4PST 3 Position 60° Changeover Cam Switch, 690V ac, 20A, Rotary Actuator
- RS Stock No.:
- 103-8426
- Mfr. Part No.:
- 031726 T0-4-8213/E
- Brand:
- Eaton
Subtotal (1 unit)*
£43.91
(exc. VAT)
£52.69
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 7 unit(s) ready to ship
- Plus 3 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £43.91 |
*price indicative
- RS Stock No.:
- 103-8426
- Mfr. Part No.:
- 031726 T0-4-8213/E
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Pole and Throw Configuration | 4PST | |
| Cam Switch Type | Changeover Cam Switch | |
| Normal State Configuration | 4NO | |
| Electrical Phase | 1, 3 | |
| Maximum Current | 20A | |
| Maximum Voltage | 690V ac | |
| Number of Positions | 3 | |
| Terminal Type | Screw | |
| Angle of Throw | 60° | |
| Length | 48mm | |
| Width | 109mm | |
| Depth | 48mm | |
| Actuator Type | Rotary | |
| Dimensions | 48 x 109 x 48mm | |
Select all | ||
|---|---|---|
Brand Eaton | ||
Pole and Throw Configuration 4PST | ||
Cam Switch Type Changeover Cam Switch | ||
Normal State Configuration 4NO | ||
Electrical Phase 1, 3 | ||
Maximum Current 20A | ||
Maximum Voltage 690V ac | ||
Number of Positions 3 | ||
Terminal Type Screw | ||
Angle of Throw 60° | ||
Length 48mm | ||
Width 109mm | ||
Depth 48mm | ||
Actuator Type Rotary | ||
Dimensions 48 x 109 x 48mm | ||
- COO (Country of Origin):
- GB
Changeover (CO) Switches
Professional range of Eaton flush and centre-mounted changeover switches. All the changeover switches are IP65 rated and have an option of either 2, 4,6 or 8 auxiliary contacts. The control switches are available with either a 45, 60 or 90° switching angle.
IP65 rated
2, 4, 6 or 8 auxilliary contacts
Centre or Flush mounting available
45, 60 or 90° switching angle
2, 4, 6 or 8 auxilliary contacts
Centre or Flush mounting available
45, 60 or 90° switching angle
Eaton Changeover Switch, 20A Current Rating, 690V AC Voltage Rating - 031726 T0-4-8213/E
Shift between power loads in your electromechanical devices with this changeover switch from Eaton. It has both 1-phase and 3-phase capabilities, so it's suitable for use in domestic and industrial settings. Its 4-pole configuration lets you control four circuits simultaneously, making it useful in compact set-ups. This switch is easy to install without the need for complex tools thanks to its screw termination method. Its voltage rating of 690V AC means you can use this changeover switch in high-voltage AC applications such as construction and agricultural equipment.
• Current rating of 20A for use with high-power industrial equipment
• Compact dimensions of 48 (H) x 109 (D) x 48mm (W) for use in set-ups with limited space
• Impulse withstand voltage of 6,000V AC means it can resist sudden power spikes for improved electrical safety
• IP65 rating means it's protected from dust and withstands low-pressure water jets
• Compact dimensions of 48 (H) x 109 (D) x 48mm (W) for use in set-ups with limited space
• Impulse withstand voltage of 6,000V AC means it can resist sudden power spikes for improved electrical safety
• IP65 rating means it's protected from dust and withstands low-pressure water jets
What wire size can be used with this switch?
This switch can accommodate wire sizes ranging from 18 to 12AWG, making it a versatile choice.
Note
Eaton formerly known as Moeller
