Schneider Electric 45 °, Handle Actuator 20 A
- RS Stock No.:
- 347-076
- Mfr. Part No.:
- K2F003ULH
- Brand:
- Schneider Electric
Subtotal (1 unit)*
£61.37
(exc. VAT)
£73.64
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 06 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £61.37 |
*price indicative
- RS Stock No.:
- 347-076
- Mfr. Part No.:
- K2F003ULH
- Brand:
- Schneider Electric
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Series | Harmony | |
| Product Type | Cam Switch | |
| Electrical Phase | 1, 3 | |
| Number of Poles | 3 | |
| Angle of Throw | 45 ° | |
| IP Rating | IP40 | |
| Minimum Operating Temperature | -25°C | |
| Contact Current | 20A | |
| Actuator Type | Handle | |
| Maximum Operating Temperature | 55°C | |
| Length | 35mm | |
| Width | 45mm | |
| Hazardous Area Certification | NO | |
| Depth | 97mm | |
| Standards/Approvals | IEC 60947-3, IEC 60947-5-1, CENELEC EN 50013 | |
| Mechanical Life | 1000000Cycles | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Series Harmony | ||
Product Type Cam Switch | ||
Electrical Phase 1, 3 | ||
Number of Poles 3 | ||
Angle of Throw 45 ° | ||
IP Rating IP40 | ||
Minimum Operating Temperature -25°C | ||
Contact Current 20A | ||
Actuator Type Handle | ||
Maximum Operating Temperature 55°C | ||
Length 35mm | ||
Width 45mm | ||
Hazardous Area Certification NO | ||
Depth 97mm | ||
Standards/Approvals IEC 60947-3, IEC 60947-5-1, CENELEC EN 50013 | ||
Mechanical Life 1000000Cycles | ||
- COO (Country of Origin):
- CZ

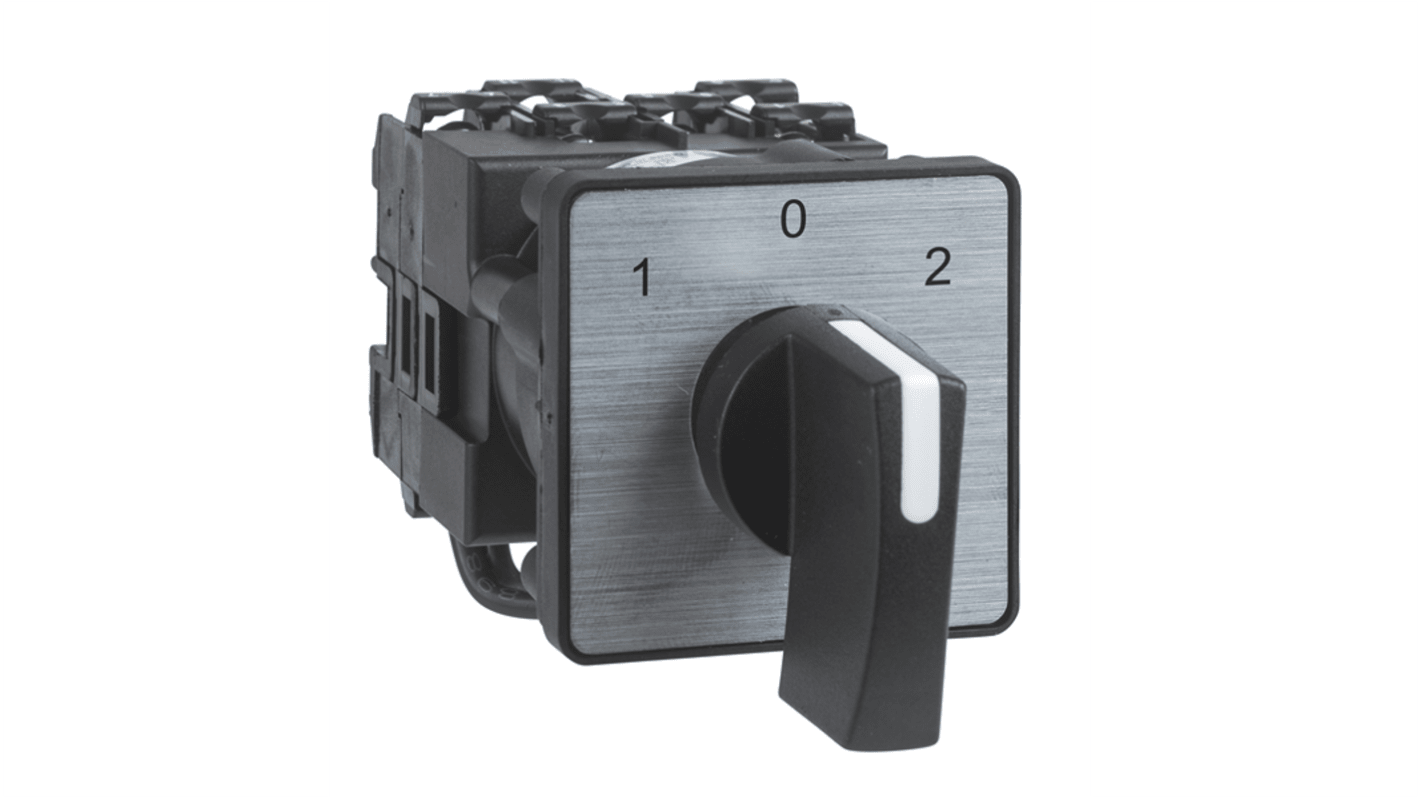

The Schneider Electric Harmony K2 complete cam switch has 3 poles. It also has a rating of 20A, a screw clamp mounting mode and a metallic color with black marking. This metal head complete cam switch is designed to meet most industrial and process control application thanks to a compact size, an easy integration with 16mm and 22mm diameter units and has several selection functions. It has a 45 degree between its switching positions.
Mercury free
RoHS compliant
Toxic heavy metal free
