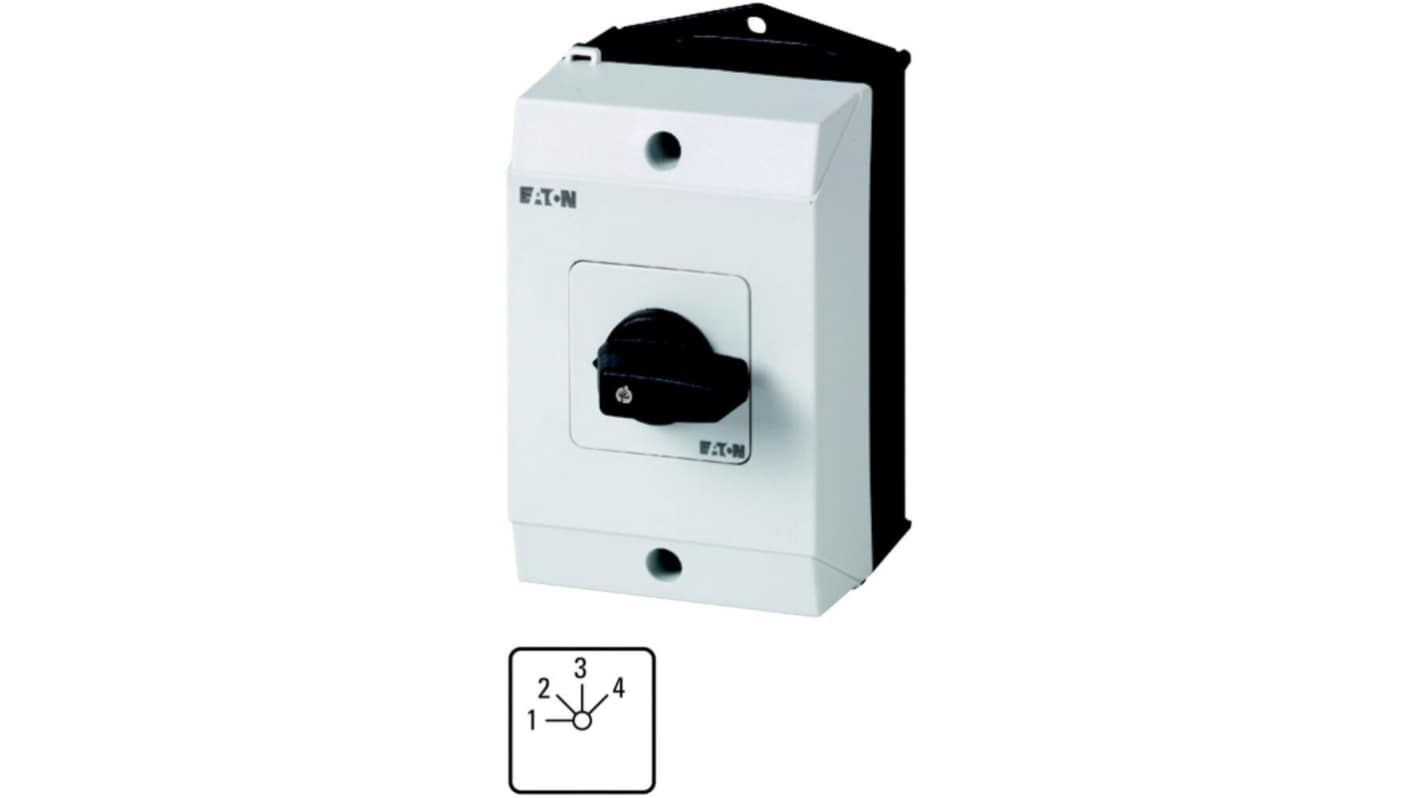

Eaton 4 Position 45 °, Toggle Actuator 20 A
- RS Stock No.:
- 255-116
- Mfr. Part No.:
- 222482 T0-4-15138/I1
- Brand:
- Eaton
Subtotal (1 unit)*
£85.04
(exc. VAT)
£102.05
(inc. VAT)
FREE delivery for orders over £60.00
Stocked by manufacturer
- Ready to ship from 16 October 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £85.04 |
*price indicative
- RS Stock No.:
- 255-116
- Mfr. Part No.:
- 222482 T0-4-15138/I1
- Brand:
- Eaton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Eaton | |
| Product Type | Cam Switch | |
| Series | T0 | |
| Number of Positions | 4 | |
| Mount Type | Surface | |
| Terminal Type | Screw | |
| Number of Poles | 4 | |
| Angle of Throw | 45 ° | |
| IP Rating | IP65 | |
| Contact Current | 20A | |
| Minimum Operating Temperature | -25°C | |
| Contact Voltage | 690V ac | |
| Actuator Type | Toggle | |
| Maximum Operating Temperature | 40°C | |
| Hazardous Area Certification | No | |
| Standards/Approvals | VDE, IEC/EN 60947-3, IEC/EN 60947, IEC/EN 60204, VDE 0660 | |
| Width | 8mm | |
| Length | 137mm | |
| Depth | 102mm | |
| Mechanical Life | 400000Operations | |
| Select all | ||
|---|---|---|
Brand Eaton | ||
Product Type Cam Switch | ||
Series T0 | ||
Number of Positions 4 | ||
Mount Type Surface | ||
Terminal Type Screw | ||
Number of Poles 4 | ||
Angle of Throw 45 ° | ||
IP Rating IP65 | ||
Contact Current 20A | ||
Minimum Operating Temperature -25°C | ||
Contact Voltage 690V ac | ||
Actuator Type Toggle | ||
Maximum Operating Temperature 40°C | ||
Hazardous Area Certification No | ||
Standards/Approvals VDE, IEC/EN 60947-3, IEC/EN 60947, IEC/EN 60204, VDE 0660 | ||
Width 8mm | ||
Length 137mm | ||
Depth 102mm | ||
Mechanical Life 400000Operations | ||
RoHS Status: Exempt
- COO (Country of Origin):
- GB
The Eaton Moeller series T0 Step switch stands as an ideal solution for efficient control functions in your electrical installations. Its robust design features a surface-mounted configuration with a toggle actuator, designed for seamless operation across a variety of industrial applications. This step switch is meticulously engineered to ensure reliability and safety, aligned with international standards. Thanks to its high short-circuit rating and defined operational parameters, it offers excellent performance even in demanding environments, making it suitable for diverse operational requirements. Crafted for corrosion resistance and featuring a pollution degree of three, this switch operates effectively within a wide temperature range, thus ensuring longevity and durability. Ideal for precise control in your electrical systems, The Eaton T0 Step switch embodies innovation and excellence.
Surface mounting design allows for easy installation in various configurations
Designed for high operational reliability with a proven history in industrial applications
Toggle actuator enhances user experience with intuitive operation
Built to perform in high humidity and temperature fluctuations for steadfast performance
Complies with several international standards, ensuring harmonious integration into existing systems
High degree of protection IP65 safeguards against dust and moisture ingress
