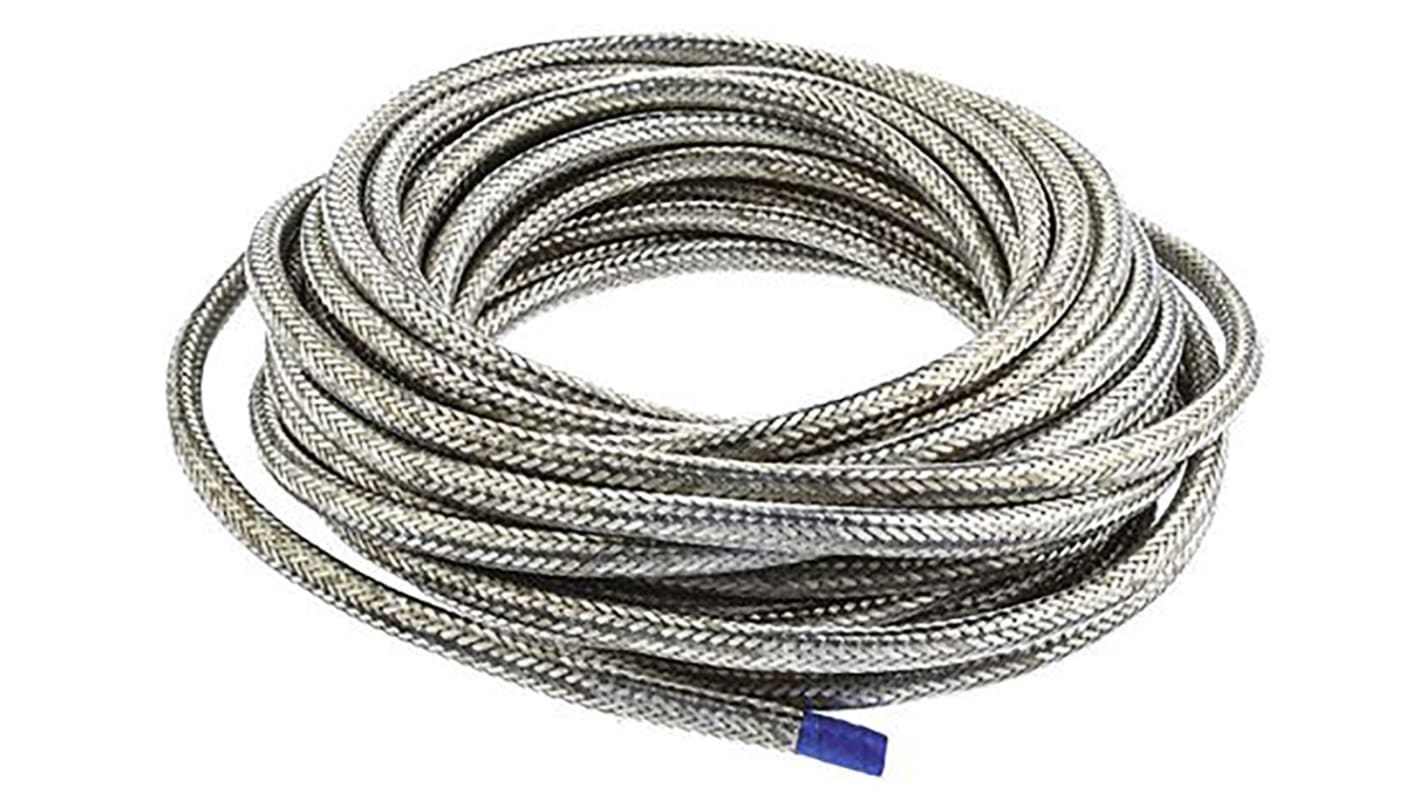

TE Connectivity Expandable Braided Nickel Plated Copper Alloy Cable Sleeve, 7.5mm Diameter, 10m Length, RayBraid Series
- RS Stock No.:
- 887-2850
- Mfr. Part No.:
- RAY-103-7.5(10)
- Brand:
- TE Connectivity
50 In stock - FREE next working day delivery available
Added
Price Each
£27.53
(exc. VAT)
£33.04
(inc. VAT)
Units | Per unit | Per Reel* |
10 - 140 | £27.53 | £275.30 |
150 - 490 | £25.521 | £255.21 |
500 + | £24.282 | £242.82 |
*price indicative |
- RS Stock No.:
- 887-2850
- Mfr. Part No.:
- RAY-103-7.5(10)
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
RoHS Status: Not Applicable
- COO (Country of Origin):
- GB
Product Details
Raybraid Plated Copper Braid
Braided sleeving designed for the electrical screening of wire bundles, protecting them against interference and physical damage. Raybraid is supplied on a tube former which facilitates assembly and is more robust than braid supplied in flattened form. The Ray-101 range has a tinned copper screen and Ray-103 has a nickel plated copper screen for use in harsh environments and in high temperatures.
Features and benefits
• Provides EMC screen for wires and cables
• Easy removal from PVC former
• Min. 93%, max. 100% optical coverage
• Highly usable expansion ratio (min 2:1)
• Tin-plated copper or Nickel-plated copper sleeving available
• Available in a wide range of sizes to cover 2.5 to 40mm diameters
Specifications
Attribute | Value |
---|---|
Sleeve Diameter | 7.5mm |
Material | Nickel Plated Copper Alloy |
Sleeve Length | 10m |
Braided | Yes |
Expandable | Yes |
Minimum Cable Diameter | 7mm |
Maximum Cable Diameter | 14mm |
Shielded | Yes |
Standards Met | WSD 1922 (Performance Standard) |
Series | RayBraid |
