HellermannTyton Braided PP Silver Cable Sleeve, 16mm Diameter, 25m Length, Helawrap HWPP Series
- RS Stock No.:
- 829-9012
- Mfr. Part No.:
- 161-64203 HWPP16-PP-SR
- Brand:
- HellermannTyton
Bulk discount available
Subtotal (1 reel of 25 metres)*
£70.94
(exc. VAT)
£85.13
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 12 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
---|---|---|
1 - 14 | £70.94 | £2.838 |
15 - 49 | £67.39 | £2.696 |
50 + | £65.26 | £2.61 |
*price indicative
- RS Stock No.:
- 829-9012
- Mfr. Part No.:
- 161-64203 HWPP16-PP-SR
- Brand:
- HellermannTyton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | HellermannTyton | |
Sleeve Diameter | 16mm | |
Colour | Silver | |
Material | PP | |
Sleeve Length | 25m | |
Braided | Yes | |
Expandable | No | |
Minimum Cable Diameter | 13 mm | |
Maximum Cable Diameter | 16 mm | |
Minimum Operating Temperature | -60°C | |
Maximum Operating Temperature | +110°C | |
Fire Behaviour | Halogen Free | |
Shielded | No | |
Wall Thickness | 0.8mm | |
Standards Met | ELV Compliant, RoHS Compliant | |
Series | Helawrap HWPP | |
Select all | ||
---|---|---|
Brand HellermannTyton | ||
Sleeve Diameter 16mm | ||
Colour Silver | ||
Material PP | ||
Sleeve Length 25m | ||
Braided Yes | ||
Expandable No | ||
Minimum Cable Diameter 13 mm | ||
Maximum Cable Diameter 16 mm | ||
Minimum Operating Temperature -60°C | ||
Maximum Operating Temperature +110°C | ||
Fire Behaviour Halogen Free | ||
Shielded No | ||
Wall Thickness 0.8mm | ||
Standards Met ELV Compliant, RoHS Compliant | ||
Series Helawrap HWPP | ||
- COO (Country of Origin):
- GB
HellermannTyton Helawrap HWPP Series Cable Sleeve, 16mm Sleeve Diameter, 25m Sleeve Length - 161-64203 HWPP16-PP-SR

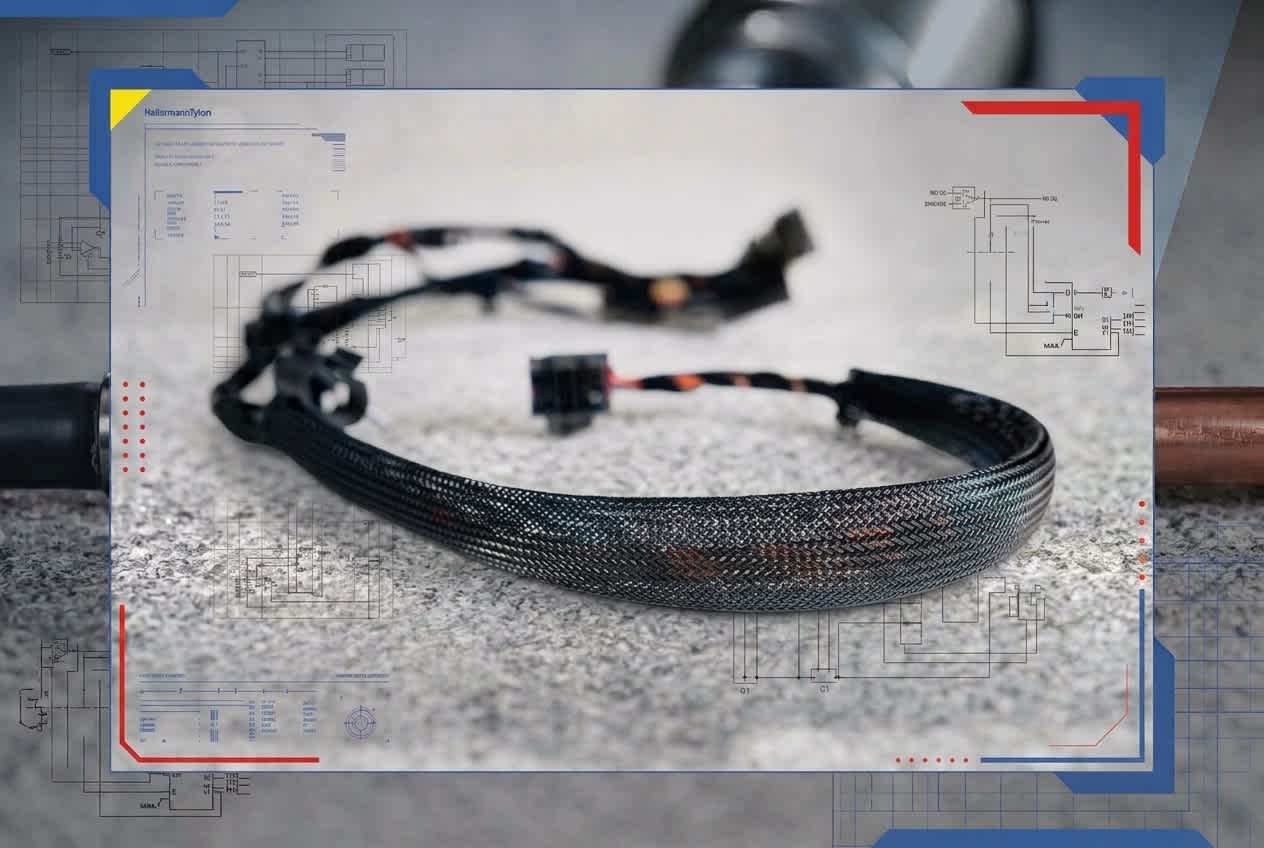

This cable sleeve is a high-quality solution designed for effective electrical cable management. Constructed from durable polypropylene (PP), it features a sleeve diameter of 16mm, offering reliable protection for bundles with a minimum diameter of 13mm. Measuring 25 m in length, this braided cable sleeve is halogen-free and suitable for operating temperatures ranging from -60°C to +110°C.
Features & Benefits
• Provides a secure cover for cables within the specified diameter range
• Constructed from halogen-free materials for enhanced safety
• Operates effectively across a wide temperature range
• Braided design allows flexibility while ensuring protective coverage
• Wall thickness of 0.8mm for enhanced durability
• Complies with RoHS standards for environmentally conscious use
• Constructed from halogen-free materials for enhanced safety
• Operates effectively across a wide temperature range
• Braided design allows flexibility while ensuring protective coverage
• Wall thickness of 0.8mm for enhanced durability
• Complies with RoHS standards for environmentally conscious use
Applications
• Ideal for protecting electrical cables in automation systems
• Used in mechanical engineering for durable cable management
• Suitable for requiring a reliable temperature range
• Utilised in electronic installations to ensure safety compliance
• Used in mechanical engineering for durable cable management
• Suitable for requiring a reliable temperature range
• Utilised in electronic installations to ensure safety compliance
What is the maximum temperature this sleeve can withstand?
The sleeve can operate effectively at temperatures up to +110°C and can handle intermittent exposure to temperatures as high as +140°C.
Is this sleeve flexible enough for use in tight spaces?
Yes, the braided design allows for flexibility, making it suitable for installation in confined areas without compromising cable protection.
Can this sleeve be used outdoors?
While the sleeve is designed for durability, its halogen-free construction and operating temperature range make it suitable for various environments
however, additional UV protection may be needed for prolonged outdoor exposure.
