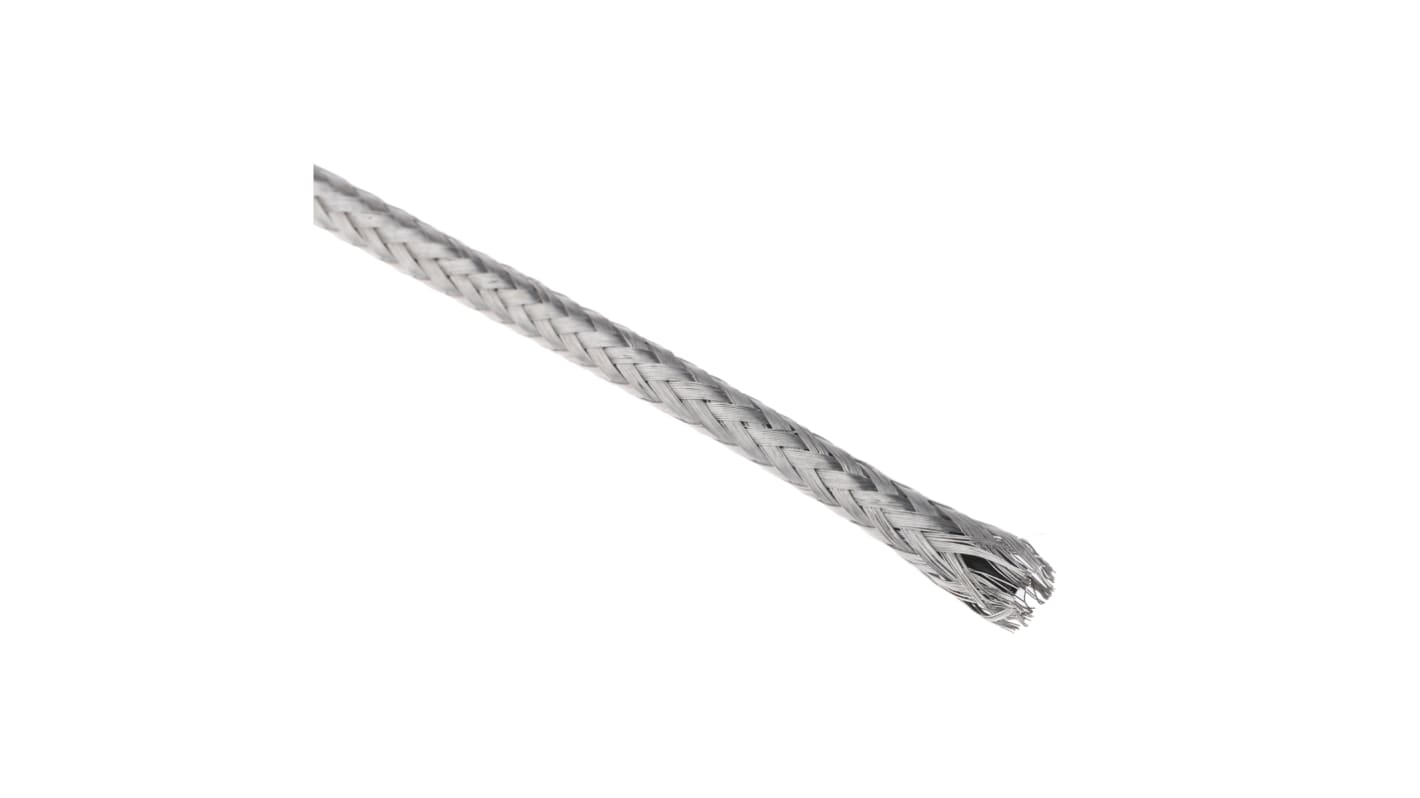

    TE Connectivity Expandable Braided Tinned Copper Silver Cable Sleeve, 3mm Diameter, 10m Length, RayBraid Series

    RS Stock No.:
    244-5152
    Mfr. Part No.:
    RAY-101-3.0(10)CK0610
    Brand:
    TE Connectivity
    TE Connectivity
    View all Cable Sleeves
    192 In stock - FREE next working day delivery available
    31 available from Europe for delivery within 1 working day(s).
    Add to Basket
    Reel(s)

    Added

    Price 1 Reel of 10 Metre(s)

    £54.97

    (exc. VAT)

    £65.96

    (inc. VAT)

    Reel(s)Per ReelPer Metre*
    1 - 14£54.97£5.497
    15 - 49£50.41£5.041
    50 +£47.22£4.722
    *price indicative
    RS Stock No.:
    244-5152
    Mfr. Part No.:
    RAY-101-3.0(10)CK0610
    Brand:
    TE Connectivity

    Technical Reference


    Legislation and Compliance


    Product Details

    Raybraid Plated Copper Braid


    Braided sleeving designed for the electrical screening of wire bundles, protecting them against interference and physical damage. Raybraid is supplied on a tube former which facilitates assembly and is more robust than braid supplied in flattened form. The Ray-101 range has a tinned copper screen and Ray-103 has a nickel plated copper screen for use in harsh environments and in high temperatures.



    Features and benefits
    • Provides EMC screen for wires and cables
    • Easy removal from PVC former
    • Min. 93%, max. 100% optical coverage
    • Highly usable expansion ratio (min 2:1)
    • Tin-plated copper or Nickel-plated copper sleeving available
    • Available in a wide range of sizes to cover 2.5 to 40mm diameters


    TE Connectivity Braided Cable Sleeve


    The TE Connectivity RayBraid series cable sleeve is a braided and expandable protective cover with a sleeve diameter of 3mm and length of 10m. It is designed for the electrical screening of wire bundles, protecting them against any interference and physical damage. It is supplied on a tube former that facilitates assembly and is more robust than a braid supplied in a flattened form. The sleeve has a tinned copper screen for use in harsh environments and high temperatures.


    Features and Benefits


    Easy removal from PVC former
    Highly usable expansion ratio (minimum 2:1)
    Maximum cable diameter is 5mm
    Minimum 93% and maximum 100% optical coverage
    Minimum cable diameter is 2.5mm
    Provides EMC screen for wires and cables


    Certifications


    ANSI/ESD S20.20:2014
    BS EN 61340-5-1:2007



    Specifications

    AttributeValue
    Sleeve Diameter3mm
    ColourSilver
    MaterialTinned Copper
    Sleeve Length10m
    BraidedYes
    ExpandableYes
    Minimum Cable Diameter2.5mm
    Maximum Cable Diameter5mm
    ShieldedYes
    SeriesRayBraid
