Raytech Gel Filled Cable Joint Kit, Straight Joint Type , 4 x 1.5 → 10mm²
- RS Stock No.:
- 713-3829
- Mfr. Part No.:
- Magic Joint 10
- Brand:
- Raytech
Bulk discount available
Subtotal (1 unit)*
£24.14
(exc. VAT)
£28.97
(inc. VAT)
Stock information currently inaccessible
Units | Per unit |
|---|---|
| 1 - 14 | £24.14 |
| 15 - 49 | £22.91 |
| 50 + | £21.70 |
*price indicative
- RS Stock No.:
- 713-3829
- Mfr. Part No.:
- Magic Joint 10
- Brand:
- Raytech
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Raytech | |
| Product Type | Cable Joint Kit | |
| Joint Type | Straight | |
| Cable Size | 4 x 1.5 → 10mm² | |
| Number of Cores | 4 | |
| Dimensions | 180 x 50mm | |
| Kit Includes | Cable Ties, Enclosure with Phase Separator, Instructions, Polymeric Resin, Sealing Tape | |
| Application | Unshielded | |
| Material | Gel Filled | |
Select all | ||
|---|---|---|
Brand Raytech | ||
Product Type Cable Joint Kit | ||
Joint Type Straight | ||
Cable Size 4 x 1.5 → 10mm² | ||
Number of Cores 4 | ||
Dimensions 180 x 50mm | ||
Kit Includes Cable Ties, Enclosure with Phase Separator, Instructions, Polymeric Resin, Sealing Tape | ||
Application Unshielded | ||
Material Gel Filled | ||
- COO (Country of Origin):
- IT

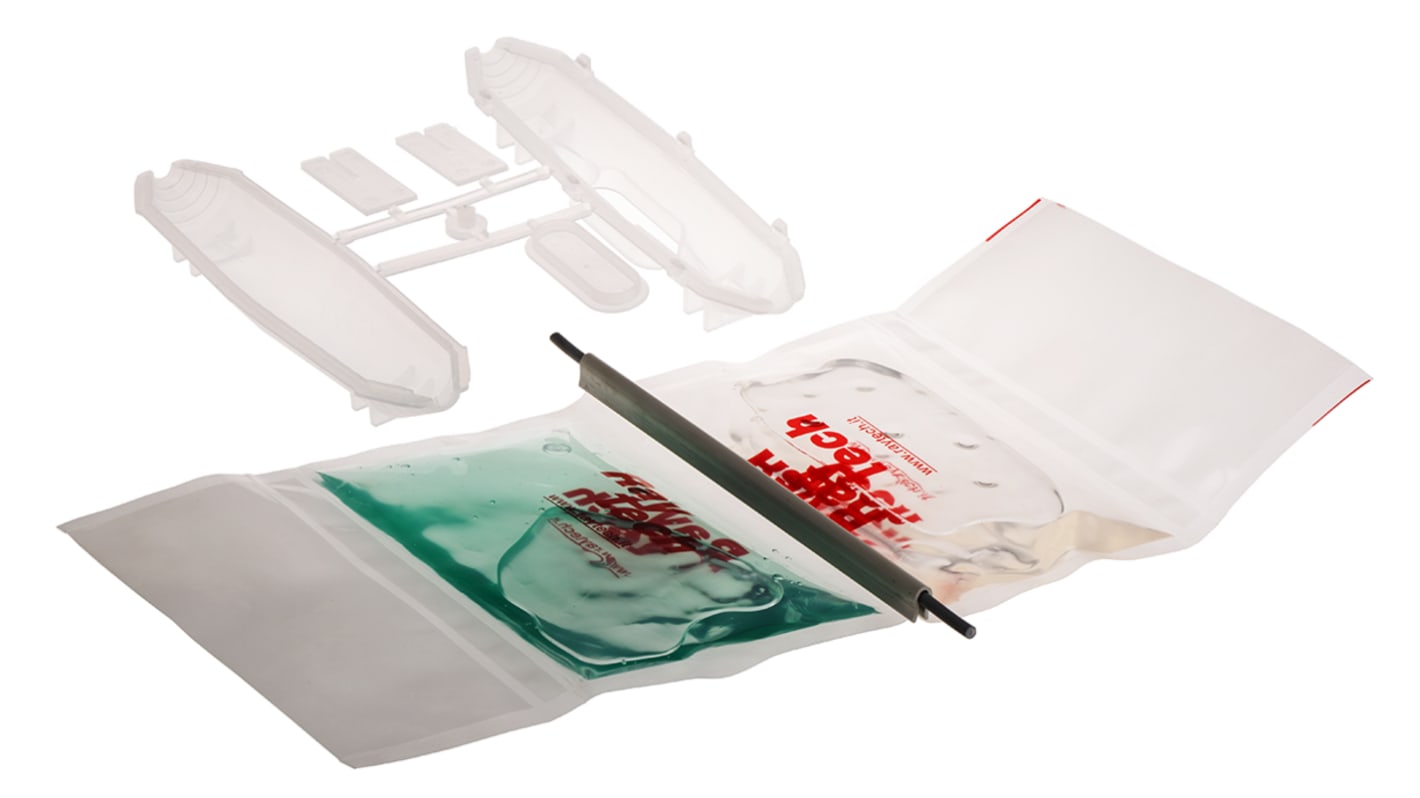

Magic Joint Cable Jointing Kit
The Raytech Magic Joint is a cable joint suitable for extruded 0.6/1 kV cables. It is easy to install and is formed by two plastic half shells that, once closed on the cable after conductor connection, are then filled with the magic fluid. This cable jointing kit is ideal for installations in ducts or traps underground, submerged or directly exposed to the weather. Magic joint has no shelf life, is safe, non toxic and re-enterable even after long working periods. Fast in cross linking without any increase of temperature, the insulation has high dielectric characteristics
No shelf life
Completely non toxic
Cure time less than 10 minutes at room temperature
Joints are re-enterable even after log working periods
Degree of protection higher than IP68
Can be installed under water at any depth
Can be used safely in unventilated and confined areas
Completely non toxic
Cure time less than 10 minutes at room temperature
Joints are re-enterable even after log working periods
Degree of protection higher than IP68
Can be installed under water at any depth
Can be used safely in unventilated and confined areas
Note
Splices/ Connectors should be ordered separately to suit the cable type or application
Approvals
CEI EN 50393; CEI 20-33
Class 2 in accordance with CEI 64-8
Degree of protection higher than IP68 in accordance with IEC 529
Class 2 in accordance with CEI 64-8
Degree of protection higher than IP68 in accordance with IEC 529
Supplied with
1 x closure with phase separator, 1 x cable tie, sealing tape, bag of Magic Fluid, instructions.
Supplied with
1 x closure with phase separator, 1 x cable tie, sealing tape, bag of Magic Fluid, instructions
