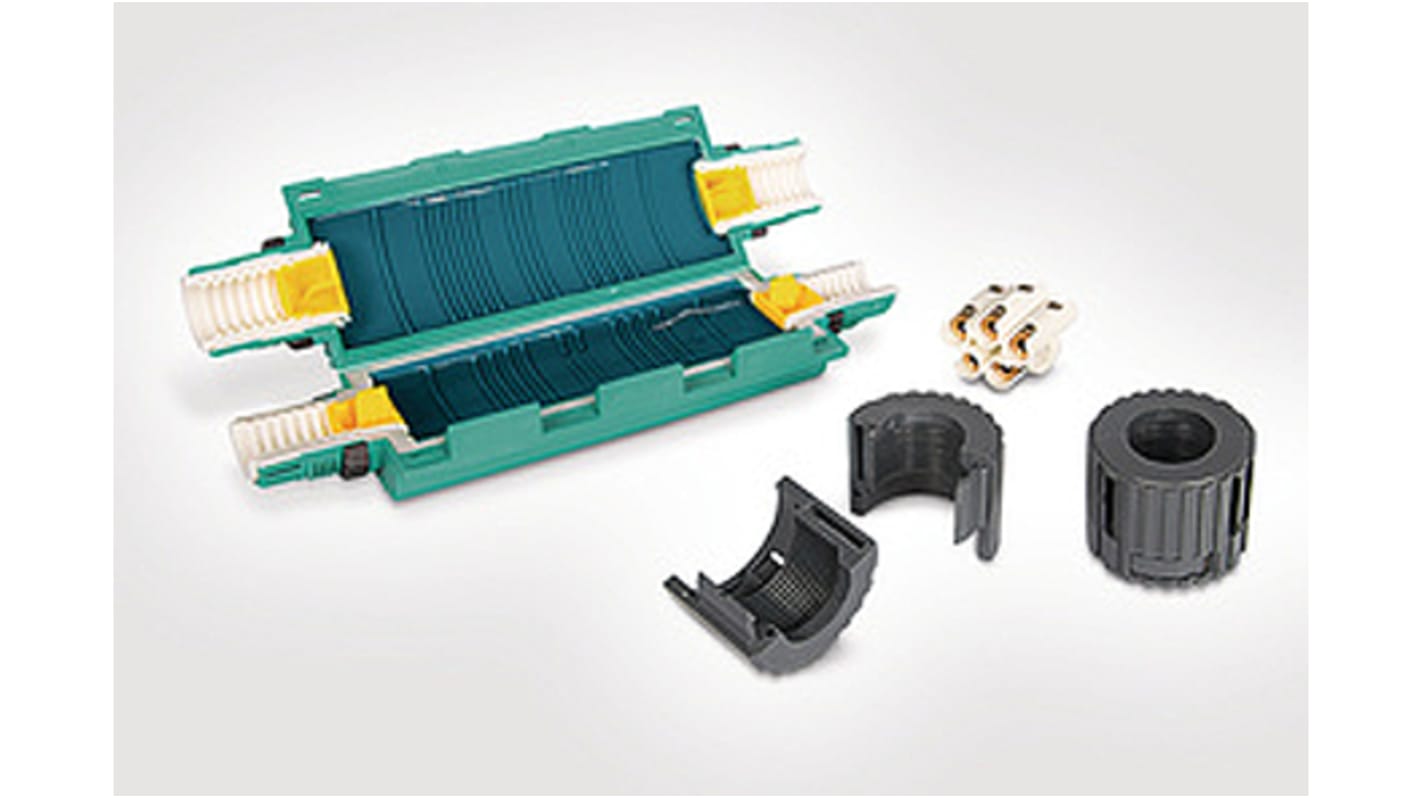

HellermannTyton Relicon Gel Filled Cable Joint Gel, Straight Joint Type , 5 x 10mm²
- RS Stock No.:
- 123-7504
- Mfr. Part No.:
- 435-01661 Reliseal V510-PP/SI-GN
- Brand:
- HellermannTyton
Save 8% when you buy 50 units
Subtotal (1 unit)*
£70.31
(exc. VAT)
£84.37
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 22 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | £70.31 |
| 15 - 49 | £66.79 |
| 50 + | £64.68 |
*price indicative
- RS Stock No.:
- 123-7504
- Mfr. Part No.:
- 435-01661 Reliseal V510-PP/SI-GN
- Brand:
- HellermannTyton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HellermannTyton | |
| Product Type | Cable Joint Gel | |
| Joint Type | Straight | |
| Cable Size | 5 x 10mm² | |
| Number of Cores | 5 | |
| Dimensions | 235 x 69 x 49mm | |
| Kit Includes | Connector Block, Non-Toxic Gel, Perfect Strain Relief Through Patented Cable Gland System, Re-Openable Shell | |
| Fire Behaviour | Flame Retardant | |
| Series | Relicon | |
| Application | Building Services, Indoors, Industry, Installation Channels, Interior Spaces, Low-Voltage Electrical Networks as Straight-Through Joint, Outdoors, Public Power Supply, Road and Tunnel Lighting, Submerged, Underground, Underwater, Wiring Duct | |
| Material | Gel Filled | |
Select all | ||
|---|---|---|
Brand HellermannTyton | ||
Product Type Cable Joint Gel | ||
Joint Type Straight | ||
Cable Size 5 x 10mm² | ||
Number of Cores 5 | ||
Dimensions 235 x 69 x 49mm | ||
Kit Includes Connector Block, Non-Toxic Gel, Perfect Strain Relief Through Patented Cable Gland System, Re-Openable Shell | ||
Fire Behaviour Flame Retardant | ||
Series Relicon | ||
Application Building Services, Indoors, Industry, Installation Channels, Interior Spaces, Low-Voltage Electrical Networks as Straight-Through Joint, Outdoors, Public Power Supply, Road and Tunnel Lighting, Submerged, Underground, Underwater, Wiring Duct | ||
Material Gel Filled | ||
- COO (Country of Origin):
- IT
HellermannTyton Gel Cable Joint with Relilight Connector
Relilight cable joints are designed for light installations such as LED lighting. Relilight can be used for straight through or as branch joints. Relilight are suitable for jointing on polymeric cables and wires made of PVC, XPLE, PE, EPR and similar materials. Outdoor light installations, underground, submerged, outdoor/ indoor and wiring ducts will benefit from Relilight cable joints.
Features and Benefits
• Two part black moulding shells
• Flame retardant
• RELICON gel insulating properties
• Non toxic gel
• Reopenable
• Easy installation
• UV Resistant
• Ageing resistant
• Weather resistant
• Unlimited storage life
• Provide insulation, sealing and mechanical protection in one step
• Flame retardant
• RELICON gel insulating properties
• Non toxic gel
• Reopenable
• Easy installation
• UV Resistant
• Ageing resistant
• Weather resistant
• Unlimited storage life
• Provide insulation, sealing and mechanical protection in one step
Standards
UL94 V0, IP68, DIN EN 60998-2-1:2004
Supplied with
Connector block
