TE Connectivity URHR URHR-3-CS-2065-0

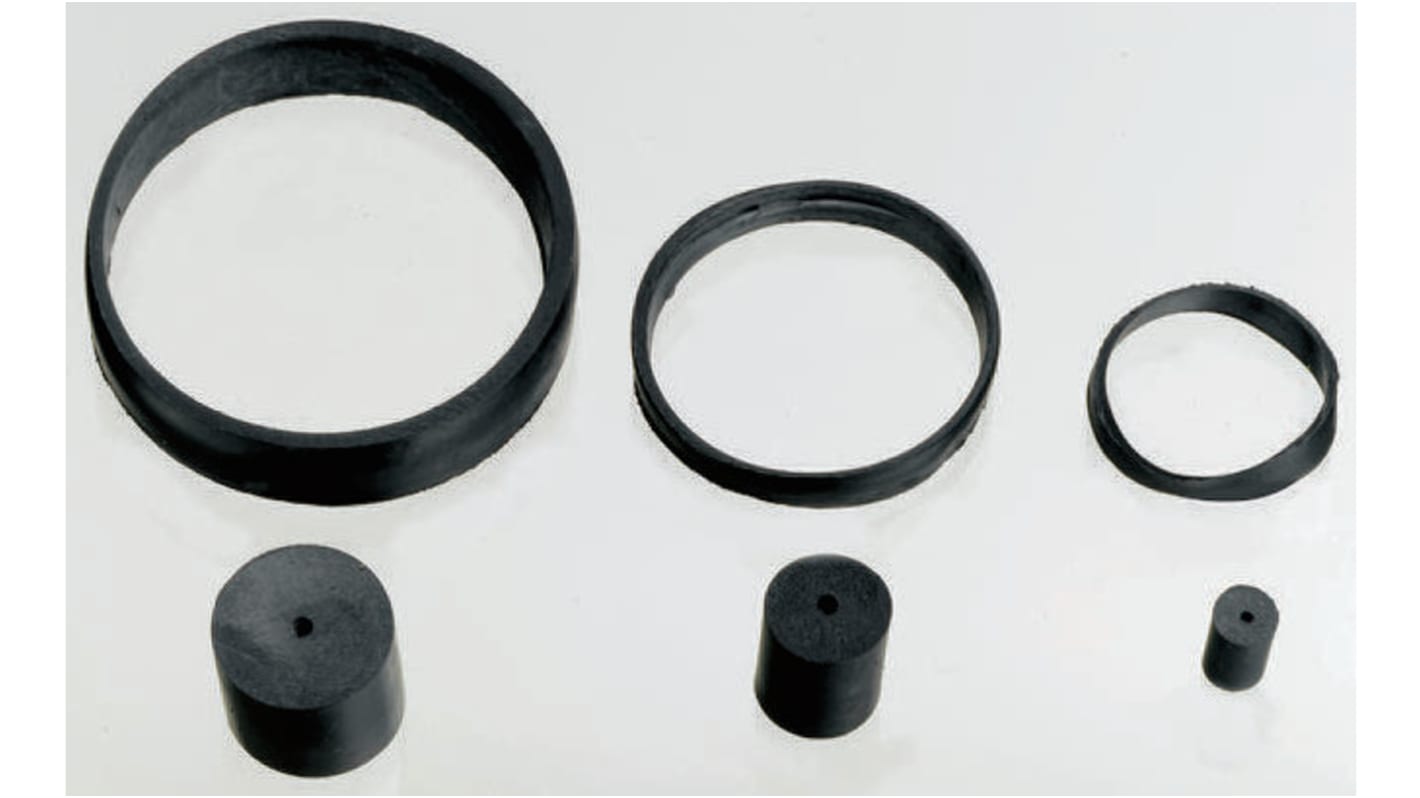

Image representative of range

View all Cable Grommets

Subtotal (1 pack of 10 units)*

£133.94

(exc. VAT)

£160.73

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • Plus 780 unit(s) shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Pack*
10 +£13.394£133.94

*price indicative

RS Stock No.:
441-4380
Mfr. Part No.:
URHR-3-CS-2065-0
Brand:
TE Connectivity
Find similar products by selecting one or more attributes.
Select all

Brand

TE Connectivity

Product Type

Cable Grommet

Minimum Operating Temperature

-55°C

Maximum Operating Temperature

135°C

Series

URHR

Standards/Approvals

No

COO (Country of Origin):
US

Cable Clamp Heat Shrink Grommets


ShrinkHoop™ grommet (URHR) is a high ratio heat-shrinkable strain-relief grommet that can be placed over the cable assembly after the connector pinning operation is complete. Shrunk down, these rings are highly conformable and fill the space between the clamp-type connector assembly and the cable. Re-entry is a simple operation, simply soften the ShrinkHoop™ grommet by heating and enlarge the ring by inserting a non-metallic probe through the centre of the wire bundle. The grommet will remain enlarged on cooling, allowing wires to be added, removed or reworked. Once rework is completed, simply heat the grommet until it shrinks down again before positioning and clamping back into place.

High shrink ratio up to 20:1

No build-up taping or feeding wire through grommet

Re-expandable I.D. allows wire addition to a cable bundle

Temperature Rating (°C) -55 to +135

Approvals

MIL - I - 81765/1 Type I

Standards

MIL-I-81765/1 Type 1
