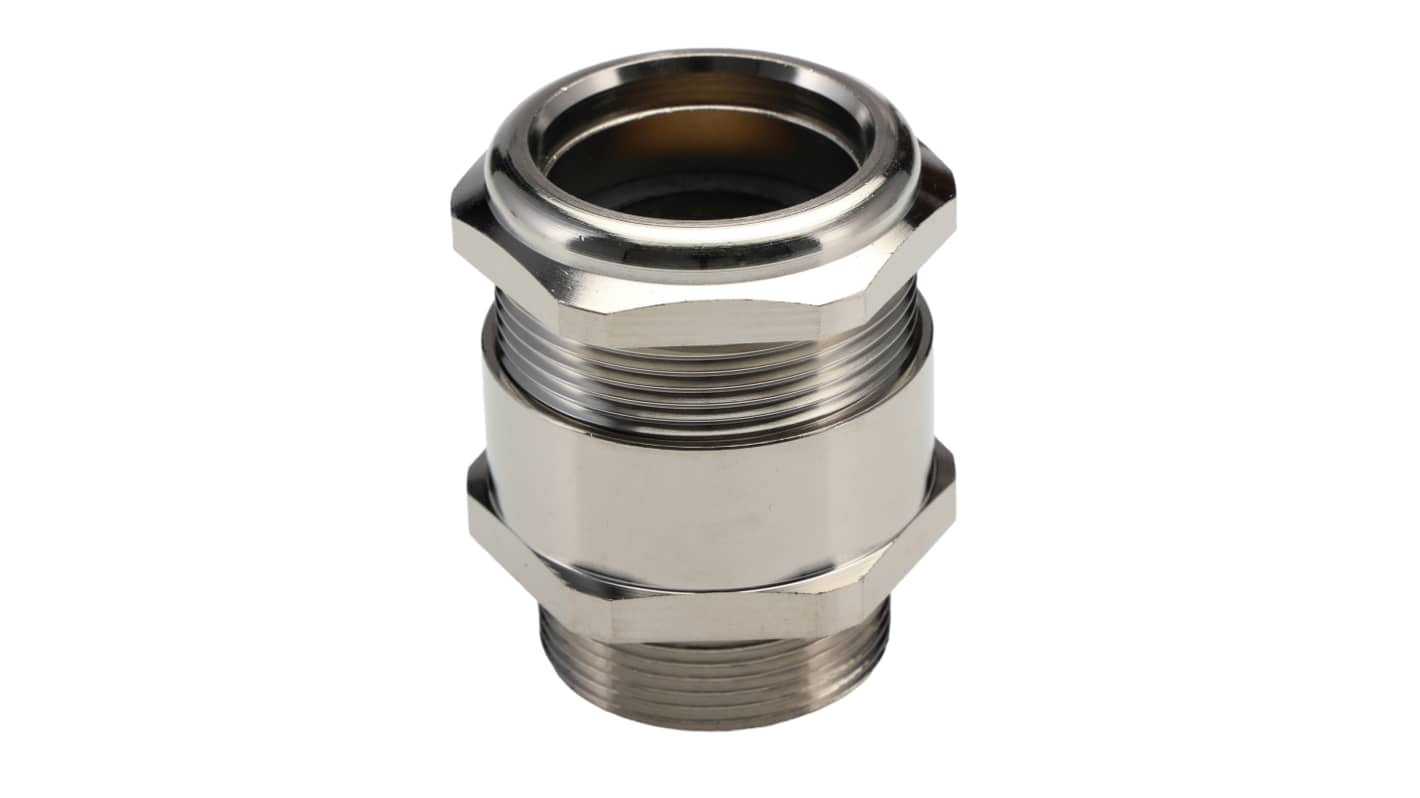

Lapp SKINDICHT Series Metallic Brass Cable Gland, M32 Thread, 19.5mm min., 21.8mm max., IP68
- RS Stock No.:
- 839-5312
- Mfr. Part No.:
- 59000430
- Brand:
- Lapp
Bulk discount available
Subtotal (1 unit)*
£55.26
(exc. VAT)
£66.31
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 29 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
---|---|
1 - 14 | £55.26 |
15 - 49 | £52.45 |
50 + | £50.74 |
*price indicative
- RS Stock No.:
- 839-5312
- Mfr. Part No.:
- 59000430
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Lapp | |
Thread Size | M32 | |
Maximum Cable Diameter | 21.8mm | |
Minimum Cable Diameter | 19.5mm | |
Material | Brass | |
Colour | Metallic | |
Series | SKINDICHT | |
IP Rating | IP68 | |
Locknut Included | No | |
Minimum Operating Temperature | -30°C | |
Maximum Operating Temperature | +80°C | |
Standards Met | RoHS Compliant | |
Operating Temperature Range | -30 → +80 °C | |
Reference | SKINDICHT SHVE-M | |
Select all | ||
---|---|---|
Brand Lapp | ||
Thread Size M32 | ||
Maximum Cable Diameter 21.8mm | ||
Minimum Cable Diameter 19.5mm | ||
Material Brass | ||
Colour Metallic | ||
Series SKINDICHT | ||
IP Rating IP68 | ||
Locknut Included No | ||
Minimum Operating Temperature -30°C | ||
Maximum Operating Temperature +80°C | ||
Standards Met RoHS Compliant | ||
Operating Temperature Range -30 → +80 °C | ||
Reference SKINDICHT SHVE-M | ||
- COO (Country of Origin):
- DE
Lapp EMC SHVE Cable Glands
From Lapp, the EMC SHVE cable gland can be used to terminate and secure cables in environments that require EMC earthing. With a robust nickel plated brass construction, the gland offers excellent protection, and has a wide clamping range to provide optimum strain relief to different cable sizes.
The cable gland also features a nitrile rubber sealing and o-ring for excellent environmental protection.
Features and Benefits
• EMC Protection
• Robust Construction
• IP68 Protection
• Operating Temperature -30°C to +80°C
Applications
Able to be applied with conduit, junction boxes and machine housing, this cable gland provides EMC earthing wherever there is risk of interference by electrical interference fields, such as;
• Medical Engineering
• Frequency convertors
• Measurement and control
Environment
This cable gland is sealed to IP68, which means it has excellent resistance to dust and particle ingress, and is waterproof up to shallow submersion. This means it is suitable for use in harsh industrial environments and certain outdoor applications.
The cable gland also features a nitrile rubber sealing and o-ring for excellent environmental protection.
Features and Benefits
• EMC Protection
• Robust Construction
• IP68 Protection
• Operating Temperature -30°C to +80°C
Applications
Able to be applied with conduit, junction boxes and machine housing, this cable gland provides EMC earthing wherever there is risk of interference by electrical interference fields, such as;
• Medical Engineering
• Frequency convertors
• Measurement and control
Environment
This cable gland is sealed to IP68, which means it has excellent resistance to dust and particle ingress, and is waterproof up to shallow submersion. This means it is suitable for use in harsh industrial environments and certain outdoor applications.
Nickel Plated brass material
Applications
Medical
Engineering
Frequency convertors
Measurement and control
Standards
IP68
