HellermannTyton NGM Series Black Nylon Cable Gland, M20 Thread, 10mm min., 14mm max., IP68
- RS Stock No.:
- 818-8173
- Mfr. Part No.:
- NGM20-BLK
- Brand:
- HellermannTyton
Bulk discount available
Subtotal (1 bag of 10 units)*
£10.52
(exc. VAT)
£12.62
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 6,820 unit(s) shipping from 06 October 2025
- Plus 320 unit(s) shipping from 06 October 2025
- Plus 1,400 unit(s) shipping from 27 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 10 - 140 | £1.052 | £10.52 |
| 150 - 490 | £0.999 | £9.99 |
| 500 + | £0.963 | £9.63 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Bag of 5
£4.39
(exc. VAT)
£5.27
(inc. VAT)
- RS Stock No.:
- 818-8173
- Mfr. Part No.:
- NGM20-BLK
- Brand:
- HellermannTyton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HellermannTyton | |
| Thread Size | M20 | |
| Maximum Cable Diameter | 14mm | |
| Minimum Cable Diameter | 10mm | |
| Material | Nylon 66 | |
| Colour | Black | |
| Series | NGM | |
| IP Rating | IP68 | |
| Locknut Included | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +100°C | |
| Standards Met | RoHS Compliant, UL 94 V-2 | |
| Operating Temperature Range | -40 → +100 °C | |
Select all | ||
|---|---|---|
Brand HellermannTyton | ||
Thread Size M20 | ||
Maximum Cable Diameter 14mm | ||
Minimum Cable Diameter 10mm | ||
Material Nylon 66 | ||
Colour Black | ||
Series NGM | ||
IP Rating IP68 | ||
Locknut Included Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +100°C | ||
Standards Met RoHS Compliant, UL 94 V-2 | ||
Operating Temperature Range -40 → +100 °C | ||
- COO (Country of Origin):
- CN

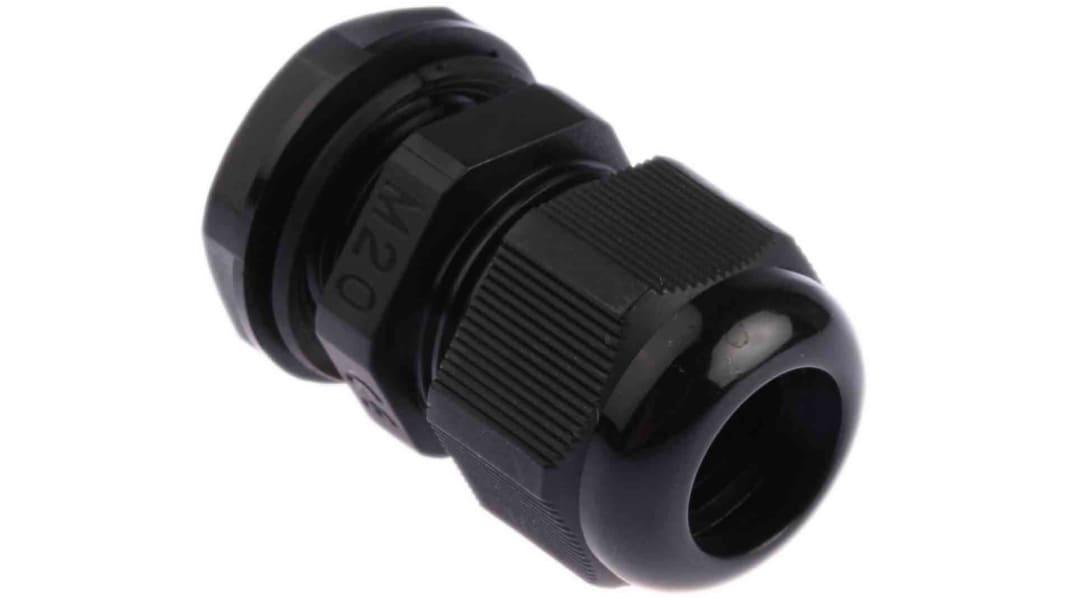

HellermannTyton IP68 M20 Nylon Cable Gland
Nylon cable gland with an IP68 rating in size M20 that is ideal for connecting cable to electrical equipment.
Features and benefits
Rating to IP68 protection against ingress of dust and water
Dismantling not necessary
Nylon 66 material
Available in red, black, white and grey
Note
These glands are NOT designed to be used with steel wire armoured cable.
HellermannTyton Cable Gland, 20mm Thread Diameter, 24 Spanner Size Body - NGM Series - NGM20-BLK
Need a fast way to seal connections and keep wires secure? Get this cable gland from HellermannTyton. It terminates free cable ends and attaches wires to your equipment to maintain a solid connection. As this component is IP68 rated, it protects your system against dust, submersion and water jets to suit demanding applications. The wide -40°C to +100°C temperature range means it's ideal for both indoor and outdoor use.
Features & Benefits
• Standard M20 thread is widely compatible
• Locknut and washer included to prevent accidental loosening after fitting
• Insulating nylon body prevents accidental shocks during handling
• Locknut and washer included to prevent accidental loosening after fitting
• Insulating nylon body prevents accidental shocks during handling
Applications
• Manufacturing industry
• Security systems
• Food and drink production
• Security systems
• Food and drink production
What type of cables can I use this gland with?
This gland works with non-armoured cables between 10 and 14mm in diameter, making it a good fit for control, automation and robotics systems.
