HellermannTyton NGM Series Grey Nylon Cable Gland, M20 Thread, 10mm min., 14mm max., IP68
- RS Stock No.:
- 818-8151
- Mfr. Part No.:
- NGM20-GY
- Brand:
- HellermannTyton
Bulk discount available
Subtotal (1 bag of 10 units)*
£10.52
(exc. VAT)
£12.62
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 590 unit(s) ready to ship
- Plus 270 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Bag* |
|---|---|---|
| 10 - 140 | £1.052 | £10.52 |
| 150 - 490 | £1.00 | £10.00 |
| 500 + | £0.965 | £9.65 |
*price indicative
Alternative
This product is not currently available. Here is our alternative recommendation.
Each (In a Bag of 10)
£0.736
(exc. VAT)
£0.883
(inc. VAT)
- RS Stock No.:
- 818-8151
- Mfr. Part No.:
- NGM20-GY
- Brand:
- HellermannTyton
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HellermannTyton | |
| Thread Size | M20 | |
| Maximum Cable Diameter | 14mm | |
| Minimum Cable Diameter | 10mm | |
| Material | Nylon 66 | |
| Colour | Grey | |
| Series | NGM | |
| IP Rating | IP68 | |
| Locknut Included | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +100°C | |
| Standards Met | RoHS Compliant, UL 94 V-2 | |
| Operating Temperature Range | -40 → +100 °C | |
Select all | ||
|---|---|---|
Brand HellermannTyton | ||
Thread Size M20 | ||
Maximum Cable Diameter 14mm | ||
Minimum Cable Diameter 10mm | ||
Material Nylon 66 | ||
Colour Grey | ||
Series NGM | ||
IP Rating IP68 | ||
Locknut Included Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +100°C | ||
Standards Met RoHS Compliant, UL 94 V-2 | ||
Operating Temperature Range -40 → +100 °C | ||
- COO (Country of Origin):
- CN

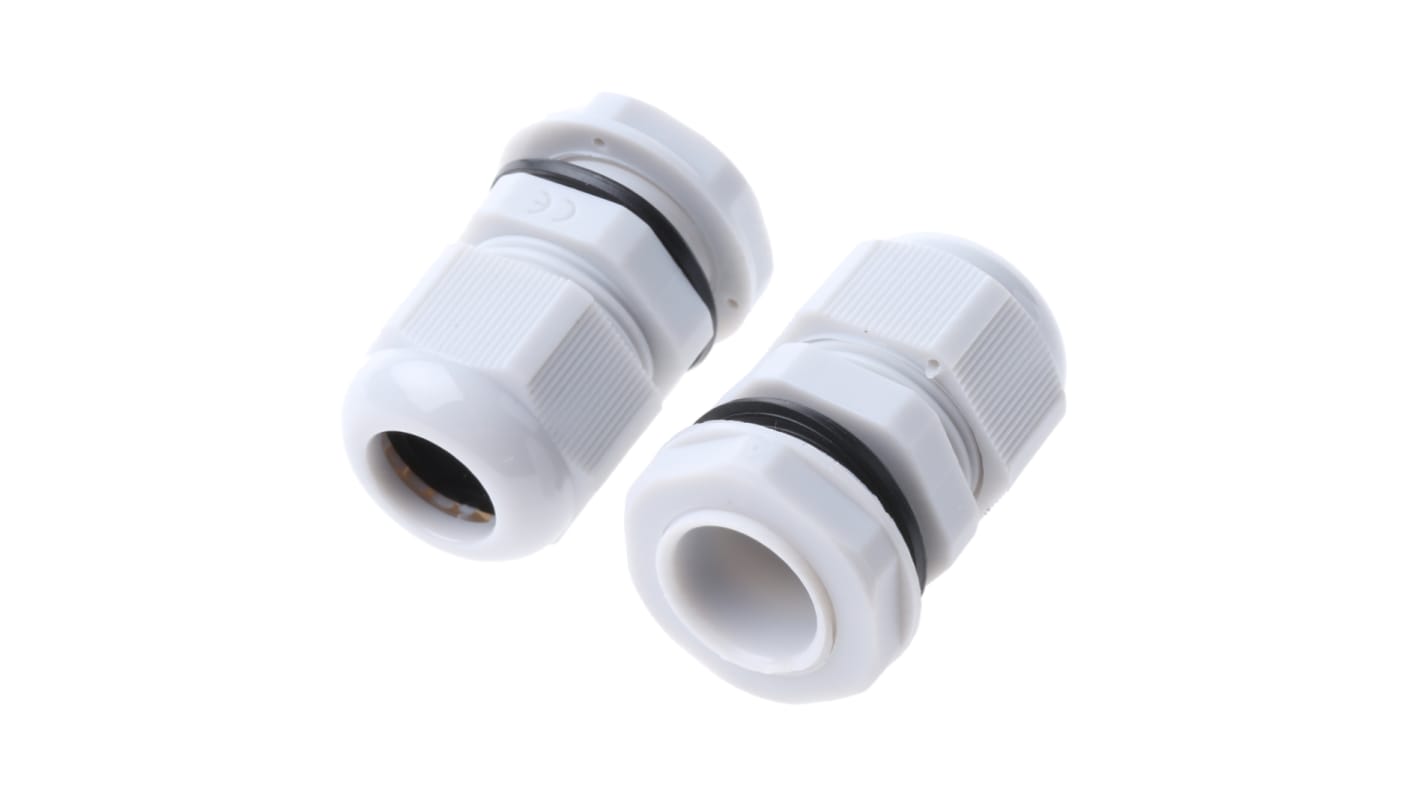

HellermannTyton IP68 M20 Nylon Cable Gland
Nylon cable gland with an IP68 rating in size M20 that is ideal for connecting cable to electrical equipment.
Features and benefits
Rating to IP68 protection against ingress of dust and water
Dismantling not necessary
Nylon 66 material
Available in red, black, white and grey
Note
These glands are NOT designed to be used with steel wire armoured cable.
