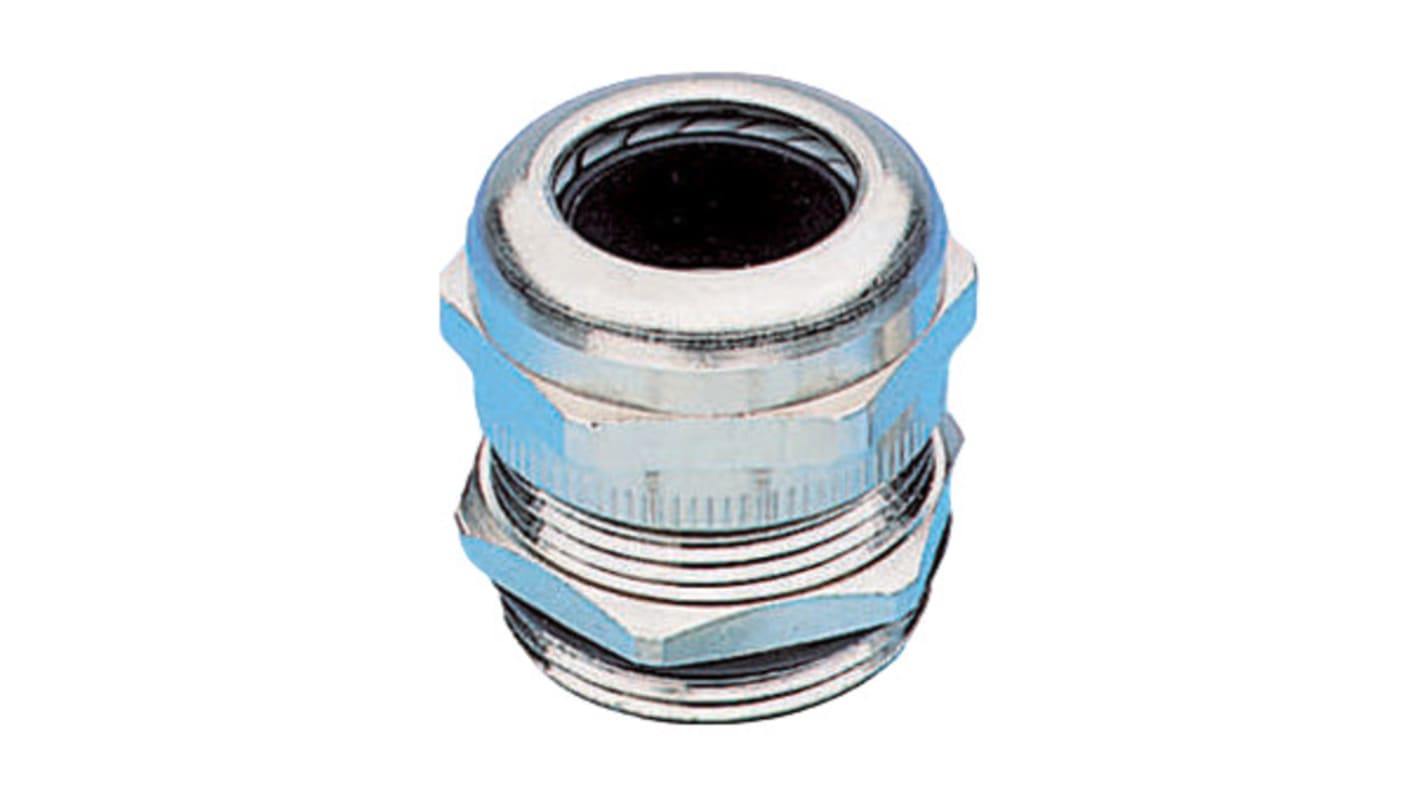

Hummel HSK-M Series Nickel Plated Brass Cable Gland, PG21 Thread, 13 mm min., 18 mm max., IP69K, IP68
- RS Stock No.:
- 289-0512
- Distrelec Article No.:
- 155-10-862
- Mfr. Part No.:
- 1.609.2100.01
- Brand:
- Hummel
Subtotal (1 unit)*
£9.45
(exc. VAT)
£11.34
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | £9.45 |
*price indicative
- RS Stock No.:
- 289-0512
- Distrelec Article No.:
- 155-10-862
- Mfr. Part No.:
- 1.609.2100.01
- Brand:
- Hummel
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hummel | |
| Product Type | Cable Gland | |
| Thread Size | PG21 | |
| Maximum Cable Diameter | 18mm | |
| Minimum Cable Diameter | 13mm | |
| Material | Nickel Plated Brass | |
| Series | HSK-M | |
| IP Rating | IP69K, IP68 | |
| Hazardous Area Certification | NO | |
| Maximum Operating Temperature | 100°C | |
| Minimum Operating Temperature | -40°C | |
| Standards/Approvals | CSA, EN 50262, RoHS, UL, VDE | |
| Select all | ||
|---|---|---|
Brand Hummel | ||
Product Type Cable Gland | ||
Thread Size PG21 | ||
Maximum Cable Diameter 18mm | ||
Minimum Cable Diameter 13mm | ||
Material Nickel Plated Brass | ||
Series HSK-M | ||
IP Rating IP69K, IP68 | ||
Hazardous Area Certification NO | ||
Maximum Operating Temperature 100°C | ||
Minimum Operating Temperature -40°C | ||
Standards/Approvals CSA, EN 50262, RoHS, UL, VDE | ||
The Watertight cable gland in metal with plastic lining. Thanks to the plastic lining the gland is insulated along its entire length.
Good strain relief and large clamp area
Bottom part fitted with an O-ring
Approvals of CSA, UL, VDE
Metal glands shall be earthed if they are mounted in a plastic case
