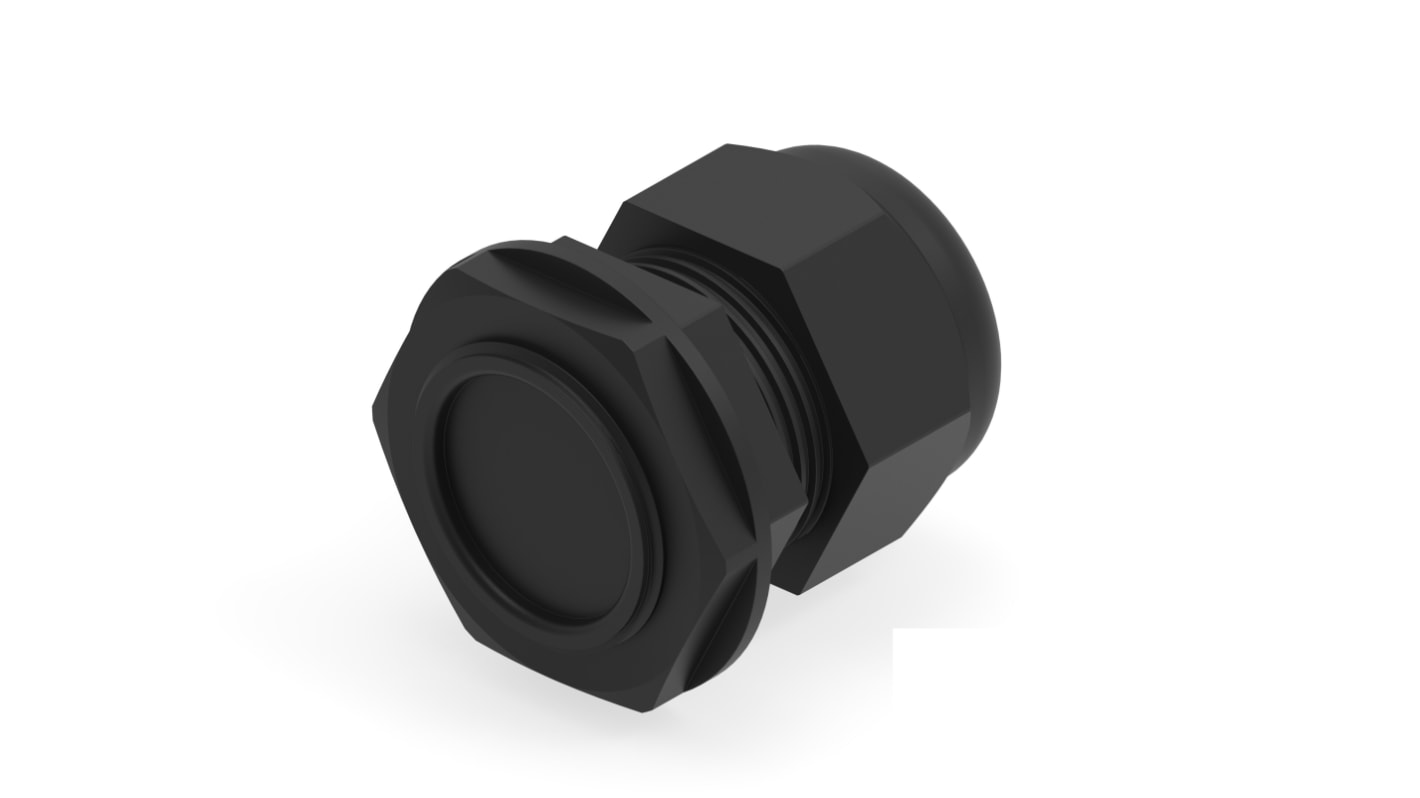

Entrelec 1SNG Series Black PA 6 Cable Gland, M32 Thread, 15mm min., 21mm max., IP66, IP68
- RS Stock No.:
- 274-9048
- Mfr. Part No.:
- 1SNG626093R0000
- Brand:
- Entrelec
Subtotal (1 pack of 5 units)*
£6.75
(exc. VAT)
£8.10
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 175 unit(s) ready to ship
- Plus 60 unit(s) shipping from 04 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
---|---|---|
5 + | £1.35 | £6.75 |
*price indicative
- RS Stock No.:
- 274-9048
- Mfr. Part No.:
- 1SNG626093R0000
- Brand:
- Entrelec
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
---|---|---|
Brand | Entrelec | |
Thread Size | M32 | |
Maximum Cable Diameter | 21mm | |
Minimum Cable Diameter | 15mm | |
Material | PA 6 | |
Colour | Black | |
Series | 1SNG | |
IP Rating | IP66, IP68 | |
Locknut Included | Yes | |
Fire Behaviour | UL 94 V2 | |
Minimum Operating Temperature | -20°C | |
Maximum Operating Temperature | +100°C | |
Operating Temperature Range | -20 → 100 °C | |
Kit Includes | Cable Gland, Locknut | |
Select all | ||
---|---|---|
Brand Entrelec | ||
Thread Size M32 | ||
Maximum Cable Diameter 21mm | ||
Minimum Cable Diameter 15mm | ||
Material PA 6 | ||
Colour Black | ||
Series 1SNG | ||
IP Rating IP66, IP68 | ||
Locknut Included Yes | ||
Fire Behaviour UL 94 V2 | ||
Minimum Operating Temperature -20°C | ||
Maximum Operating Temperature +100°C | ||
Operating Temperature Range -20 → 100 °C | ||
Kit Includes Cable Gland, Locknut | ||
- COO (Country of Origin):
- TR
The Entrelec Electrical solutions industrial cable glands provide excellent strain relief for cables and high ingress protection against dirt, dust, water and other liquids for electrical enclosures. Portfolio includes plastic and metal cable glands and appropriate accessories for both standard and specialized applications.
Standard industrial applications
Flammability V2 according to UL94
EMC protection and vibration proof
Hygienic and low contamination areas
Industrial applications with harsh environment
Various product functions to fit many applications
Flammability V2 according to UL94
EMC protection and vibration proof
Hygienic and low contamination areas
Industrial applications with harsh environment
Various product functions to fit many applications
