Hammond 1427BCG Series Grey Nickel Plated Brass Cable Gland, M12 Thread, 3mm min., 7mm max., IP68
- RS Stock No.:
- 256-5541
- Mfr. Part No.:
- 1427BCGM12
- Brand:
- Hammond
Subtotal (1 unit)*
£6.30
(exc. VAT)
£7.56
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 81 unit(s) ready to ship
- Plus 5 unit(s) ready to ship from another location
- Plus 999,999,918 unit(s) shipping from 17 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | £6.30 |
*price indicative
- RS Stock No.:
- 256-5541
- Mfr. Part No.:
- 1427BCGM12
- Brand:
- Hammond
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Hammond | |
| Thread Size | M12 | |
| Maximum Cable Diameter | 7mm | |
| Minimum Cable Diameter | 3mm | |
| Material | Nickel Plated Brass | |
| Colour | Grey | |
| Series | 1427BCG | |
| IP Rating | IP68 | |
| Locknut Included | Yes | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | +100°C | |
| Standards Met | CSA | |
| Operating Temperature Range | -40 → +100 °C | |
Select all | ||
|---|---|---|
Brand Hammond | ||
Thread Size M12 | ||
Maximum Cable Diameter 7mm | ||
Minimum Cable Diameter 3mm | ||
Material Nickel Plated Brass | ||
Colour Grey | ||
Series 1427BCG | ||
IP Rating IP68 | ||
Locknut Included Yes | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature +100°C | ||
Standards Met CSA | ||
Operating Temperature Range -40 → +100 °C | ||
- COO (Country of Origin):
- CN

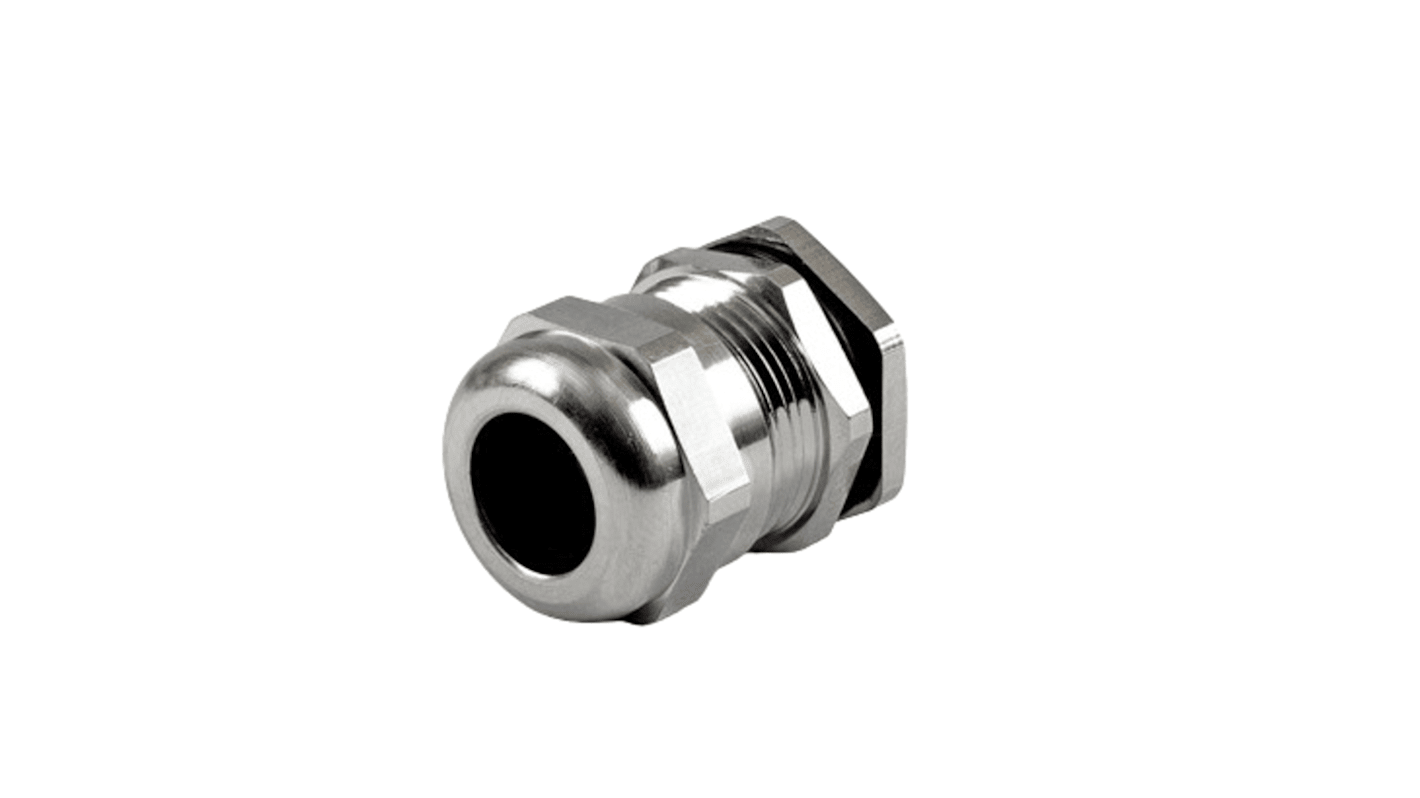

Hammond 1427BCG Series Cable Gland, IP68 , 7mm Maximum Cable Diameter - 1427BCGM12
This cable gland from Hammond is designed for industrial use, offering a waterproof solution for cables with a diameter ranging from 3mm to 7mm. With an IP68 rating, this grey, nickel-plated brass cable gland provides secure sealing and protection.
Features & Benefits
• IP68 rated for waterproof protection
• Constructed from nickel-plated brass for durability
• Suitable for cable diameters between 3mm to 7mm
• Includes a locknut for easy installation
• Constructed from nickel-plated brass for durability
• Suitable for cable diameters between 3mm to 7mm
• Includes a locknut for easy installation
Applications
• Ideal for outdoor use in harsh environments
• Suitable for automation systems where reliable cable connections are crucial
• Suitable for automation systems where reliable cable connections are crucial
Can it withstand outdoor conditions?
Yes, this cable gland is designed for outdoor use and can withstand harsh environmental conditions.
Will it fit cables of various diameters?
Yes, this cable gland is suitable for cables with diameters ranging from 3mm to 7mm.
Is it easy to install?
Yes, the cable gland comes with a locknut for easy and secure installation.
