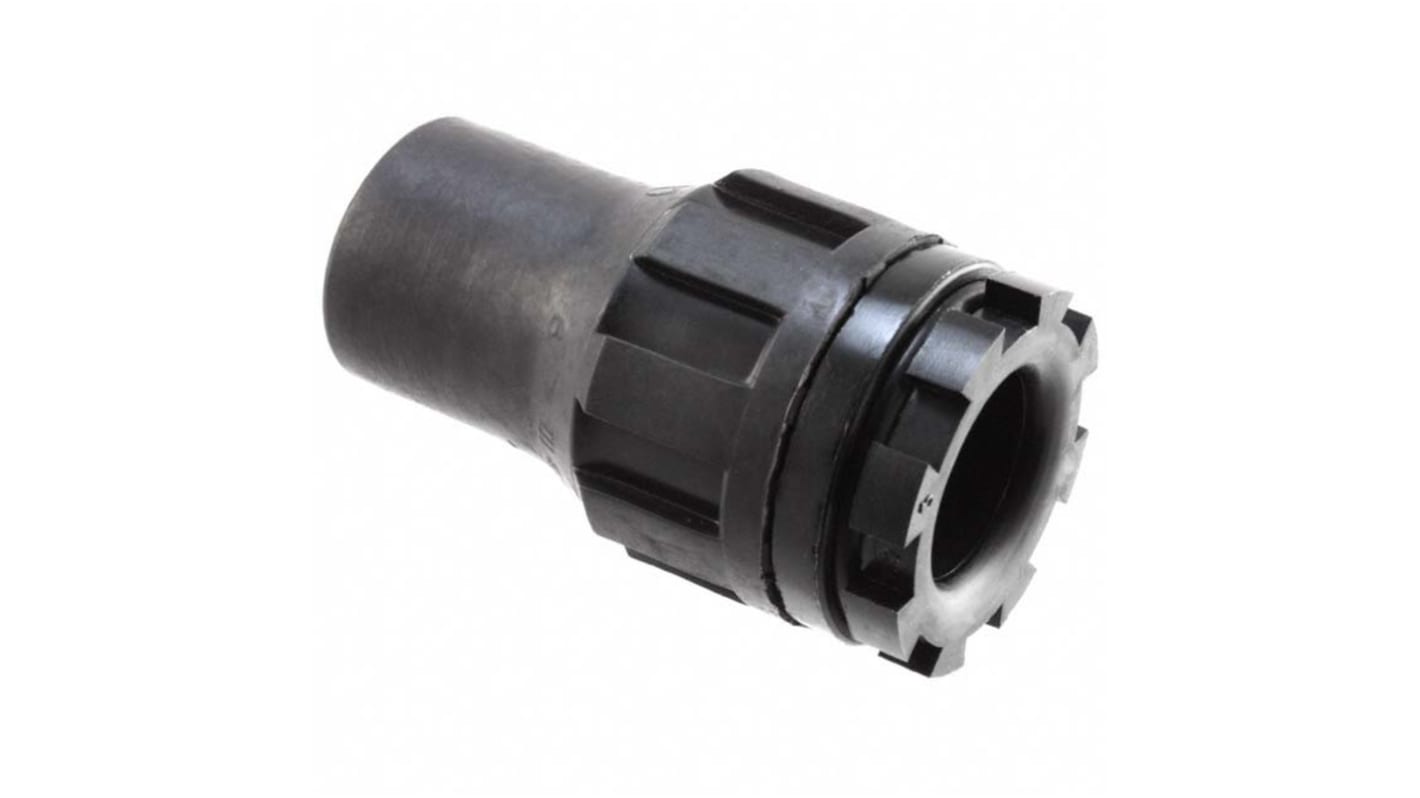

TE Connectivity CES Series Black Plastic Cable Gland, PG13.5 Thread, 6.4mm Min, 19.1mm Max, IP68
- RS Stock No.:
- 228-8735
- Mfr. Part No.:
- CES-2
- Brand:
- TE Connectivity
Currently unavailable
We don’t know if this item will be back in stock, it is being discontinued by the manufacturer.
Alternative
This product is not currently available. Here is our alternative recommendation.
Each
£18.66
(exc. VAT)
£22.39
(inc. VAT)
- RS Stock No.:
- 228-8735
- Mfr. Part No.:
- CES-2
- Brand:
- TE Connectivity
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Thread Size | PG13.5 | |
| Maximum Cable Diameter | 19.1mm | |
| Minimum Cable Diameter | 6.4mm | |
| Material | Plastic | |
| Colour | Black | |
| Series | CES | |
| IP Rating | IP68 | |
| Locknut Included | Yes | |
| Maximum Operating Temperature | +90°C | |
| Minimum Operating Temperature | -55°C | |
| Standards Met | RoHS Compliant | |
| Operating Temperature Range | -55 → +90 °C | |
Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Thread Size PG13.5 | ||
Maximum Cable Diameter 19.1mm | ||
Minimum Cable Diameter 6.4mm | ||
Material Plastic | ||
Colour Black | ||
Series CES | ||
IP Rating IP68 | ||
Locknut Included Yes | ||
Maximum Operating Temperature +90°C | ||
Minimum Operating Temperature -55°C | ||
Standards Met RoHS Compliant | ||
Operating Temperature Range -55 → +90 °C | ||
Heat Shrinkable Cable Entry Seals
Heat-shrinkable cable entry seals (CES) provide a seal where cables enter connection boxes, bulkheads, or other enclosures.
To meet sealing requirements, all CESs have factory-applied adhesive that provides the seal to wire and cable jackets.
To meet sealing requirements, all CESs have factory-applied adhesive that provides the seal to wire and cable jackets.
Rated to 600 Volts
Watertight, fumetight seal
Seals to 25 psi
Three part assembly
Rigid nylon nut
O ring
Heat-shrinkable moulded body
Watertight, fumetight seal
Seals to 25 psi
Three part assembly
Rigid nylon nut
O ring
Heat-shrinkable moulded body
