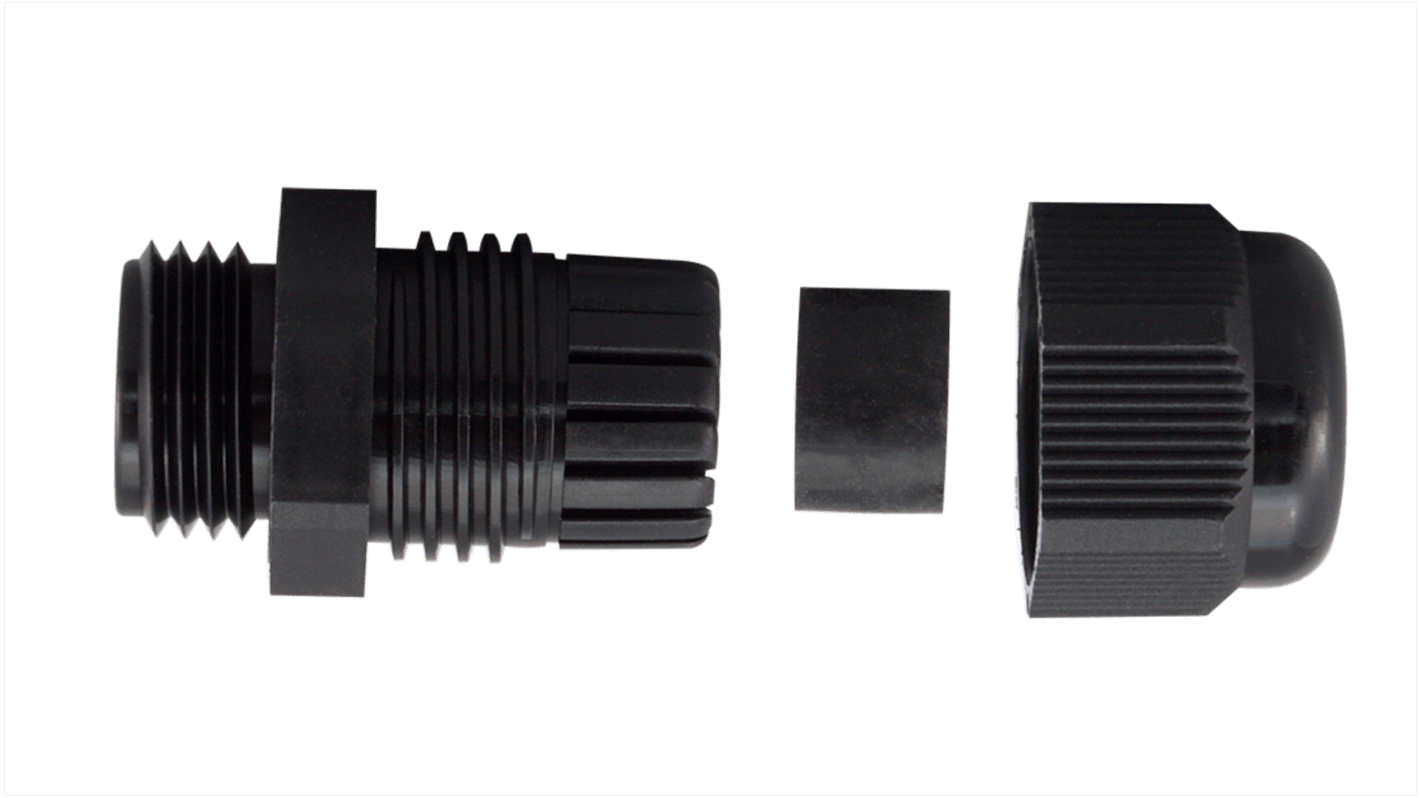

RS PRO Black Nylon Cable Gland, M12 Thread, 3mm min., 6.5mm max., IP68

RS Stock No.:: 210-1338
Distrelec Article No.:: 304-25-488
Brand:: RS PRO

RS PRO Black Nylon Cable Gland, M12 Thread, 3mm min., 6.5mm max., IP68

Subtotal (1 bag of 5 units)*

£4.15

(exc. VAT)

£4.98

(inc. VAT)

FREE delivery for orders over £50.00

In Stock

345 unit(s) ready to ship
Plus 14 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Bag(s)	Per Bag	Per unit*
1 +	£4.15	£0.83

*price indicative

RS Stock No.:: 210-1338
Distrelec Article No.:: 304-25-488
Brand:: RS PRO

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	RS PRO
	Thread Size	M12
	Maximum Cable Diameter	6.5mm
	Minimum Cable Diameter	3mm
	Material	Nylon 66
	Colour	Black
	Series	KSS METRIC THREAD
	IP Rating	IP68
	Locknut Included	No
	Fire Behaviour	Flame Retardant, Self-extinguishing
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Number of Pieces	5
	Standards Met	UL 94 V-2
	Operating Temperature Range	-40 °C→+85 °C

	Select all
	Brand RS PRO
	Thread Size M12
	Maximum Cable Diameter 6.5mm
	Minimum Cable Diameter 3mm
	Material Nylon 66
	Colour Black
	Series KSS METRIC THREAD
	IP Rating IP68
	Locknut Included No
	Fire Behaviour Flame Retardant, Self-extinguishing
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Number of Pieces 5
	Standards Met UL 94 V-2
	Operating Temperature Range -40 °C→+85 °C

RS PRO Nylon 66 Cable Gland

Introducing the range of RS PRO Nylon 66 Cable Glands, ideal for use in a range of cable and wiring applications in a wide variety of industrial environments. The Nylon 66 material makes these cable glands highly durable and able to perform at their very best even with high temperatures often found in challenging environments. These glands have metric threads which provide strain relief for cables, preventing them from breaking and ensuring their reliability and stability. In addition to this, the connector is IP68 rated making it ultra-durable, protecting the internal connections and delicate wiring, making it an ideal solution where a rugged and reliable connection is required in harsh environments.

Features and Benefits:

This RS PRO cable gland is ideal for use in a range of industries and environments as a solution to securely couple and connect cabling and wiring in a variety of different applications

These glands ensure the cables are not pulled out or twisted making the connection between the cable and the machine more secure and ensuring continued performance

Additionally, the metric threads provide strain relief to prevent the cables from getting damaged or breaking, providing long-lasting life and efficient operation

The IP68 rating means that they are ideal in harsh environments and are resistant to moisture, fluid, dirt and dust, while the Nylon 66 material allows them to withstand extreme temperature fluctuations

Locknut and washer are not included

Applications:

Cable glands, also known as cable connectors are essential when it comes to terminating cables in a hazardous or harsh environment. They offer ingress protection, sealing and grounding which are all a necessity when it comes to safely passing a wire or a cable through an enclosure and can be found in a range of industries like:

Instrumentation and control

Automated systems

Lighting

Data and telecommunications

Network cabling
