Lapp SKINTOP Series Metallic Nickel Plated Brass Cable Gland, PG9 Thread, 4mm min., 8mm max., IP68
- RS Stock No.:
- 390-094
- Distrelec Article No.:
- 303-99-563
- Mfr. Part No.:
- 52015710+52003500
- Brand:
- Lapp
Bulk discount available
Subtotal (1 pack of 5 units)*
£24.02
(exc. VAT)
£28.825
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 850 unit(s) ready to ship
- Plus 145 unit(s) ready to ship from another location
- Plus 215 unit(s) shipping from 04 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | £4.804 | £24.02 |
| 25 - 45 | £4.558 | £22.79 |
| 50 + | £4.334 | £21.67 |
*price indicative
- RS Stock No.:
- 390-094
- Distrelec Article No.:
- 303-99-563
- Mfr. Part No.:
- 52015710+52003500
- Brand:
- Lapp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Lapp | |
| Thread Size | PG9 | |
| Maximum Cable Diameter | 8mm | |
| Minimum Cable Diameter | 4mm | |
| Material | Nickel Plated Brass | |
| Colour | Metallic | |
| Series | SKINTOP | |
| IP Rating | IP68 | |
| Locknut Included | Yes | |
| Minimum Operating Temperature | -25°C | |
| Maximum Operating Temperature | +100°C | |
| Standards Met | CE, RoHS Compliant | |
| Operating Temperature Range | -25 → +100 °C | |
| Reference | SKINTOP MS | |
Select all | ||
|---|---|---|
Brand Lapp | ||
Thread Size PG9 | ||
Maximum Cable Diameter 8mm | ||
Minimum Cable Diameter 4mm | ||
Material Nickel Plated Brass | ||
Colour Metallic | ||
Series SKINTOP | ||
IP Rating IP68 | ||
Locknut Included Yes | ||
Minimum Operating Temperature -25°C | ||
Maximum Operating Temperature +100°C | ||
Standards Met CE, RoHS Compliant | ||
Operating Temperature Range -25 → +100 °C | ||
Reference SKINTOP MS | ||
- COO (Country of Origin):
- DE

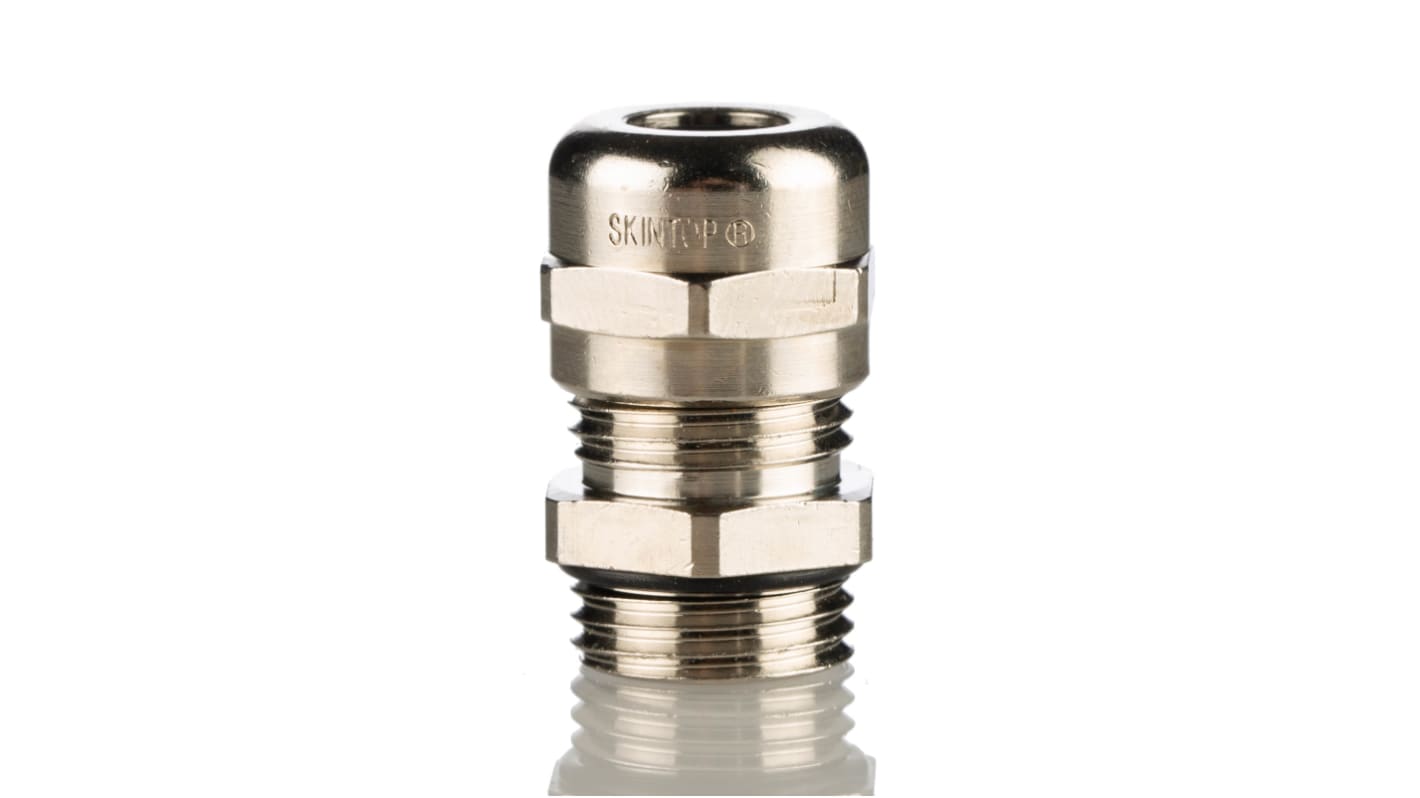

LAPP Nickel Plated Brass Cable Gland, PG9, 8mm Maximum Cable Diameter - SKINTOP MS Series - 52015710+52003500
For reliable cable management, choose this durable cable gland from LAPP. It's an ideal option for use in demanding environments due to its robust nickel-plated brass construction, which is resistant to corrosion and has an operating temperature range of -30°C to +80°C. These features also make the unit long-lasting and low maintenance. It comes with a locknut that lets you secure the position of the cable and prevent it from being accidentally pulled out.
Features & Benefits
• Suitable for 4 to 8mm cable diameters for versatility
• IP68 (ingress protection) rating means it's dust-tight and able to withstand 30 minutes immersion in 1.5m of water
• IP68 (ingress protection) rating means it's dust-tight and able to withstand 30 minutes immersion in 1.5m of water
Applications
• Chemical industry
• Measurement and control technology
• Machine and equipment manufacturing
• Plant engineering
• Measurement and control technology
• Machine and equipment manufacturing
• Plant engineering
What are cable glands used for?
Cable glands connect and seal the ends of electrical cables when attaching the cable to a terminal, plug or electronic equipment.
How do I connect this cable gland?
This cable gland has a straightforward screw-on design with a standard PG9 thread, making installation quick and simple.
