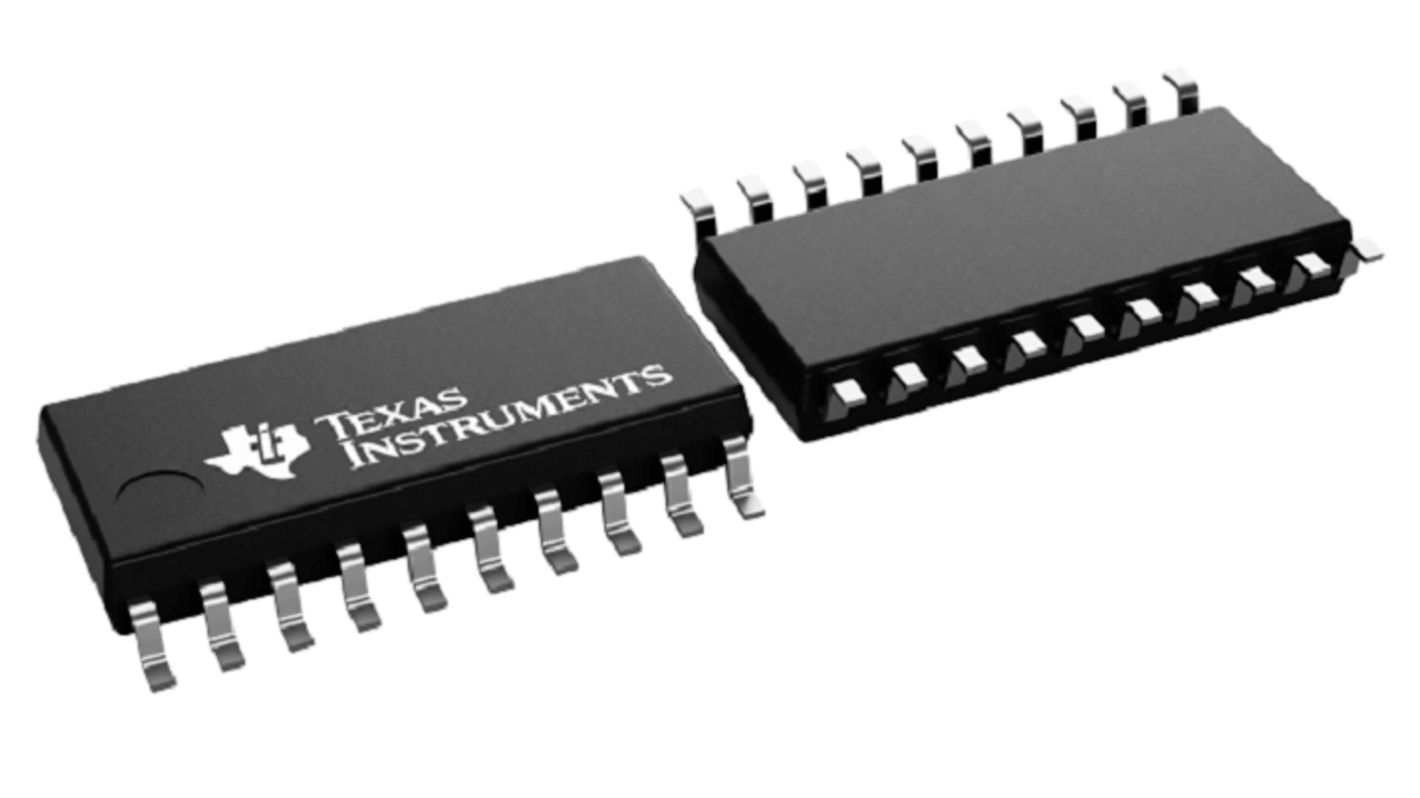

Texas Instruments SN74ACT245NSR Bus Transceiver Non-Inverting 3 State, 20-Pin SO
- RS Stock No.:
- 268-3187
- Mfr. Part No.:
- SN74ACT245NSR
- Brand:
- Texas Instruments
Get a bulk buy discount
Add 50 more to save 5%
View bulk pricing optionsSubtotal (1 pack of 10 units)*
£8.88
(exc. VAT)
£10.66
(inc. VAT)
FREE delivery for orders over £60.00
In Stock
- 1,770 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* | Saving |
|---|---|---|---|
| 10 - 40 | £0.888 | £8.88 | - |
| 50 - 90 | £0.843 | £8.43 | 5% |
| 100 - 240 | £0.728 | £7.28 | 18% |
| 250 - 990 | £0.709 | £7.09 | 20% |
| 1000 + | £0.691 | £6.91 | 22% |
*price indicative
- RS Stock No.:
- 268-3187
- Mfr. Part No.:
- SN74ACT245NSR
- Brand:
- Texas Instruments
Specifications
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Logic Family | 74ACT | |
| Product Type | Bus Transceiver | |
| Logic Function | CMOS | |
| Polarity | Non-Inverting | |
| Package Type | SO | |
| Pin Count | 20 | |
| Minimum Supply Voltage | 4.5V | |
| Maximum Supply Voltage | 5.5V | |
| Minimum Operating Temperature | -40°C | |
| Output Level | 3 State | |
| Maximum High Level Output Current | 24mA | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Maximum Low Level Output Current | 24mA | |
| Length | 5.06mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Logic Family 74ACT | ||
Product Type Bus Transceiver | ||
Logic Function CMOS | ||
Polarity Non-Inverting | ||
Package Type SO | ||
Pin Count 20 | ||
Minimum Supply Voltage 4.5V | ||
Maximum Supply Voltage 5.5V | ||
Minimum Operating Temperature -40°C | ||
Output Level 3 State | ||
Maximum High Level Output Current 24mA | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Maximum Low Level Output Current 24mA | ||
Length 5.06mm | ||
Automotive Standard No | ||
