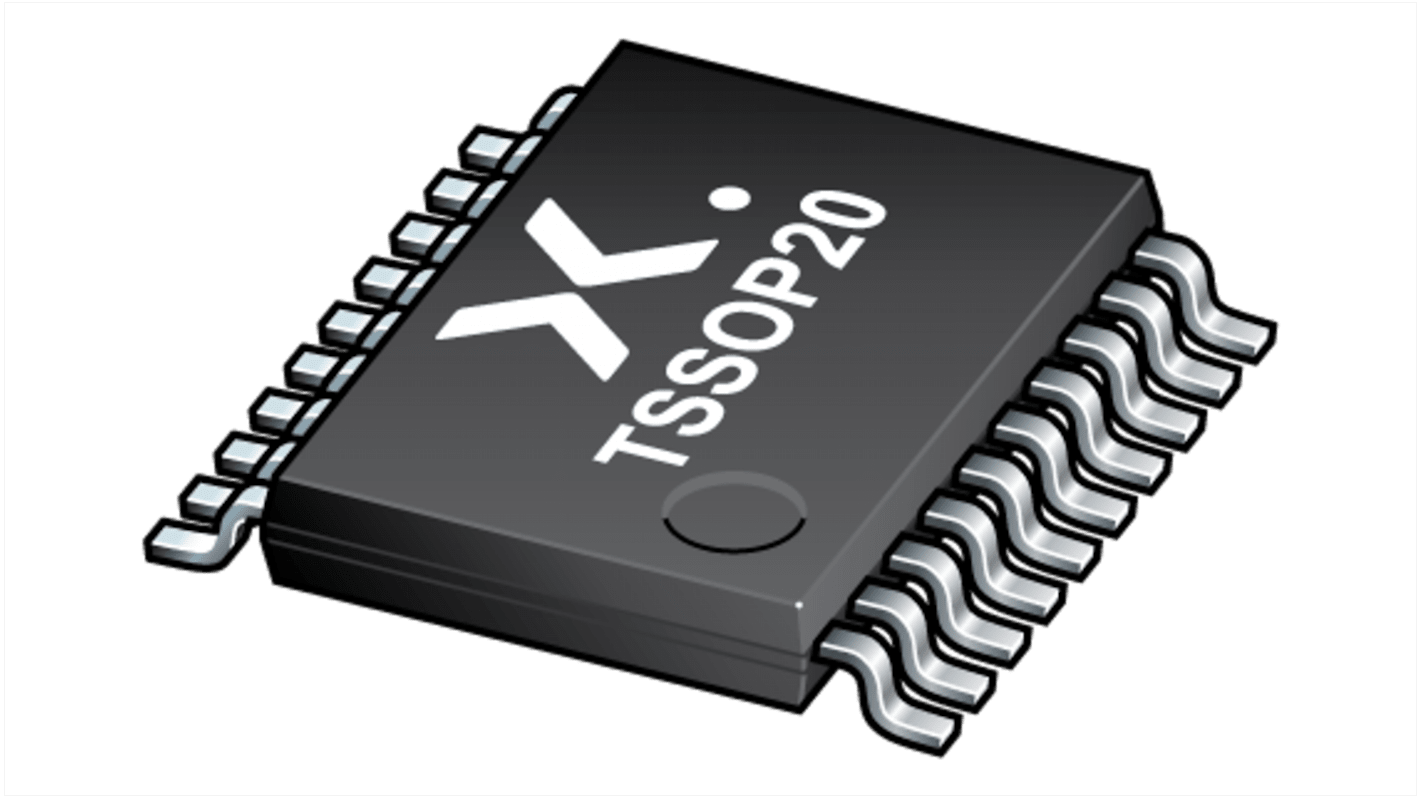

Nexperia Bus Transceiver, 1-Bit Non-Inverting 3 State, 20-Pin TSSOP
- RS Stock No.:
- 219-4282
- Mfr. Part No.:
- 74HCT245PW,118
- Brand:
- Nexperia
Subtotal (1 reel of 2500 units)*
£540.00
(exc. VAT)
£647.50
(inc. VAT)
Add 2500 units to get free delivery
Temporarily out of stock
- Shipping from 31 August 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2500 + | £0.216 | £540.00 |
*price indicative
- RS Stock No.:
- 219-4282
- Mfr. Part No.:
- 74HCT245PW,118
- Brand:
- Nexperia
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Nexperia | |
| Product Type | Bus Transceiver | |
| Logic Family | 74HCT | |
| Logic Function | Transceiver | |
| Number of Channels | 1 | |
| Polarity | Non-Inverting | |
| Mount Type | Surface | |
| Package Type | TSSOP | |
| Minimum Supply Voltage | 4.5V | |
| Pin Count | 20 | |
| Maximum Supply Voltage | 5.5V | |
| Input Level | TTL | |
| Minimum Operating Temperature | -40°C | |
| Maximum Propagation Delay Time @ CL | 28ns | |
| Output Level | 3 State | |
| Maximum High Level Output Current | 35mA | |
| Maximum Operating Temperature | 125°C | |
| Length | 6.6mm | |
| Series | 74HCT | |
| Standards/Approvals | No | |
| Maximum Low Level Output Current | -7.8mA | |
| Height | 0.95mm | |
| Width | 4.5 mm | |
| Output Type | 3 State | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Nexperia | ||
Product Type Bus Transceiver | ||
Logic Family 74HCT | ||
Logic Function Transceiver | ||
Number of Channels 1 | ||
Polarity Non-Inverting | ||
Mount Type Surface | ||
Package Type TSSOP | ||
Minimum Supply Voltage 4.5V | ||
Pin Count 20 | ||
Maximum Supply Voltage 5.5V | ||
Input Level TTL | ||
Minimum Operating Temperature -40°C | ||
Maximum Propagation Delay Time @ CL 28ns | ||
Output Level 3 State | ||
Maximum High Level Output Current 35mA | ||
Maximum Operating Temperature 125°C | ||
Length 6.6mm | ||
Series 74HCT | ||
Standards/Approvals No | ||
Maximum Low Level Output Current -7.8mA | ||
Height 0.95mm | ||
Width 4.5 mm | ||
Output Type 3 State | ||
Automotive Standard No | ||
The Nexperia 74HCT245 is an 8-bit transceiver with 3-state outputs. The device features an output enable (OE) and send/receive (DIR) for direction control.
Octal bus interface
Non-inverting 3-state outputs
