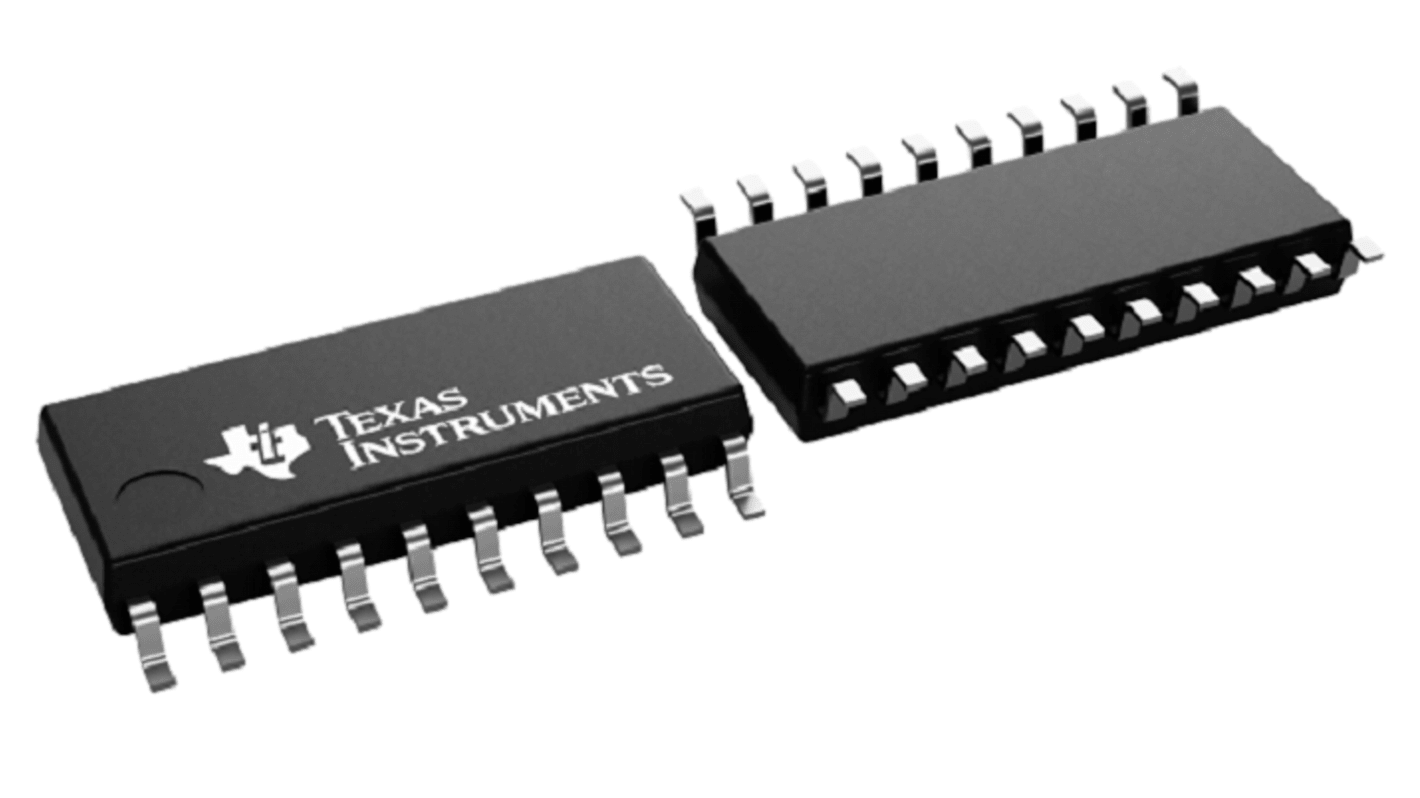

Texas Instruments SN74ACT245NSR Bus Transceiver Non-Inverting 3 State, 20-Pin SO
- RS Stock No.:
- 268-3186
- Mfr. Part No.:
- SN74ACT245NSR
- Brand:
- Texas Instruments
Subtotal (1 reel of 2000 units)*
£1,398.00
(exc. VAT)
£1,678.00
(inc. VAT)
FREE delivery for orders over £60.00
Temporarily out of stock
- Shipping from 25 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 2000 + | £0.699 | £1,398.00 |
*price indicative
- RS Stock No.:
- 268-3186
- Mfr. Part No.:
- SN74ACT245NSR
- Brand:
- Texas Instruments
Specifications
Legislation and Compliance
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Texas Instruments | |
| Logic Family | 74ACT | |
| Product Type | Bus Transceiver | |
| Logic Function | CMOS | |
| Polarity | Non-Inverting | |
| Package Type | SO | |
| Pin Count | 20 | |
| Minimum Supply Voltage | 4.5V | |
| Maximum Supply Voltage | 5.5V | |
| Output Level | 3 State | |
| Minimum Operating Temperature | -40°C | |
| Maximum High Level Output Current | 24mA | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Length | 5.06mm | |
| Maximum Low Level Output Current | 24mA | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Texas Instruments | ||
Logic Family 74ACT | ||
Product Type Bus Transceiver | ||
Logic Function CMOS | ||
Polarity Non-Inverting | ||
Package Type SO | ||
Pin Count 20 | ||
Minimum Supply Voltage 4.5V | ||
Maximum Supply Voltage 5.5V | ||
Output Level 3 State | ||
Minimum Operating Temperature -40°C | ||
Maximum High Level Output Current 24mA | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Length 5.06mm | ||
Maximum Low Level Output Current 24mA | ||
Automotive Standard No | ||
