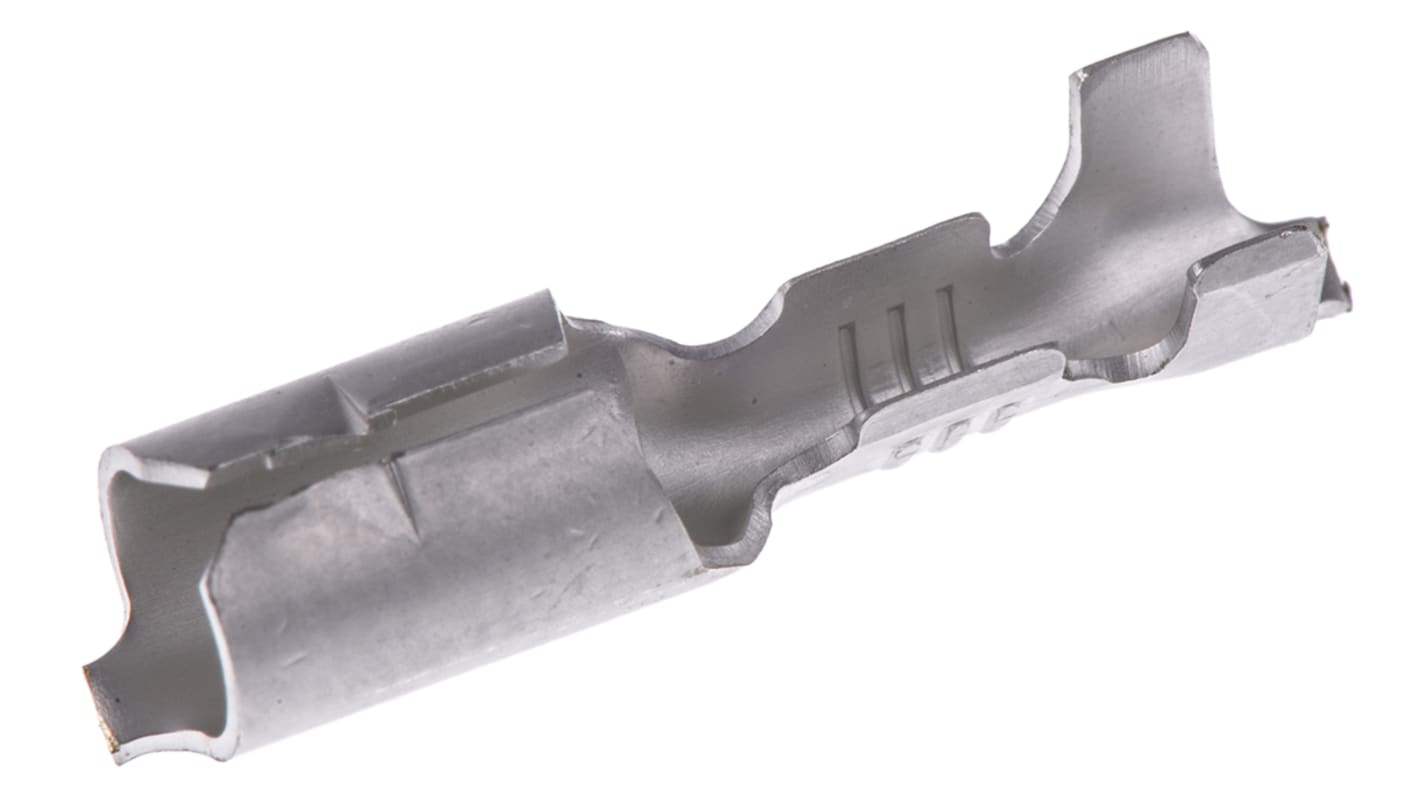

TE Connectivity, 42581 Uninsulated Female Crimp Bullet Connector, 0.3mm² to 0.8mm², 22AWG to 18AWG, 4mm Bullet diameter
- RS Stock No.:
- 164-0040
- Mfr. Part No.:
- 42581-2
- Brand:
- TE Connectivity
Available to back order for despatch 20/01/2025
Added
Price 1 Reel of 10000
£1,259.43
(exc. VAT)
£1,511.32
(inc. VAT)
| Reel(s) | Per Reel | Per unit* |
| 1 + | £1,259.43 | £0.126 |
| *price indicative | ||
- RS Stock No.:
- 164-0040
- Mfr. Part No.:
- 42581-2
- Brand:
- TE Connectivity
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- US
Product Details
TE Connectivity SHUR-PLUG Bullet Receptacle Terminals
SHUR-PLUG bullet crimp receptacle terminals made from brass with a variety of platings. These SHUR-PLUG bullet receptacle connectors are for use with SHUR-PLUG bullet plug crimp terminals with a 3.96mm pin diameter apart from stock number 795-6449 which is for use with a 4.57mm diameter SHUR-PLUG bullet connector.
TE Connectivity Female Crimp Bullet Connector
The TE Connectivity SHUR-PLUG series is an uninsulated female crimp bullet connector. Its socket terminals are made from brass with a variety of plating.
Features and Benefits
• Bullet diameter 3.96mm
• Contact material brass
• Tin contact plating
• Mounting angle straight
• Unshrouded
• Wire gauge 18-22AWG
• Contact material brass
• Tin contact plating
• Mounting angle straight
• Unshrouded
• Wire gauge 18-22AWG
Shur Plugs and Shur Plug Receptacles
Specifications
Attribute | Value |
|---|---|
| Series | 42581 |
| Insulation | Uninsulated |
| Overall Length | 17.53mm |
| Gender | Female |
| Minimum Wire Size mm² | 0.3mm² |
| Maximum Wire Size mm² | 0.8mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 18AWG |
| Bullet Diameter | 4mm |
| Shrouded/Unshrouded | Unshrouded |
| Contact Plating | Tin |
| Contact Material | Brass |
- RS Stock No.:
- 164-0040
- Mfr. Part No.:
- 42581-2
- Brand:
- TE Connectivity
