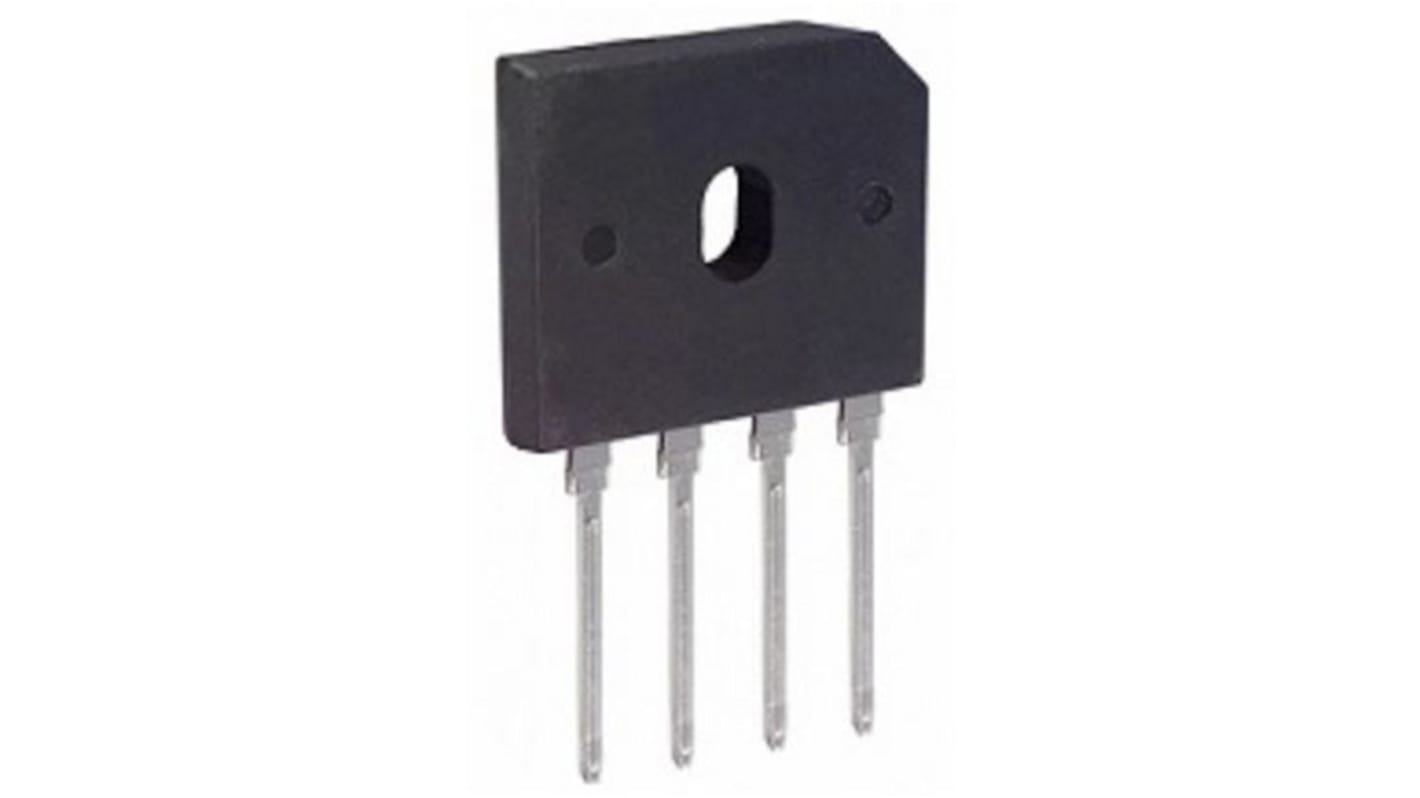

HY Electronic Corp Bridge Rectifier, 25A, 1000V, 4-Pin

View all Bridge Rectifiers
Bulk discount available

Subtotal (1 tube of 20 units)*

£9.52

(exc. VAT)

£11.42

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 100 unit(s) ready to ship
  • Plus 200 unit(s) ready to ship from another location
  • Plus 1,000 unit(s) shipping from 10 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Tube*
20 - 100£0.476£9.52
120 - 220£0.423£8.46
240 - 480£0.38£7.60
500 - 980£0.346£6.92
1000 +£0.317£6.34

*price indicative

RS Stock No.:
923-5472
Mfr. Part No.:
GBU2510
Brand:
HY Electronic Corp
Find similar products by selecting one or more attributes.
Select all

Brand

HY Electronic Corp

Bridge Type

Single Phase

Peak Average Forward Current

25A

Peak Reverse Repetitive Voltage

1000V

Mounting Type

Through Hole

Package Type

GBU

Pin Count

4

Configuration

Single

Maximum Operating Temperature

+150 °C

Minimum Operating Temperature

-55 °C

Peak Forward Voltage

1V

Peak Reverse Current

500µA

Dimensions

22.2 x 3.53 x 19.1mm

Length

22.2mm

Height

19.1mm

Width

3.53mm

Junction Capacitance

70pF

COO (Country of Origin):
CN

Bridge Rectifier - GBU Series


The GBU series of bridge rectifiers are glass passivated with a range up to 25 A forward current and 600 V or 1000 VRRM. The HY Electronic (Cayman) Limited rectifier family can reach -350 A surge overload and the plastic material has a UL Classification. It can be mounted on the PCB in any position and it transforms Alternating current (AC) into direct current (DC).

4A Surge overload rating: -150 A peak
6A Surge overload rating: -175 A peak
8A Surge overload rating: -200 A peak
10A Surge overload rating: -220 A peak
15A Surge overload rating: -240 A peak
20A Surge overload rating: -260 A peak
25A Surge overload rating: -350 A peak


Bridge Rectifiers - HY Electronic (Cayman) Limited
