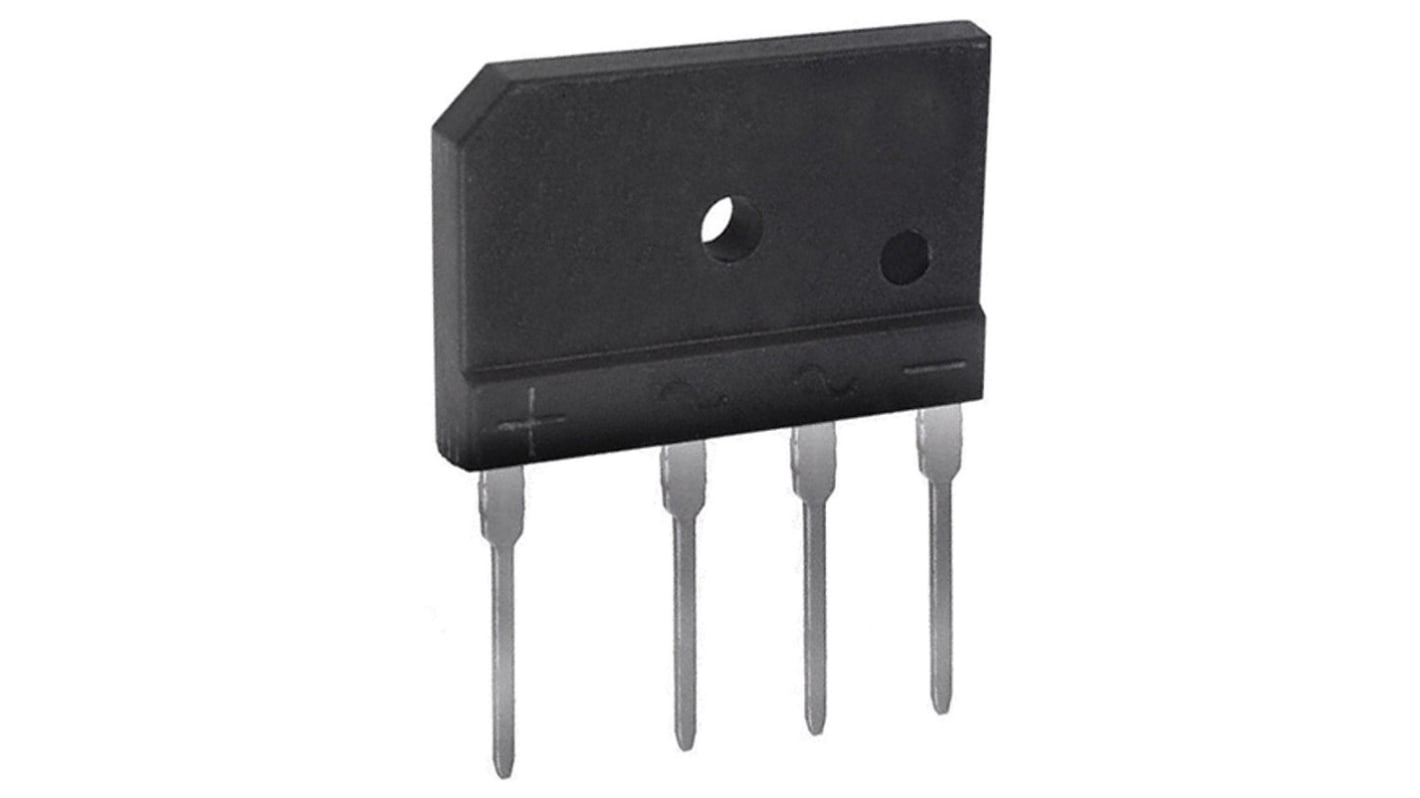

HY Electronic Corp Bridge Rectifier, 20A, 1000V, 4-Pin
- RS Stock No.:
- 923-5381
- Mfr. Part No.:
- GBJ2010
- Brand:
- HY Electronic Corp
Subtotal (1 tube of 15 units)*
£5.565
(exc. VAT)
£6.675
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- Plus 60 unit(s) shipping from 27 October 2025
- Plus 30 unit(s) shipping from 27 October 2025
- Plus 3,555 unit(s) shipping from 03 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Tube* |
|---|---|---|
| 15 + | £0.371 | £5.57 |
*price indicative
- RS Stock No.:
- 923-5381
- Mfr. Part No.:
- GBJ2010
- Brand:
- HY Electronic Corp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HY Electronic Corp | |
| Bridge Type | Single Phase | |
| Peak Average Forward Current | 20A | |
| Peak Reverse Repetitive Voltage | 1000V | |
| Mounting Type | Through Hole | |
| Package Type | GBJ | |
| Pin Count | 4 | |
| Configuration | Single | |
| Maximum Operating Temperature | +150 °C | |
| Minimum Operating Temperature | -55 °C | |
| Peak Forward Voltage | 1V | |
| Peak Reverse Current | 500µA | |
| Dimensions | 30.3 x 4.8 x 19.7mm | |
| Length | 30.3mm | |
| Width | 4.8mm | |
| Height | 19.7mm | |
| Junction Capacitance | 60pF | |
Select all | ||
|---|---|---|
Brand HY Electronic Corp | ||
Bridge Type Single Phase | ||
Peak Average Forward Current 20A | ||
Peak Reverse Repetitive Voltage 1000V | ||
Mounting Type Through Hole | ||
Package Type GBJ | ||
Pin Count 4 | ||
Configuration Single | ||
Maximum Operating Temperature +150 °C | ||
Minimum Operating Temperature -55 °C | ||
Peak Forward Voltage 1V | ||
Peak Reverse Current 500µA | ||
Dimensions 30.3 x 4.8 x 19.7mm | ||
Length 30.3mm | ||
Width 4.8mm | ||
Height 19.7mm | ||
Junction Capacitance 60pF | ||
- COO (Country of Origin):
- CN
Bridge Rectifier - GBJ Series
The GBJ series are glass passivated bridge rectifiers with a forward current that ranges from 6 A to 50 A and 600 V or 1000 VRRM. The HY Electronic (Cayman) Limited rectifier has a PRV rating of 1000 V and the plastic material have UL flammability classification. It can be mounted on the PCB and it transforms Alternating current (AC) into direct current (DC).
Flammability classification UL94V-0
Low forward voltage drop
High current capability
Low forward voltage drop
High current capability
Bridge Rectifiers - HY Electronic (Cayman) Limited
