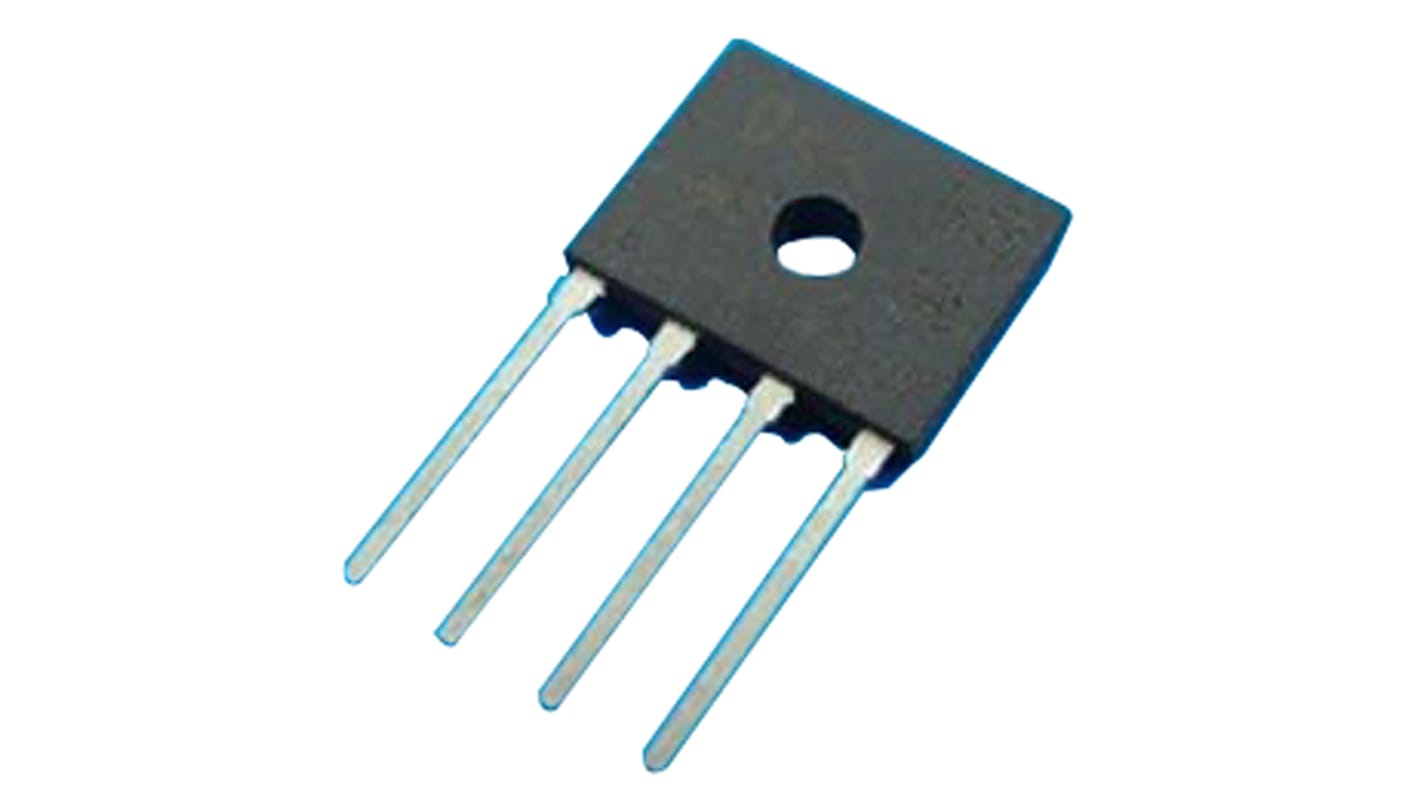

HY Electronic Corp Bridge Rectifier, 1000 V, 4-Pin Single
- RS Stock No.:
- 923-5356
- Mfr. Part No.:
- D4KB10
- Brand:
- HY Electronic Corp
Subtotal (1 tube of 30 units)*
£4.05
(exc. VAT)
£4.86
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Tube* |
|---|---|---|
| 30 + | £0.135 | £4.05 |
*price indicative
- RS Stock No.:
- 923-5356
- Mfr. Part No.:
- D4KB10
- Brand:
- HY Electronic Corp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HY Electronic Corp | |
| Product Type | Bridge Rectifier | |
| Peak Reverse Repetitive Voltage Vrrm | 1000V | |
| Mount Type | Through Hole | |
| Package Type | D-3K | |
| Pin Count | 4 | |
| Configuration | Single | |
| Maximum Operating Temperature | 150°C | |
| Minimum Operating Temperature | -55°C | |
| Peak Forward Voltage Vf | 1.1V | |
| Height | 11.1mm | |
| Length | 14.1mm | |
| Peak Reverse Current Ir | 500μA | |
| Select all | ||
|---|---|---|
Brand HY Electronic Corp | ||
Product Type Bridge Rectifier | ||
Peak Reverse Repetitive Voltage Vrrm 1000V | ||
Mount Type Through Hole | ||
Package Type D-3K | ||
Pin Count 4 | ||
Configuration Single | ||
Maximum Operating Temperature 150°C | ||
Minimum Operating Temperature -55°C | ||
Peak Forward Voltage Vf 1.1V | ||
Height 11.1mm | ||
Length 14.1mm | ||
Peak Reverse Current Ir 500μA | ||
- COO (Country of Origin):
- CN
Bridge Rectifier - D2KB / D3KB / D4KB Series
HY Electronic (Cayman) Limited D2KB / D3KB and D4KB series are surface mount glass passivated bridge rectifiers. They have forward currents of 2 A, 3 A and 4 A with reverse voltage 600 V and 1000 V. Ideal for printed circuit board applications and can be mounted in any position.
Leads: Solderable MIL-STD 202E
High case dielectric strength
High surge current capability
Plastic case: UL-94 Class V-0
Polarity symbol markings on device
