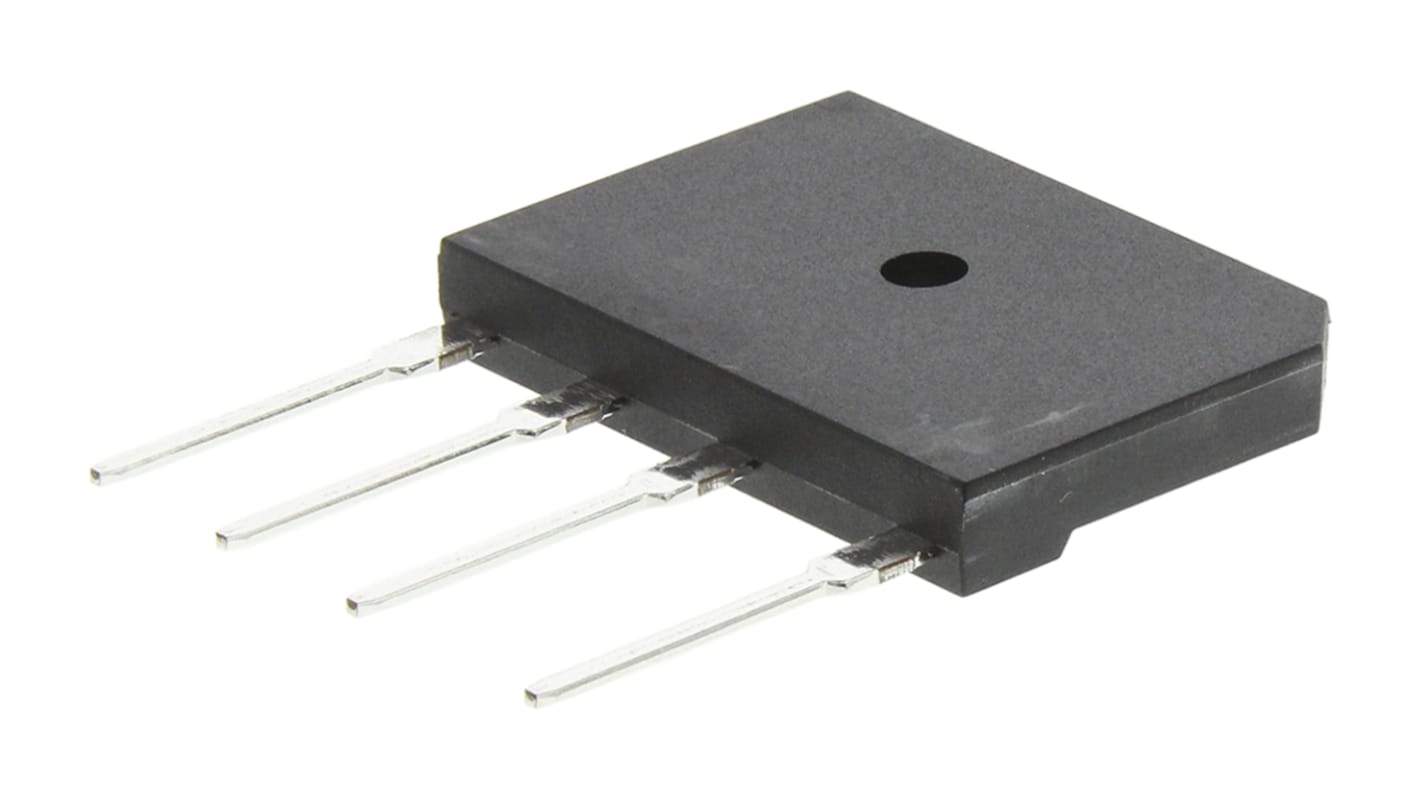

Diodes Inc Bridge Rectifier, 15A, 600V, 4-Pin

RS Stock No.:: 922-8395
Mfr. Part No.:: GBJ1506-F
Brand:: DiodesZetex

Diodes Inc Bridge Rectifier, 15A, 600V, 4-Pin

View this category

450 In stock - FREE next working day delivery available

Price Each (In a Tube of 15)

£1.275

(exc. VAT)

£1.53

(inc. VAT)

Units	Per unit	Per Tube*
15 - 60	£1.275	£19.125
75 - 285	£1.211	£18.165
300 - 735	£1.063	£15.945
750 +	£1.037	£15.555
*price indicative

RS Stock No.:: 922-8395
Mfr. Part No.:: GBJ1506-F
Brand:: DiodesZetex

Technical Reference

Legislation and Compliance

COO (Country of Origin):: CN

Product Details

SIL PCB Mounting, GBJ series

Diodes Inc GBJ series bridge rectifiers in SIL PCB Mounting package

Glass Passivated Die Construction
High Case Dielectric Strength of 2500VRMS
Low Reverse Leakage Current

Approvals

UL, E94661

Bridge Rectifiers - Diodes Inc

A Bridge Rectifier is a diode common application, known for converting an Alternating Current (AC) input into Direct Current a (DC) output. A diode bridge is an arrangement of four diodes in a bridge circuit configuration that provides the same polarity of output for either polarity of input.

Specifications

Attribute	Value
Peak Average Forward Current	15A
Bridge Type	Single Phase
Peak Reverse Repetitive Voltage	600V
Mounting Type	Through Hole
Package Type	GBJ
Pin Count	4
Diode Technology	Silicon Junction
Configuration	Single
Peak Non-Repetitive Forward Surge Current	240A
Maximum Operating Temperature	+150 °C
Minimum Operating Temperature	-65 °C
Peak Forward Voltage	1.05V
Peak Reverse Current	500µA
Length	30.3mm
Dimensions	30.3 x 4.8 x 20.3mm
Height	20.3mm
Width	4.8mm
