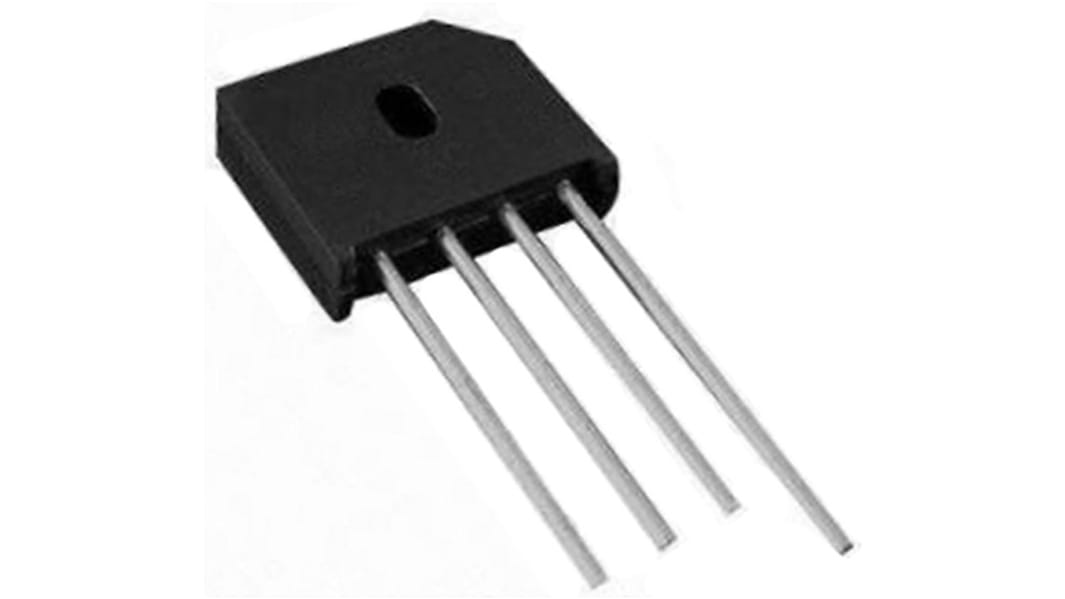

HY Electronic Corp Bridge Rectifier, 600 V 300 A, 4-Pin Single

View all Bridge Rectifiers
Unavailable
RS will no longer stock this product.
Packaging Options:
RS Stock No.:
917-8896
Mfr. Part No.:
KBU806
Brand:
HY Electronic Corp
Find similar products by selecting one or more attributes.
Select all

Brand

HY Electronic Corp

Product Type

Bridge Rectifier

Peak Reverse Repetitive Voltage Vrrm

600V

Mount Type

Through Hole

Number of Phases

1

Package Type

KBU

Pin Count

4

Configuration

Single

Maximum Operating Temperature

125°C

Forward Current If

8A

Minimum Operating Temperature

-55°C

Peak Non-Repetitive Forward Surge Current Ifsm

300A

Peak Forward Voltage Vf

1.1V

Width

7.1 mm

Series

KBU6

Standards/Approvals

No

Length

23.7mm

Height

19.3mm

Peak Reverse Current Ir

10μA

Automotive Standard

No

COO (Country of Origin):
CN

Bridge Rectifier - KBU Series


The KBU Series offers a range of bridge rectifiers in 600 V/1000 V with a forward current of 6A up to 25A. There are two types available, the silicon or the glass passivated type (G suffix). They are widely seen on printed circuit board (PCB) applications and are used for AC to DC conversion.

Plastic material has U/L flammability classification 94V-0

Surge overload rating:

-175 A peak - KBU606 / KBU610

-150 A peak - KBU606G / KBU610G

-200 A peak - KBU806 / KBU810

-175 A peak - KBU806G / KBU810G

-240 A peak - KBU1006 / KBU1010

-200 A peak - KBU1006G / KBU1010G

-300 A peak - KBU1506 / KBU1510

-250 A peak - KBU1506G / KBU1510G

-400 A peak KBU2506 / KBU2510

Bridge Rectifiers - HY Electronic (Cayman) Limited
