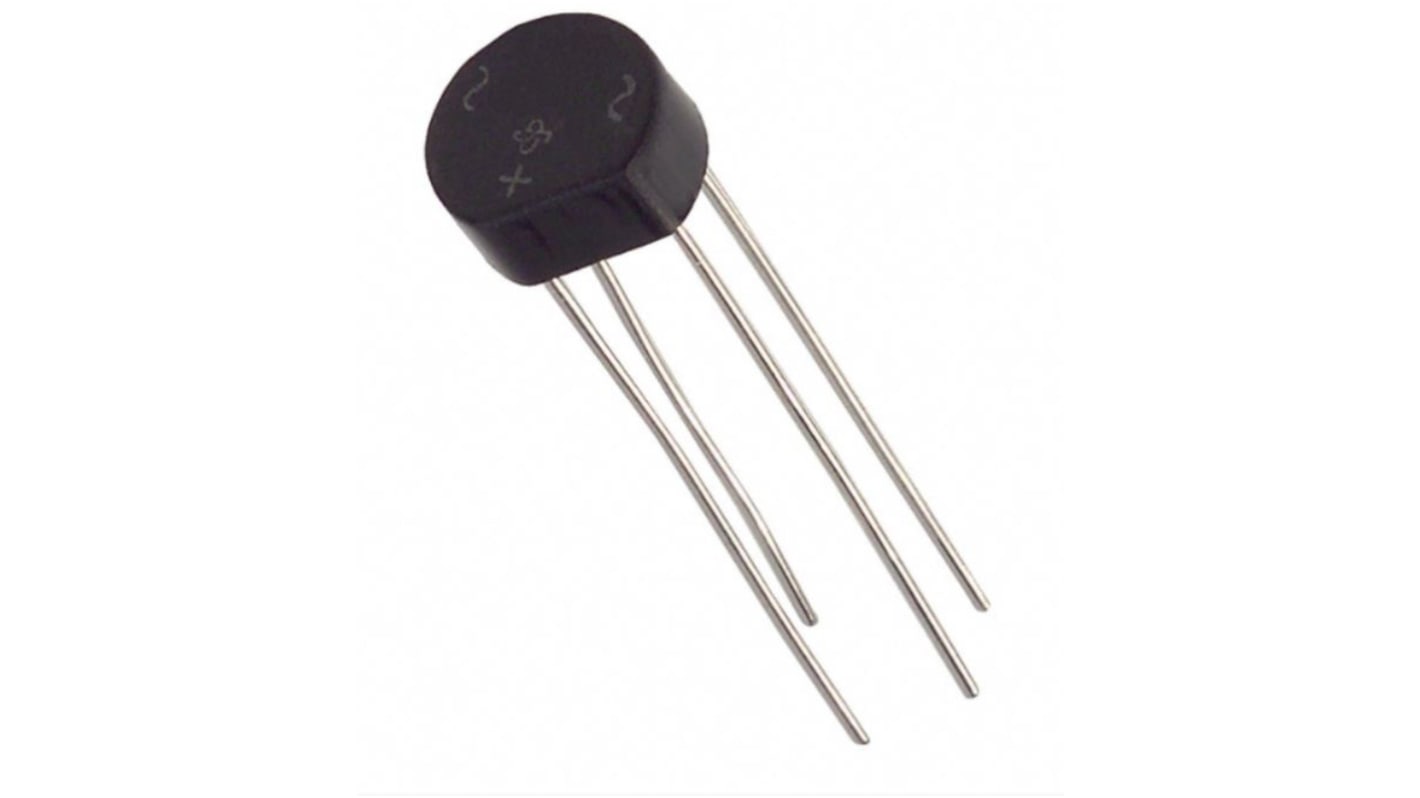

Vishay Bridge Rectifier, 1.2A, 125V, 4-Pin
- RS Stock No.:
- 815-1165
- Mfr. Part No.:
- B80C1000G-E4/51
- Brand:
- Vishay
Bulk discount available
Subtotal (1 pack of 25 units)*
£10.875
(exc. VAT)
£13.05
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 300 unit(s) ready to ship
- Plus 275 unit(s) shipping from 28 October 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 25 - 225 | £0.435 | £10.88 |
| 250 - 600 | £0.334 | £8.35 |
| 625 - 1225 | £0.304 | £7.60 |
| 1250 - 2475 | £0.226 | £5.65 |
| 2500 + | £0.204 | £5.10 |
*price indicative
- RS Stock No.:
- 815-1165
- Mfr. Part No.:
- B80C1000G-E4/51
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Bridge Type | Single Phase | |
| Peak Average Forward Current | 1.2A | |
| Peak Reverse Repetitive Voltage | 125V | |
| Mounting Type | Through Hole | |
| Package Type | WOG | |
| Pin Count | 4 | |
| Configuration | Single | |
| Peak Non-Repetitive Forward Surge Current | 45A | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Temperature | -40 °C | |
| Peak Forward Voltage | 1V | |
| Peak Reverse Current | 10µA | |
| Length | 9.86mm | |
| Dimensions | 9.86 x 8.84 x 5.6mm | |
| Width | 8.84mm | |
| Height | 5.6mm | |
Select all | ||
|---|---|---|
Brand Vishay | ||
Bridge Type Single Phase | ||
Peak Average Forward Current 1.2A | ||
Peak Reverse Repetitive Voltage 125V | ||
Mounting Type Through Hole | ||
Package Type WOG | ||
Pin Count 4 | ||
Configuration Single | ||
Peak Non-Repetitive Forward Surge Current 45A | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Temperature -40 °C | ||
Peak Forward Voltage 1V | ||
Peak Reverse Current 10µA | ||
Length 9.86mm | ||
Dimensions 9.86 x 8.84 x 5.6mm | ||
Width 8.84mm | ||
Height 5.6mm | ||
- COO (Country of Origin):
- CN
Bridge Rectifiers with Wire Leads, B...C1000G Series, Vishay Semiconductor
Low forward voltage drop
High dielectric strength case
Wire Lead structure for Printed Circuit Board (PCB) through hole mounting
High dielectric strength case
Wire Lead structure for Printed Circuit Board (PCB) through hole mounting
Bridge Rectifiers - Vishay Semiconductor
The Bridge Rectifier converts an Alternating Current (AC) input into a Direct Current (DC) output for full-wave rectification applications. The diode arrangement provides the same polarity of output for either polarity of input. A three-phase full-wave rectifier is an arrangement of six diodes in a bridge circuit configuration. The packages are designed for minimal size, highest reliability and maximum thermal performance.
