Vishay Bridge Rectifier, 25A, 800V, 4-Pin
- RS Stock No.:
- 700-5469
- Mfr. Part No.:
- GSIB2580-E3/45
- Brand:
- Vishay
358 In stock - FREE next working day delivery available
18 available from Europe for delivery within 1 working day(s).
Added
Price Each (In a Pack of 2)
£2.185
(exc. VAT)
£2.622
(inc. VAT)
| Units | Per unit | Per Pack* |
| 2 - 18 | £2.185 | £4.37 |
| 20 - 98 | £1.94 | £3.88 |
| 100 - 198 | £1.89 | £3.78 |
| 200 - 498 | £1.84 | £3.68 |
| 500 + | £1.79 | £3.58 |
| *price indicative | ||
- RS Stock No.:
- 700-5469
- Mfr. Part No.:
- GSIB2580-E3/45
- Brand:
- Vishay
Legislation and Compliance
Product Details

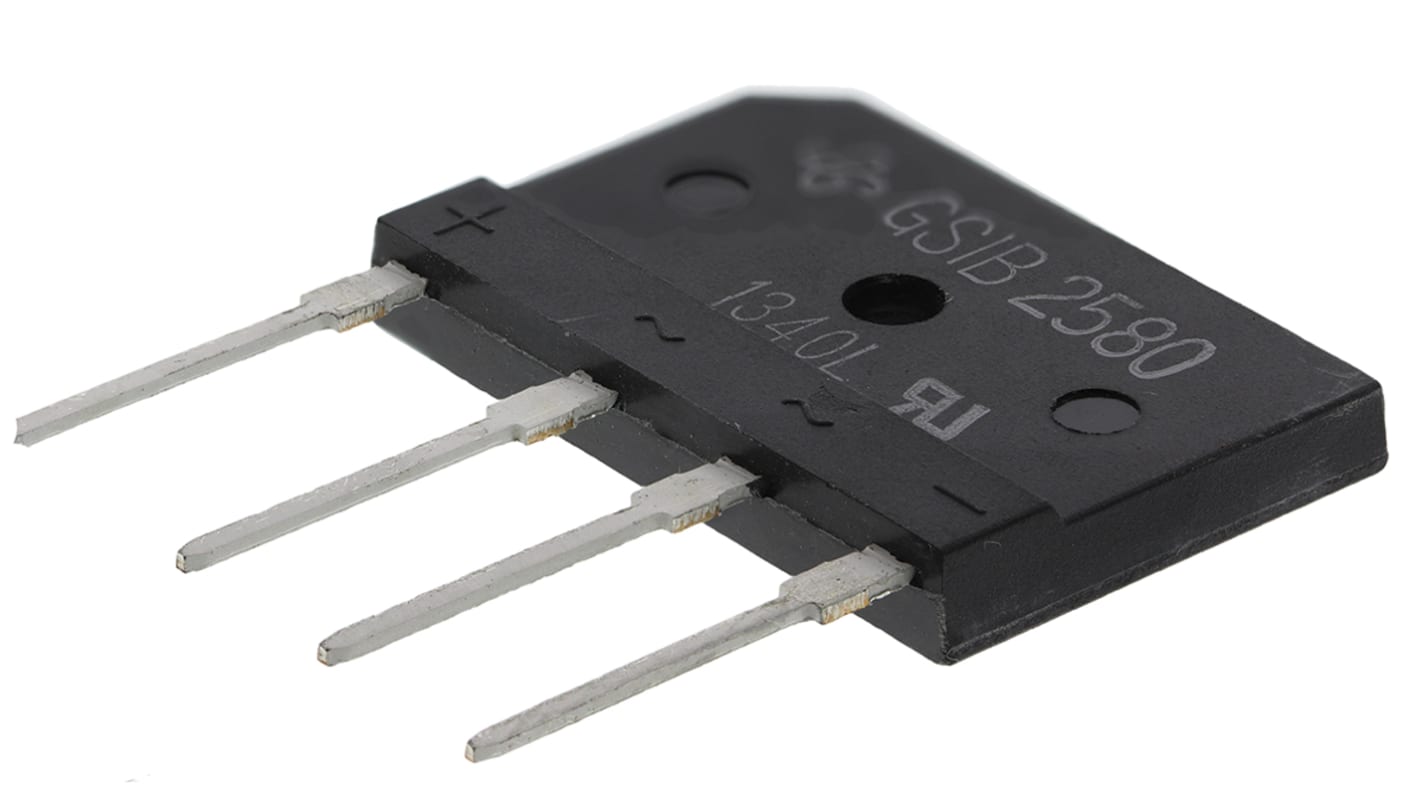

SIL PCB Mounting, GSIB-5 Series, Vishay Semiconductor
GSIB-5 series bridge rectifiers in SIL PCB Mounting package from Vishay Semiconductor
Thin Single In-Line GSIB-5 package
Glass passivated chip junction
High surge current capability
High dielectric strength case of 2500Vrms
Soldering pins for Printed Circuit Board (PCB) through-hole mounting
Glass passivated chip junction
High surge current capability
High dielectric strength case of 2500Vrms
Soldering pins for Printed Circuit Board (PCB) through-hole mounting
Approvals
UL file E54214
Bridge Rectifiers - Vishay Semiconductor
The Bridge Rectifier converts an Alternating Current (AC) input into a Direct Current (DC) output for full-wave rectification applications. The diode arrangement provides the same polarity of output for either polarity of input. A three-phase full-wave rectifier is an arrangement of six diodes in a bridge circuit configuration. The packages are designed for minimal size, highest reliability and maximum thermal performance.
Specifications
Attribute | Value |
|---|---|
| Bridge Type | Single Phase |
| Peak Average Forward Current | 25A |
| Peak Reverse Repetitive Voltage | 800V |
| Mounting Type | Through Hole |
| Package Type | GSIB-5S |
| Pin Count | 4 |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 350A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1V |
| Peak Reverse Current | 10µA |
| Dimensions | 30 x 4.6 x 20mm |
| Length | 30mm |
| Height | 20mm |
| Width | 4.6mm |
