Vishay Bridge Rectifier, 2A, 600V, 4-Pin
- RS Stock No.:
- 629-3012
- Mfr. Part No.:
- GBPC106-E4
- Brand:
- Vishay

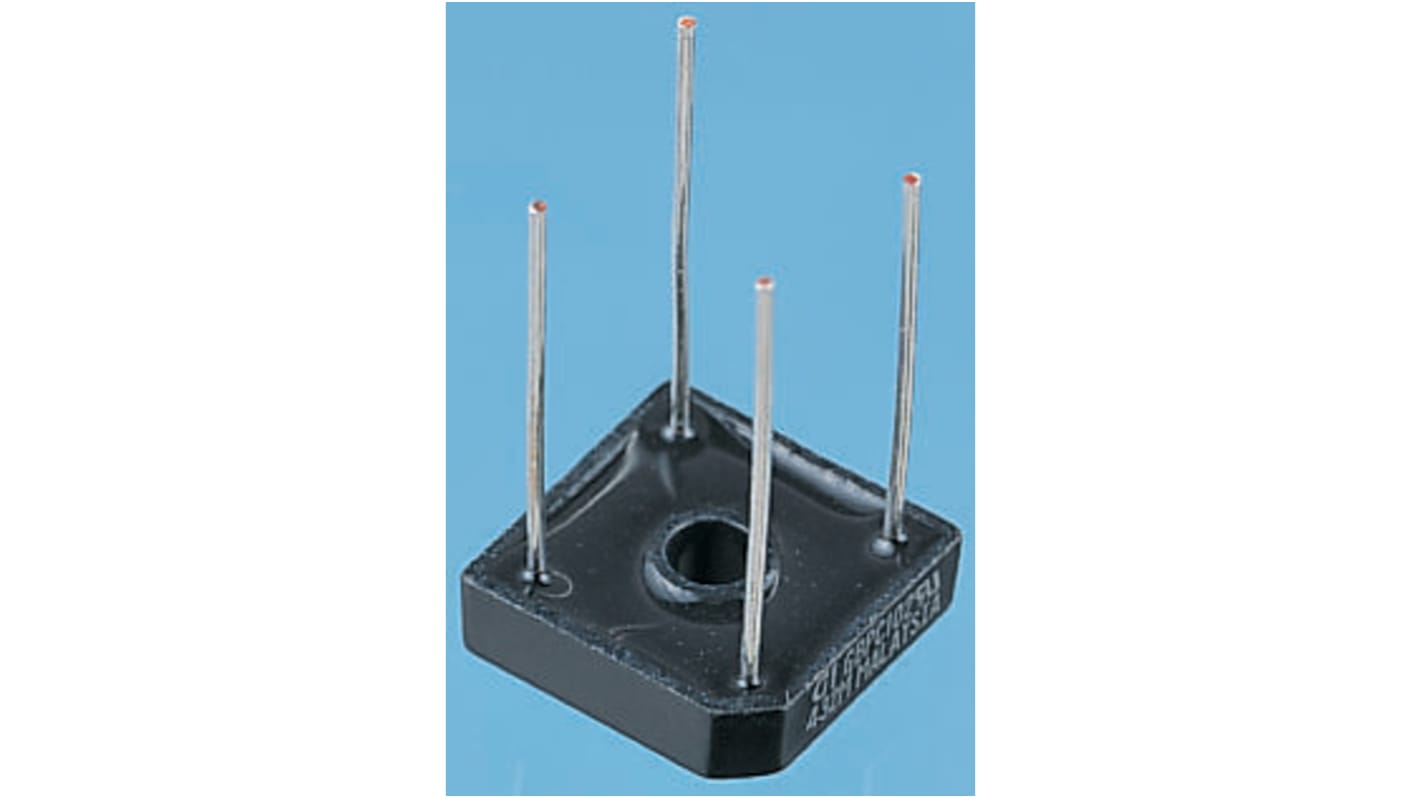

Image representative of range
Discontinued
- RS Stock No.:
- 629-3012
- Mfr. Part No.:
- GBPC106-E4
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Peak Average Forward Current | 2A | |
| Bridge Type | Single Phase | |
| Peak Reverse Repetitive Voltage | 600V | |
| Mounting Type | Through Hole | |
| Package Type | GBPC1 | |
| Pin Count | 4 | |
| Configuration | Single | |
| Peak Non-Repetitive Forward Surge Current | 60A | |
| Maximum Operating Temperature | +150 °C | |
| Minimum Operating Temperature | -55 °C | |
| Peak Forward Voltage | 1V | |
| Peak Reverse Current | 5µA | |
| Dimensions | 16 x 16 x 5.08mm | |
| Length | 16mm | |
| Width | 16mm | |
| Height | 5.08mm | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Peak Average Forward Current 2A | ||
Bridge Type Single Phase | ||
Peak Reverse Repetitive Voltage 600V | ||
Mounting Type Through Hole | ||
Package Type GBPC1 | ||
Pin Count 4 | ||
Configuration Single | ||
Peak Non-Repetitive Forward Surge Current 60A | ||
Maximum Operating Temperature +150 °C | ||
Minimum Operating Temperature -55 °C | ||
Peak Forward Voltage 1V | ||
Peak Reverse Current 5µA | ||
Dimensions 16 x 16 x 5.08mm | ||
Length 16mm | ||
Width 16mm | ||
Height 5.08mm | ||
Bridge Rectifiers for PCB Mounting, GBPC1 Series, Vishay Semiconductor
Suitable for Printed Circuit Board (PCB) mounting
Typical DC Reverse Current less than 0.1μA
Wire lead structure
Typical DC Reverse Current less than 0.1μA
Wire lead structure
Approvals
UL, E54214
Bridge Rectifiers - Vishay Semiconductor
The Bridge Rectifier converts an Alternating Current (AC) input into a Direct Current (DC) output for full-wave rectification applications. The diode arrangement provides the same polarity of output for either polarity of input. A three-phase full-wave rectifier is an arrangement of six diodes in a bridge circuit configuration. The packages are designed for minimal size, highest reliability and maximum thermal performance.
