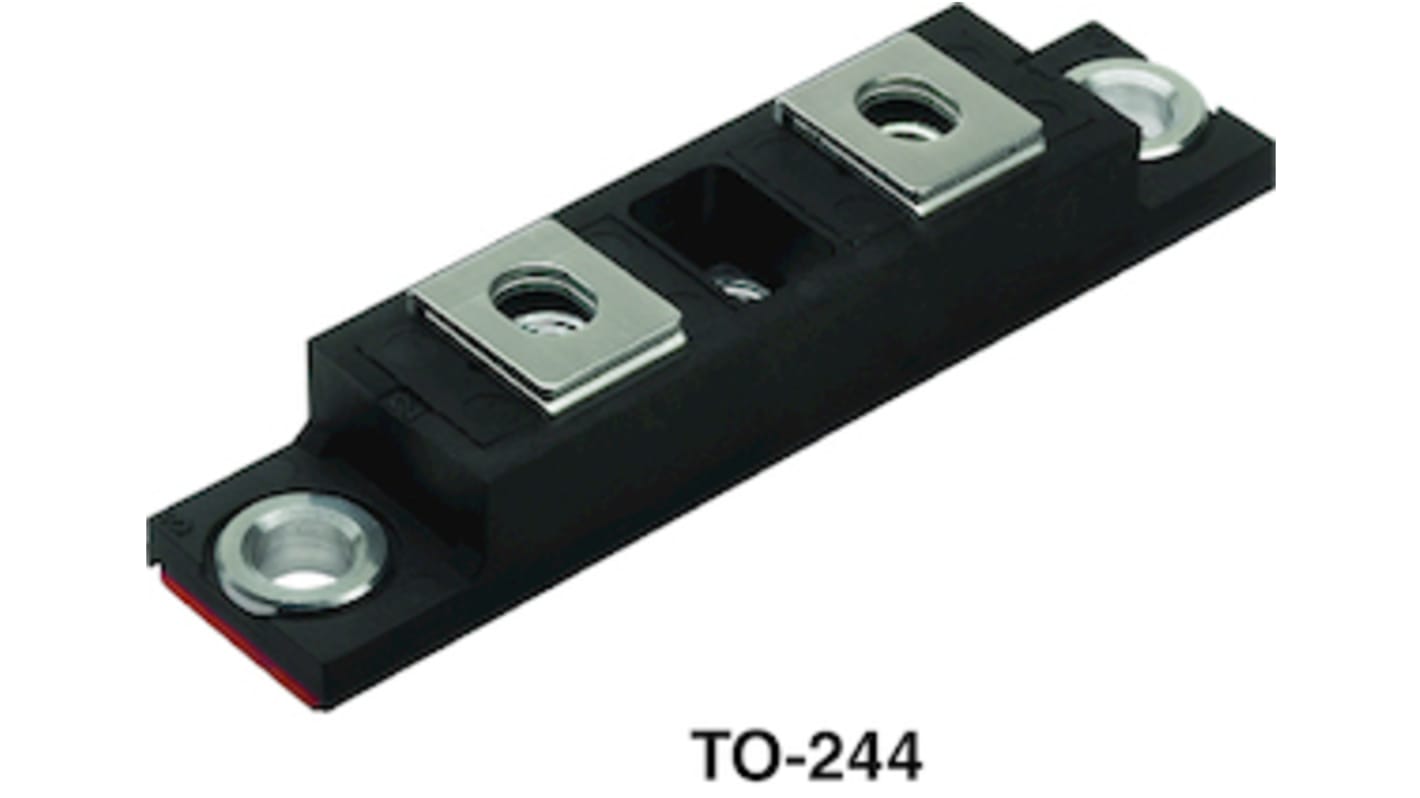

Vishay Diode, 600 V 1150 A, 2-Pin
- RS Stock No.:
- 253-2750
- Mfr. Part No.:
- VS-VS5HD300CW60
- Brand:
- Vishay
Bulk discount available
Subtotal (1 unit)*
£28.14
(exc. VAT)
£33.77
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- Shipping from 09 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 1 | £28.14 |
| 2 - 4 | £27.29 |
| 5 - 9 | £26.74 |
| 10 + | £25.61 |
*price indicative
- RS Stock No.:
- 253-2750
- Mfr. Part No.:
- VS-VS5HD300CW60
- Brand:
- Vishay
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Product Type | Diode | |
| Peak Reverse Repetitive Voltage Vrrm | 600V | |
| Mount Type | Surface | |
| Package Type | TO-244 | |
| Pin Count | 2 | |
| Maximum Operating Temperature | 175°C | |
| Forward Current If | 300A | |
| Peak Non-Repetitive Forward Surge Current Ifsm | 1150A | |
| Minimum Operating Temperature | -40°C | |
| Peak Forward Voltage Vf | 2.2V | |
| Height | 21mm | |
| Length | 93mm | |
| Peak Reverse Current Ir | 0.7mA | |
| Standards/Approvals | UL approved file E222165 | |
| Series | VS-VS5HD300CW60 | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Vishay | ||
Product Type Diode | ||
Peak Reverse Repetitive Voltage Vrrm 600V | ||
Mount Type Surface | ||
Package Type TO-244 | ||
Pin Count 2 | ||
Maximum Operating Temperature 175°C | ||
Forward Current If 300A | ||
Peak Non-Repetitive Forward Surge Current Ifsm 1150A | ||
Minimum Operating Temperature -40°C | ||
Peak Forward Voltage Vf 2.2V | ||
Height 21mm | ||
Length 93mm | ||
Peak Reverse Current Ir 0.7mA | ||
Standards/Approvals UL approved file E222165 | ||
Series VS-VS5HD300CW60 | ||
Automotive Standard No | ||
The Vishay Ultrafast Rectifier Diode, 600 V, 300 A featuring a unique combination of low conduction and switching losses the FRED Pt® Gen 5 is the right choice for
soft switched and resonant converters, as well as medium frequency hard switching converters. These devices are also ideally suited for HF welding, power converters, and other applications where switching losses are significant portion of the total losses.
Ultrafast and optimized Qrr
Best in class forward voltage drop and switching losses trade off
Optimized for high speed operation
175 °C maximum operation junction temperature
