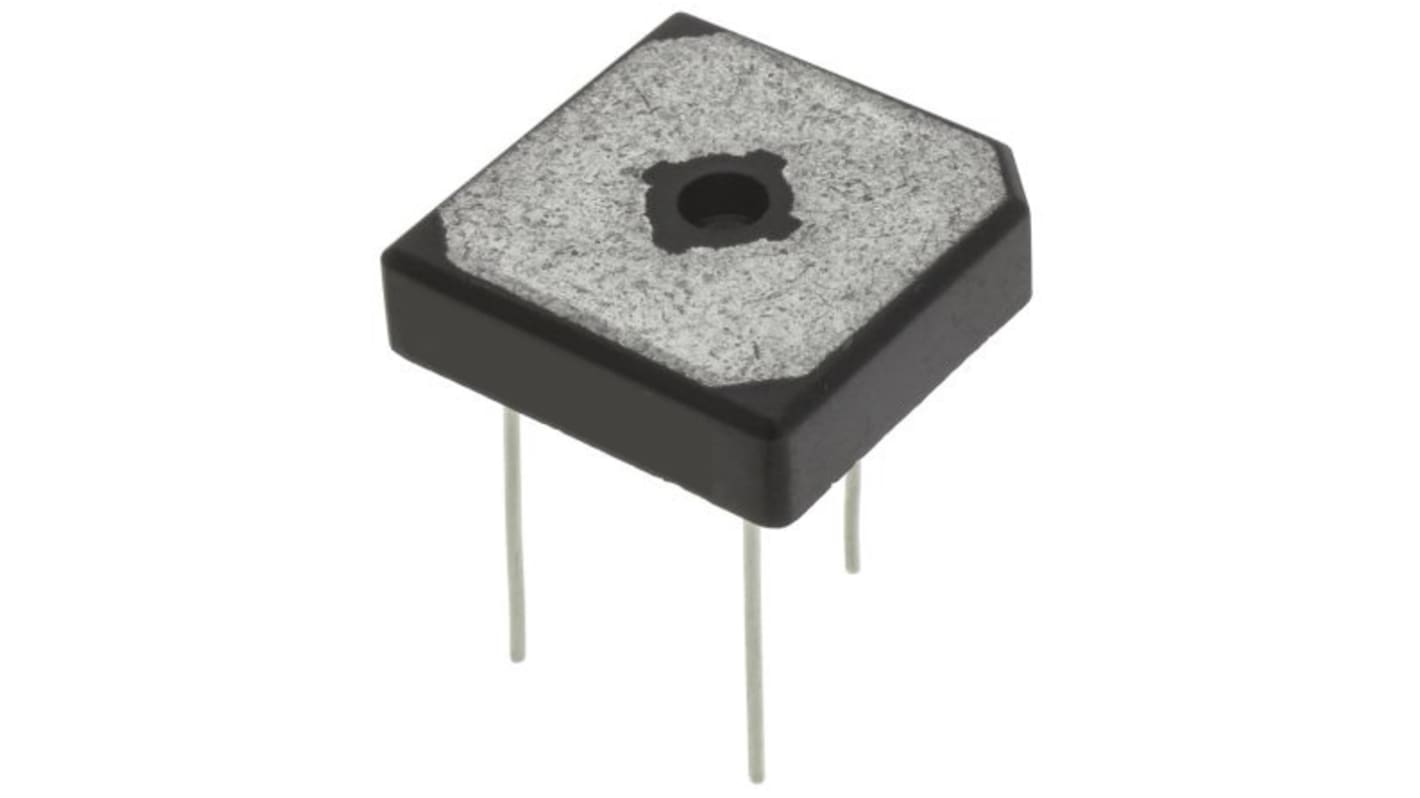

onsemi Bridge Rectifier, 35A, 1000V, 4-Pin
- RS Stock No.:
- 184-4752
- Mfr. Part No.:
- GBPC3510W
- Brand:
- onsemi
90 In stock - FREE next working day delivery available
Added
Price Each (In a Pack of 5)
£4.41
(exc. VAT)
£5.29
(inc. VAT)
| Units | Per unit | Per Pack* |
| 5 - 20 | £4.41 | £22.05 |
| 25 + | £3.658 | £18.29 |
| *price indicative | ||
- RS Stock No.:
- 184-4752
- Mfr. Part No.:
- GBPC3510W
- Brand:
- onsemi
Technical Reference
Legislation and Compliance
- COO (Country of Origin):
- CN
Product Details
Integrally molded heatsink provided very low thermal resistance for maximum heat dissipation
Surge overload ratings from 300 A to 400 A
Isolated voltage from case to lead over 2500 V
Terminals Finish Material - Silver - Nickel for GBPC package
Applications
This product is general usage and suitable for many different applications
Surge overload ratings from 300 A to 400 A
Isolated voltage from case to lead over 2500 V
Terminals Finish Material - Silver - Nickel for GBPC package
Applications
This product is general usage and suitable for many different applications
Specifications
Attribute | Value |
|---|---|
| Peak Average Forward Current | 35A |
| Bridge Type | Single Phase |
| Peak Reverse Repetitive Voltage | 1000V |
| Mounting Type | Through Hole |
| Package Type | GBPC-W |
| Pin Count | 4 |
| Configuration | Single |
| Peak Non-Repetitive Forward Surge Current | 300 → 400A |
| Maximum Operating Temperature | +150 °C |
| Minimum Operating Temperature | -55 °C |
| Peak Forward Voltage | 1.1V |
| Peak Reverse Current | 500µA |
| Dimensions | 29 x 29 x 11.23mm |
| Length | 29mm |
| Junction Capacitance | 200pF |
| Height | 11.23mm |
| Width | 29mm |
