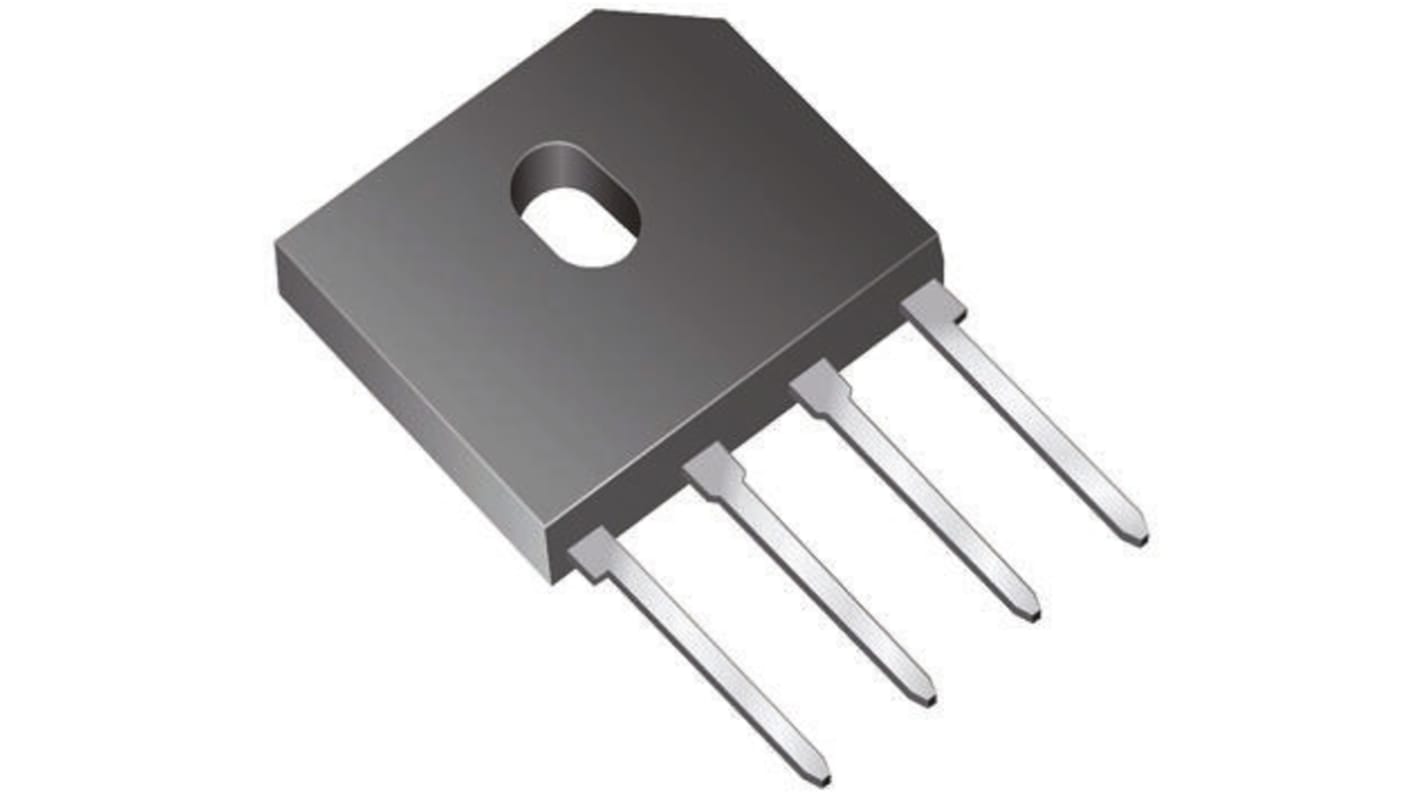

Vishay Bridge Rectifier, 3.8A, 600V, 4-Pin
- RS Stock No.:
- 165-2866
- Mfr. Part No.:
- GBU6J-E3/51
- Brand:
- Vishay
Bulk discount available
Subtotal (1 box of 250 units)*
£291.00
(exc. VAT)
£349.25
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 500 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 250 - 250 | £1.164 | £291.00 |
| 500 + | £1.106 | £276.50 |
*price indicative
- RS Stock No.:
- 165-2866
- Mfr. Part No.:
- GBU6J-E3/51
- Brand:
- Vishay
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Peak Average Forward Current | 3.8A | |
| Bridge Type | Single Phase | |
| Peak Reverse Repetitive Voltage | 600V | |
| Mounting Type | Through Hole | |
| Package Type | GBU | |
| Pin Count | 4 | |
| Diode Technology | Silicon Junction | |
| Configuration | Single | |
| Peak Non-Repetitive Forward Surge Current | 175A | |
| Maximum Operating Temperature | +150 °C | |
| Minimum Operating Temperature | -55 °C | |
| Peak Forward Voltage | 1V | |
| Peak Reverse Current | 5µA | |
| Length | 22.3mm | |
| Dimensions | 22.3 x 3.56 x 18.8mm | |
| Width | 3.56mm | |
| Height | 18.8mm | |
