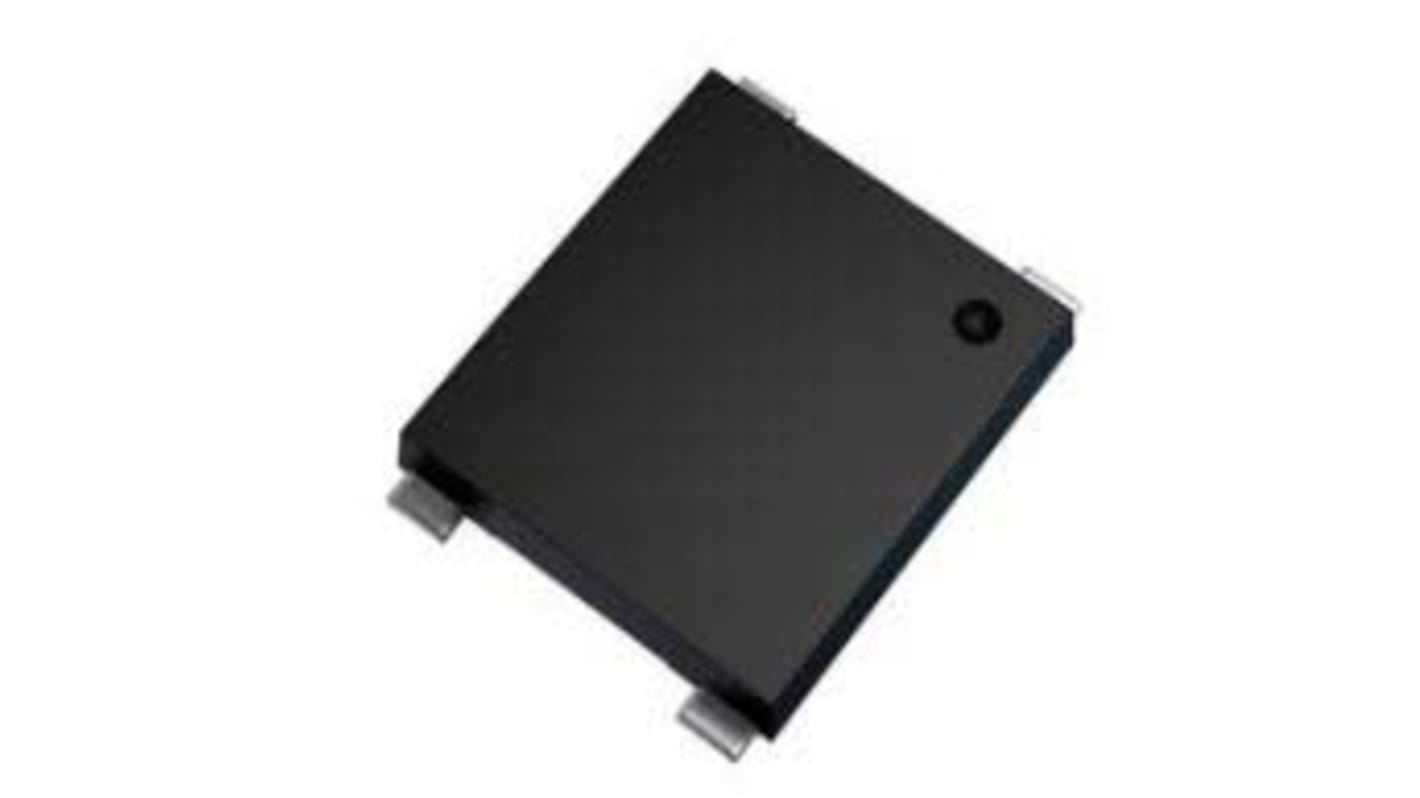

DiodesZetex Bridge Rectifier, 1000 V 100 A, 4-Pin Single

View all Bridge Rectifiers

Subtotal (1 reel of 2500 units)*

£515.00

(exc. VAT)

£617.50

(inc. VAT)

Add to Basket
Select or type quantity
Orders below £50.00 (exc. VAT) cost £6.95.
Temporarily out of stock
  • Shipping from 22 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
Per Reel*
2500 +£0.206£515.00

*price indicative

RS Stock No.:
146-4739
Mfr. Part No.:
MSB30M-13
Brand:
DiodesZetex
Find similar products by selecting one or more attributes.
Select all

Brand

DiodesZetex

Product Type

Bridge Rectifier

Peak Reverse Repetitive Voltage Vrrm

1000V

Mount Type

Surface

Package Type

MSBL

Number of Phases

1

Pin Count

4

Configuration

Single

Maximum Operating Temperature

150°C

Peak Non-Repetitive Forward Surge Current Ifsm

100A

Minimum Operating Temperature

-55°C

Forward Current If

3A

Peak Forward Voltage Vf

1.1V

Peak Reverse Current Ir

5μA

Width

7.4 mm

Series

MSBL

Standards/Approvals

No

Height

1.42mm

Length

6.7mm

Automotive Standard

No

Surface Mount Glass Passivated Bridge Rectifier in MSBL Package, Diodes Inc


Glass Passivated Die Construction

Compact, Thin Profile Package

Reliable Robust Construction

Flammability Rating UL 94V-0

Bridge Rectifiers - Diodes Inc


A Bridge Rectifier is a diode common application, known for converting an Alternating Current (AC) input into Direct Current a (DC) output. A diode bridge is an arrangement of four diodes in a bridge circuit configuration that provides the same polarity of output for either polarity of input.
