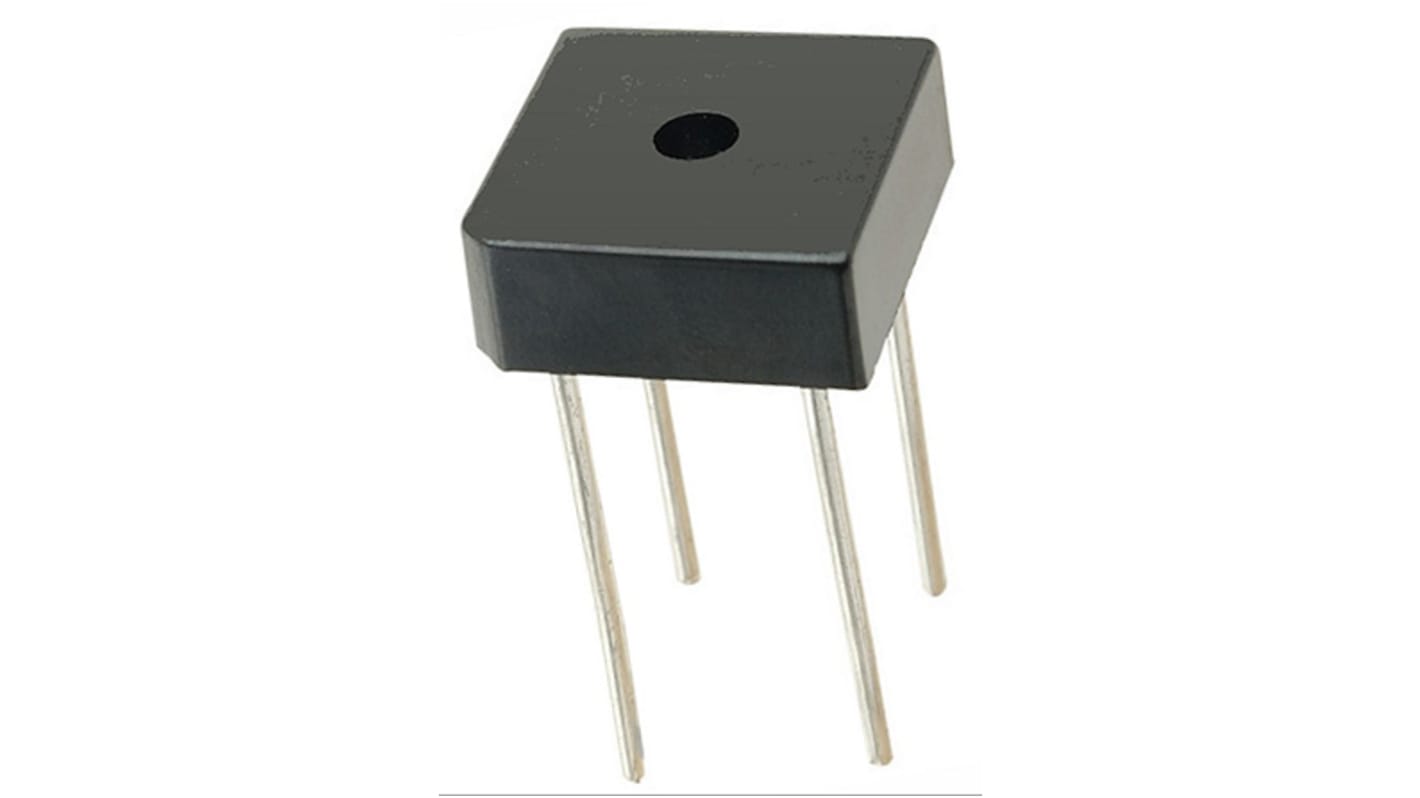

HY Electronic Corp Bridge Rectifier, 2A, 600V, 4-Pin
- RS Stock No.:
- 146-2211
- Mfr. Part No.:
- TBP206G
- Brand:
- HY Electronic Corp
Discontinued
- RS Stock No.:
- 146-2211
- Mfr. Part No.:
- TBP206G
- Brand:
- HY Electronic Corp
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | HY Electronic Corp | |
| Bridge Type | Single Phase | |
| Peak Average Forward Current | 2A | |
| Peak Reverse Repetitive Voltage | 600V | |
| Mounting Type | Through Hole | |
| Package Type | TBP | |
| Pin Count | 4 | |
| Diode Technology | Silicon Junction | |
| Diode Type | Silicon Junction | |
| Configuration | Single | |
| Peak Non-Repetitive Forward Surge Current | 60A | |
| Maximum Operating Temperature | +150 °C | |
| Minimum Operating Temperature | -55 °C | |
| Peak Forward Voltage | 1.1V | |
| Peak Reverse Current | 10µA | |
| Length | 15.24mm | |
| Dimensions | 15.24 x 3.9 x 11.68mm | |
| Width | 3.9mm | |
| Height | 11.68mm | |
| Select all | ||
|---|---|---|
Brand HY Electronic Corp | ||
Bridge Type Single Phase | ||
Peak Average Forward Current 2A | ||
Peak Reverse Repetitive Voltage 600V | ||
Mounting Type Through Hole | ||
Package Type TBP | ||
Pin Count 4 | ||
Diode Technology Silicon Junction | ||
Diode Type Silicon Junction | ||
Configuration Single | ||
Peak Non-Repetitive Forward Surge Current 60A | ||
Maximum Operating Temperature +150 °C | ||
Minimum Operating Temperature -55 °C | ||
Peak Forward Voltage 1.1V | ||
Peak Reverse Current 10µA | ||
Length 15.24mm | ||
Dimensions 15.24 x 3.9 x 11.68mm | ||
Width 3.9mm | ||
Height 11.68mm | ||
- COO (Country of Origin):
- CN
Bridge Rectifier - TBP Series
The TBP series of bridge rectifiers are glass passivated version with 2 A forward current and 600 V or 1000 VRRM. The HY Electronic (Cayman) Limited rectifier has a surge overload of -60 A and the plastic material has a UL Classification. It can be mounted on the PCB in any position and it transforms alternating current (AC) into direct current (DC).
Flammability classification UL94V-0
Bridge Rectifiers - HY Electronic (Cayman) Limited
