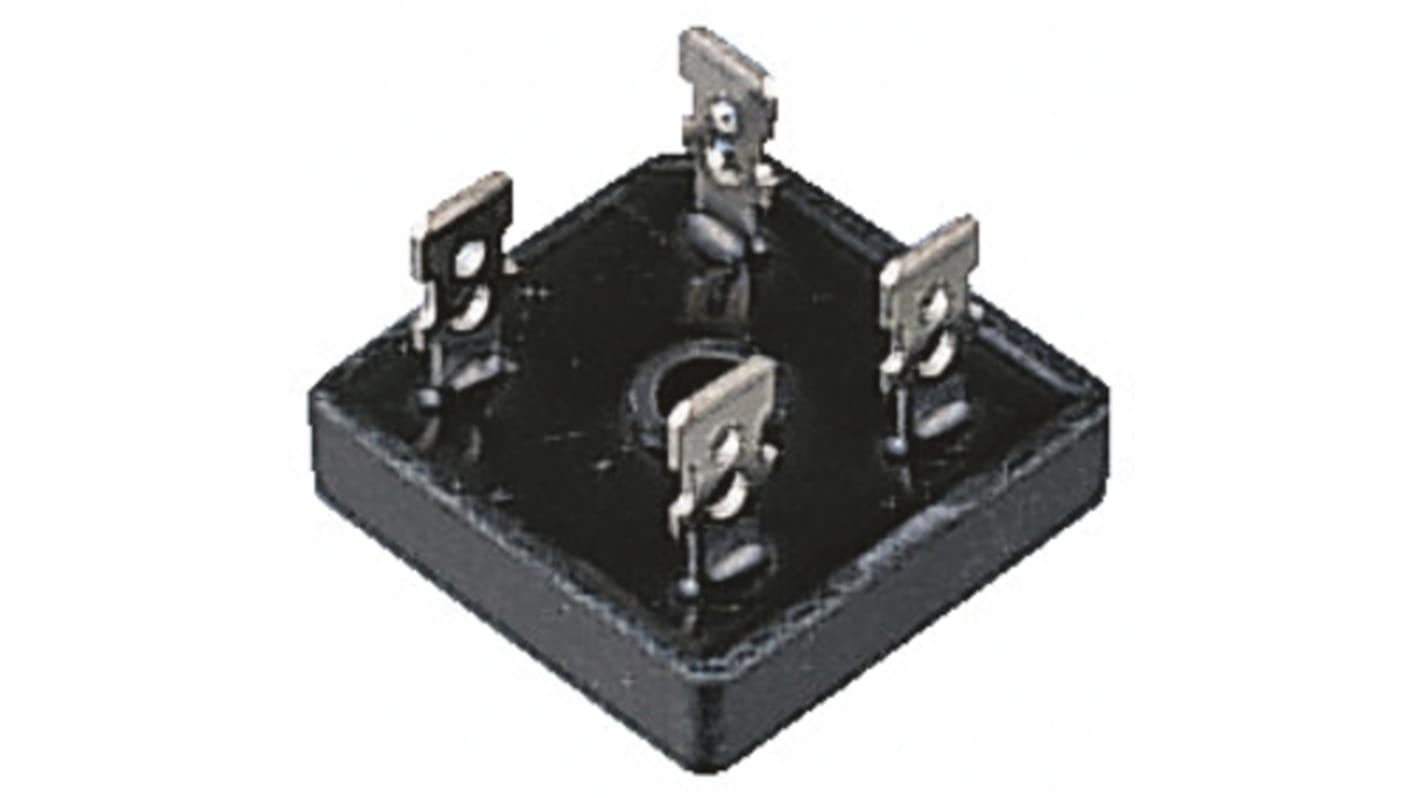

Vishay Bridge Rectifier, 12A, 600V, 4-Pin
- RS Stock No.:
- 145-2674
- Mfr. Part No.:
- GBPC1206-E4/51
- Brand:
- Vishay
Subtotal (1 box of 100 units)*
£244.10
(exc. VAT)
£292.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 2,600 unit(s) ready to ship
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Box* |
|---|---|---|
| 100 + | £2.441 | £244.10 |
*price indicative
- RS Stock No.:
- 145-2674
- Mfr. Part No.:
- GBPC1206-E4/51
- Brand:
- Vishay
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Vishay | |
| Bridge Type | Single Phase | |
| Peak Average Forward Current | 12A | |
| Peak Reverse Repetitive Voltage | 600V | |
| Mounting Type | Screw Mount | |
| Package Type | GBPC | |
| Pin Count | 4 | |
| Diode Technology | Silicon Junction | |
| Configuration | Single | |
| Peak Non-Repetitive Forward Surge Current | 200A | |
| Maximum Operating Temperature | +150 °C | |
| Minimum Operating Temperature | -55 °C | |
| Peak Forward Voltage | 1.1V | |
| Peak Reverse Current | 500µA | |
| Length | 28.8mm | |
| Dimensions | 28.8 x 28.8 x 7.87mm | |
| Width | 28.8mm | |
| Height | 7.87mm | |
