- RS Stock No.:
- 194-6463
- Mfr. Part No.:
- 410-391
- Brand:
- Digilent
38 In stock - FREE next working day delivery available
Added
Price Each
£41.36
(exc. VAT)
£49.63
(inc. VAT)
Units | Per unit |
1 + | £41.36 |
- RS Stock No.:
- 194-6463
- Mfr. Part No.:
- 410-391
- Brand:
- Digilent
Technical Reference
Legislation and Compliance
Product Details

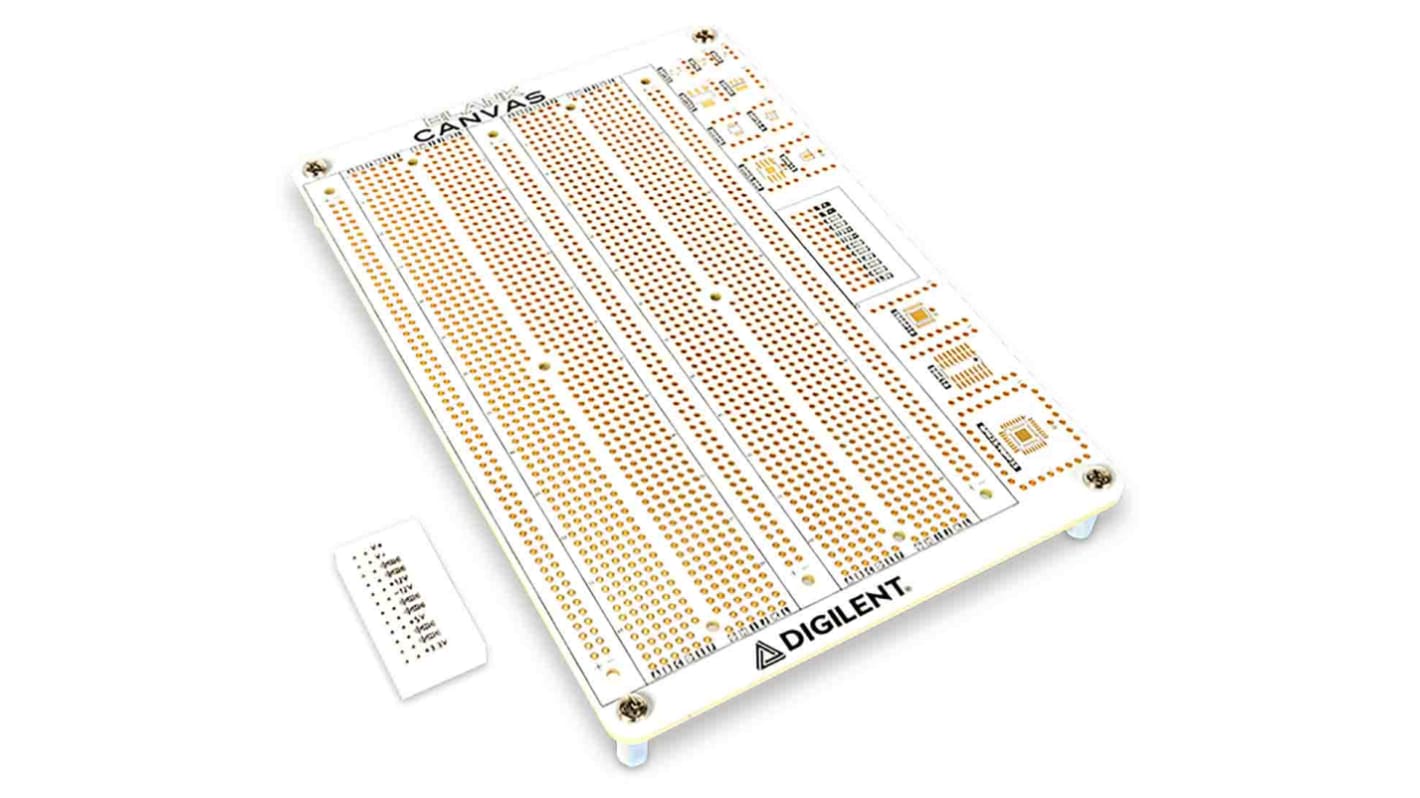

The Digilent blank canvas which provides a large prototyping surface for the analogue discovery studio and connections to the six power supplies (3.3V, 5V, ±12V, ± variable). The large prototyping surface has been wired in the configuration of two standard breadboards with 3 power rails for convenience. The connections to the power supplies are available as copper pads that can be soldered on directly, or the included power supply breadboard can be soldered on for a solderless connection. Eleven breakouts are provided at the top of the board for common IC package types. Two solderless breadboards can be optionally added to provide a solderless breadboard surface.
Standard screw terminal adapters for easy connectivity
Designed to fit directly on top of the openlogger
Designed to fit directly on top of the openlogger
Specifications
Attribute | Value |
---|---|
Type | Blank Canvas |
Input Voltage | 3.3 V, 5 V, ±12 V |
