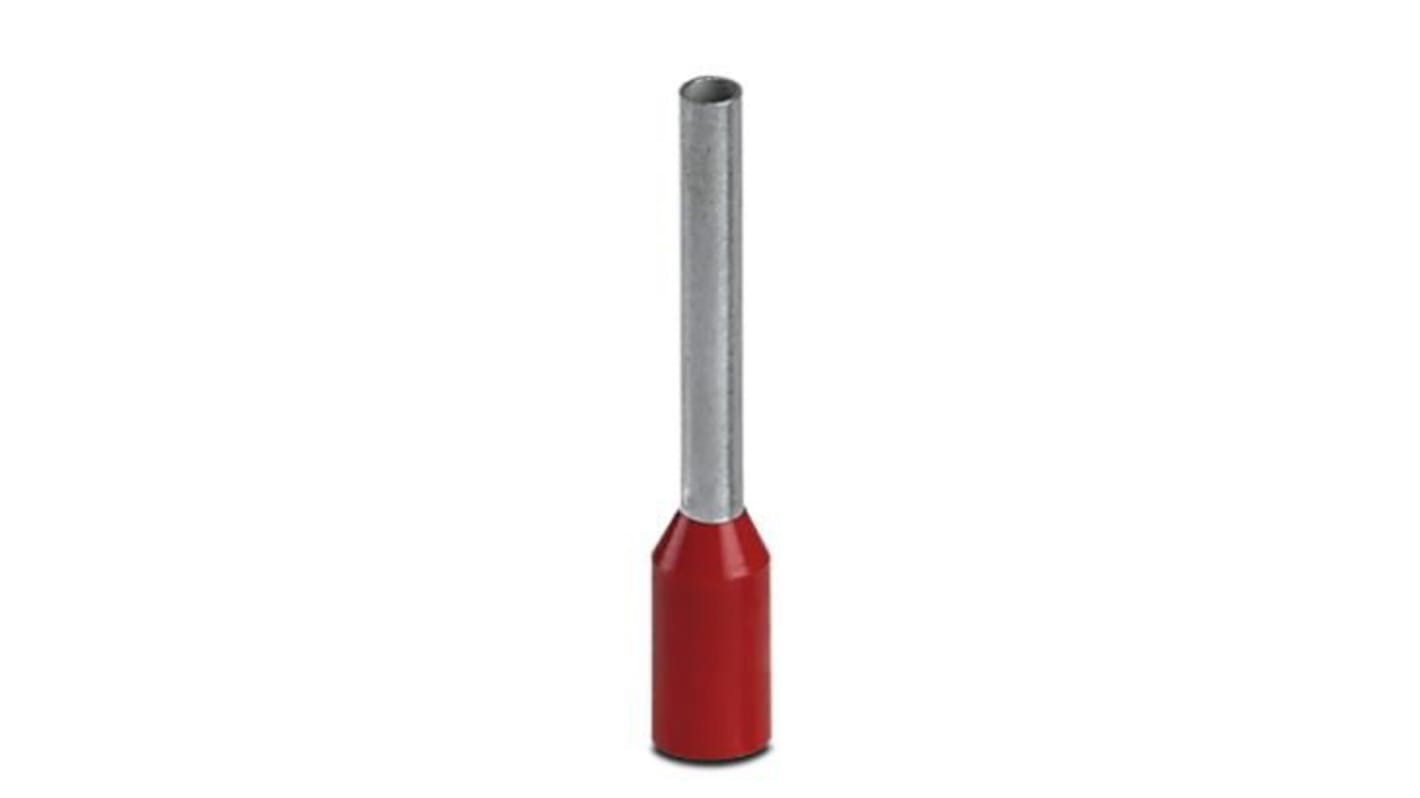

Phoenix Contact, AI 1 -12 RD Insulated Crimp Bootlace Ferrule, 12mm Pin Length, 1.5mm Pin Diameter, Red
- RS Stock No.:
- 186-0172
- Mfr. Part No.:
- 3200674
- Brand:
- Phoenix Contact
Subtotal (1 pack of 100 units)*
£63.30
(exc. VAT)
£76.00
(inc. VAT)
FREE delivery for orders over £50.00
Temporarily out of stock
- 200 unit(s) shipping from 23 October 2025
- Plus 800 unit(s) shipping from 14 November 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 + | £0.633 | £63.30 |
*price indicative
- RS Stock No.:
- 186-0172
- Mfr. Part No.:
- 3200674
- Brand:
- Phoenix Contact
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Pin Diameter | 1.5mm | |
| Number of Entries | 1 | |
| Colour | Red | |
| Pin Length | 12mm | |
| Insulation | Insulated | |
| Maximum Wire Size AWG | 18AWG | |
| Overall Length | 18mm | |
| Series | AI 1 -12 RD | |
Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Pin Diameter 1.5mm | ||
Number of Entries 1 | ||
Colour Red | ||
Pin Length 12mm | ||
Insulation Insulated | ||
Maximum Wire Size AWG 18AWG | ||
Overall Length 18mm | ||
Series AI 1 -12 RD | ||
- COO (Country of Origin):
- DE
Phoenix Contact Crimp Bootlace Ferrule, 18AWG Maximun Conductor Cross Section, Galvanic Coating - AI 1 -12 RD - 3200674
Get a grip on stranded wires and achieve a safe electrical connection using this crimp bootlace ferrule from Phoenix Contact. It combines a metal tube that holds the conductors with an insulating collar that holds the rest of the cable, ensuring safe handling.
The tube is made of durable Cu-DHP – a type of oxygen-free copper with some phosphorus – that holds its own against mechanical impact, making it suitable for harsh environments. Galvanic coating increases its corrosion resistance, giving you reliable long-term performance. What's more, the unit's free of silicone and halogens, so it won't emit toxic fumes in the event of a fire.
This ferrule accommodates wire sizes up to 18AWG, so it's a versatile connection solution. Its red sleeve makes it easy to pick out on a colour-coded network. Making connections is a breeze, as a simple crimping tool gets the job done. You'll find connectors like this used in the consumer electronics industry.
The tube is made of durable Cu-DHP – a type of oxygen-free copper with some phosphorus – that holds its own against mechanical impact, making it suitable for harsh environments. Galvanic coating increases its corrosion resistance, giving you reliable long-term performance. What's more, the unit's free of silicone and halogens, so it won't emit toxic fumes in the event of a fire.
This ferrule accommodates wire sizes up to 18AWG, so it's a versatile connection solution. Its red sleeve makes it easy to pick out on a colour-coded network. Making connections is a breeze, as a simple crimping tool gets the job done. You'll find connectors like this used in the consumer electronics industry.
• UL 94-HB rating shows that it doesn't easily burn in a flame, making it useful in sensitive work areas
• Wide operating temperature range between -40°C and +105°C (under no-load conditions) for use in challenging conditions
• Wide operating temperature range between -40°C and +105°C (under no-load conditions) for use in challenging conditions
Ferrule, sleeve length: 12 mm, length: 18 mm, color: red
