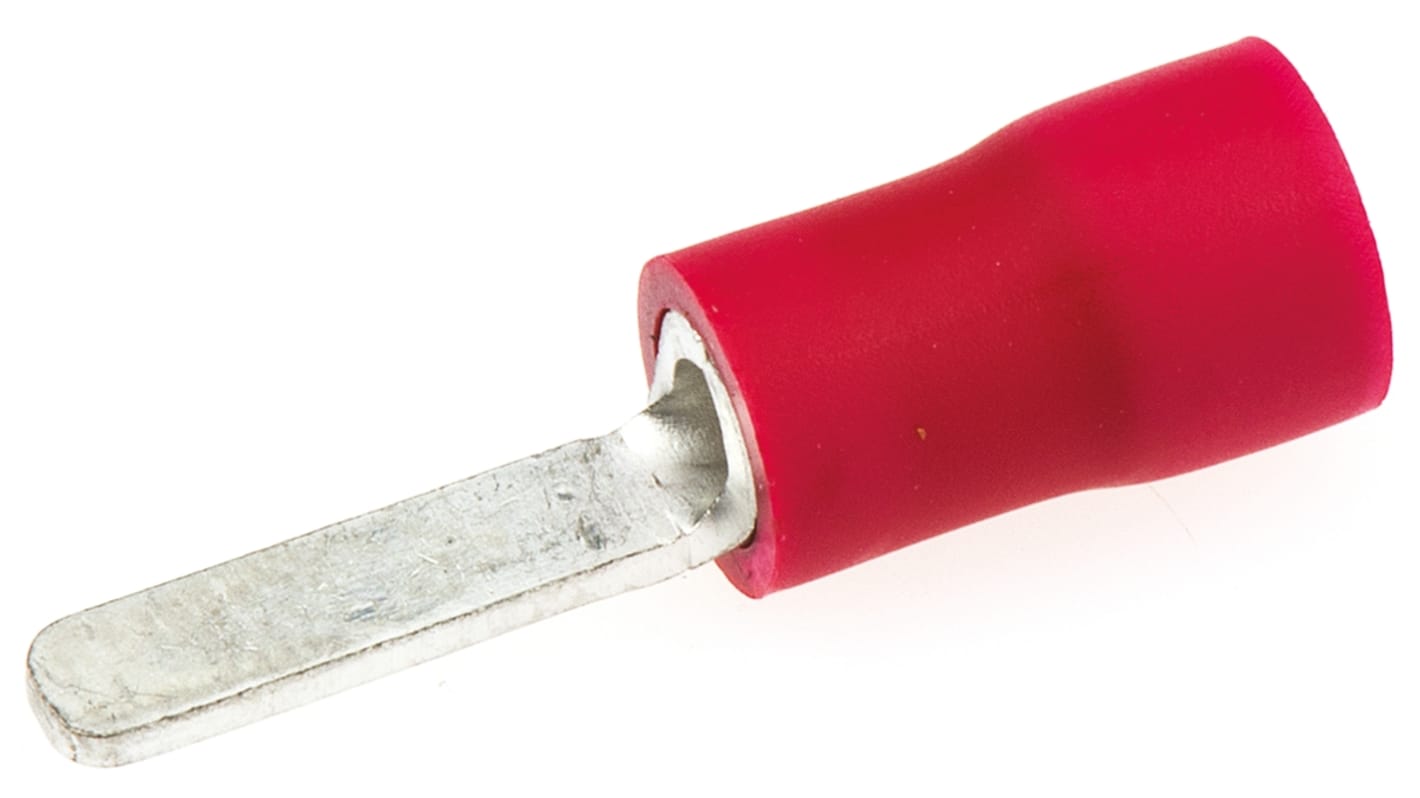

JST , FV Insulated Crimp Blade Terminal 10mm Blade Length, 0.25mm² to 1.65mm², 22AWG to 16AWG, Red
- RS Stock No.:
- 688-1195
- Mfr. Part No.:
- FVWS1.25-AF2.3B(LF)
- Brand:
- JST
Bulk discount available
Subtotal (1 pack of 100 units)*
£16.60
(exc. VAT)
£19.90
(inc. VAT)
FREE delivery for orders over £50.00
In Stock
- 300 unit(s) ready to ship
- Plus 200 unit(s) shipping from 27 October 2025
- Plus 6,000 unit(s) shipping from 03 December 2025
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 900 | £0.166 | £16.60 |
| 1000 - 2400 | £0.15 | £15.00 |
| 2500 - 4900 | £0.137 | £13.70 |
| 5000 - 9900 | £0.125 | £12.50 |
| 10000 + | £0.117 | £11.70 |
*price indicative
- RS Stock No.:
- 688-1195
- Mfr. Part No.:
- FVWS1.25-AF2.3B(LF)
- Brand:
- JST
Specifications
Technical Reference
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Gender | Male | |
| Series | FV | |
| Insulation | Insulated | |
| Insulation Material | Vinyl | |
| Minimum Wire Size mm² | 0.25mm² | |
| Shrouded/Unshrouded | Unshrouded | |
| Maximum Wire Size mm² | 1.65mm² | |
| Minimum Wire Size AWG | 22AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Overall Length | 19.2mm | |
| Inner Diameter | 4mm | |
| Blade Length | 10mm | |
| Blade Width | 2.3mm | |
| Blade Thickness | 0.8mm | |
| Hooked | No | |
| Colour | Red | |
Select all | ||
|---|---|---|
Brand JST | ||
Gender Male | ||
Series FV | ||
Insulation Insulated | ||
Insulation Material Vinyl | ||
Minimum Wire Size mm² 0.25mm² | ||
Shrouded/Unshrouded Unshrouded | ||
Maximum Wire Size mm² 1.65mm² | ||
Minimum Wire Size AWG 22AWG | ||
Maximum Wire Size AWG 16AWG | ||
Overall Length 19.2mm | ||
Inner Diameter 4mm | ||
Blade Length 10mm | ||
Blade Width 2.3mm | ||
Blade Thickness 0.8mm | ||
Hooked No | ||
Colour Red | ||
- COO (Country of Origin):
- JP
JST Insulated Crimp Blade Terminals
A range of insulated crimp blade terminals suitable for a variety of wire size ranges.
Insulated crimp blade terminals with part number prefix 'FVWS' have a butted seam and flared vinyl insulation
Insulated crimp blade terminals with part number prefix 'FVDWS' have a butted seam, copper sleeve and vinyl insulation
Insulated crimp blade terminals with part number prefix 'FVWS' have a butted seam and flared vinyl insulation
Insulated crimp blade terminals with part number prefix 'FVDWS' have a butted seam, copper sleeve and vinyl insulation
JST Insulated Crimp Terminals
